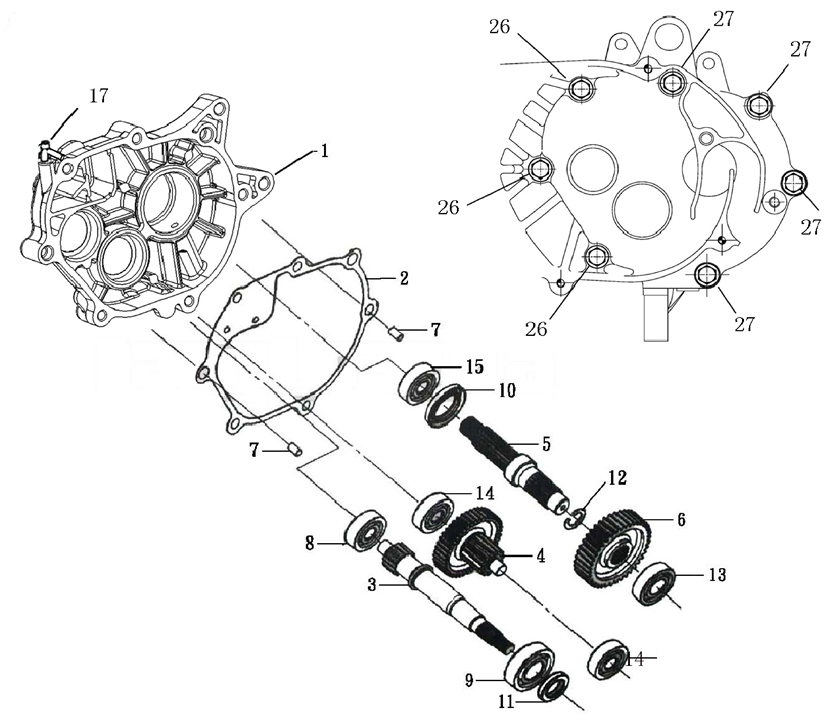

Diablo 125 (LJ125T-8M)

Ref
Code
Part Name
Qty
Price
1
GRBC006
125cc Scooter Gearbox Casing LJ1P52QMI for LJ125T-8M
GRBC006
1
£28.49
View
2
GSKGB004
125cc Scooter Gearbox Gasket LJ1P52QMI
GSKGB004
1
£7.49
View
3
INSH010
125cc Scooter Gearbox Input Shaft LJ1P52QMI
INSH010
1
£17.49
View
4
GRRD037
Gearbox Reduction Gear LJ1P52QMI
GRRD037
1
£25.99
View
5
OTSH014
Gearbox Output Shaft LJ1P52QMI
OTSH014
1
£17.49
View
6
GRFD007
Final Drive Gear LJ1P52QMI
GRFD007
1
£15.99
View
7
DWL003
Engine Dowel 10 x 4mm
DWL003
1
£3.49
View
8, 14
BRG153
Open Bearing 6301 37 x 12 x 12mm
BRG153
1
£7.49
View
9
BRG150
Open Bearing 6204 P5 47 x 20 x 14mm
BRG150
1
£9.49
View
10
OLSL077
Oil Seal 32 x 47 x 7mm
OLSL077
1
£3.99
View
11
OLSL036
Oil Seal 20 x 32 x 6mm
OLSL036
1
£6.49
View
13
BRG149
Open Bearing 6203 P5 17 x 40 x 12mm
BRG149
1
£6.49
View
15
BRG110
Single Wheel Bearing 6204 2RS 20 x 47 x 14mm
BRG110
1
£5.49
View
17
PPB024
Cam Cover Breather Outlet
PPB024
1
£2.49
View
