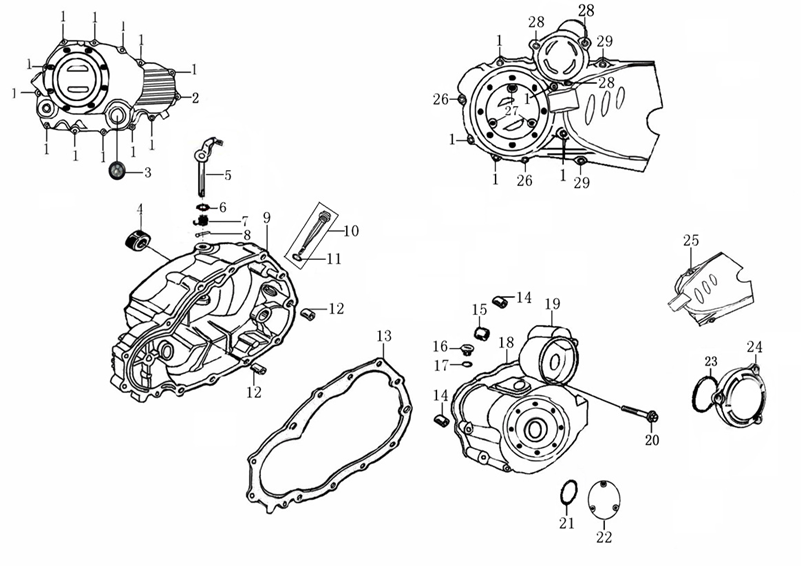

Falcon 125 (XGJ125-27B)

Ref
Code
Part Name
Qty
Price
1
BLT079
Flanged Hex Bolt with Shank M6 x 40mm
BLT079
17
£5.49
View
2
BLT080
Hex Bolt M6 x 45mm
BLT080
1
£2.49
View
3
STGL002
Sight Glass 25mm
STGL002
1
£5.49
View
5, 6
CLAA016
Clutch Actuator Arm
CLAA016
1
£5.99
View
7
SPNG250
Clutch Arm Spring
SPNG250
1
£3.49
View
8
SPLPN021
Clutch Actuator Arm Roll Pin ZY125
SPLPN021
1
£1.99
View
12
DWL001
Engine Dowel 8 x 14mm
DWL001
2
£4.99
View
13
GSKCR025
Right Crankcase (Clutch) Cover Gasket for SK125-22 E4
GSKCR025
1
£7.49
View
14
DWL003
Engine Dowel 10 x 4mm
DWL003
2
£3.49
View
15
BRGN002
Needle Bearing HK1010 14 x 10mm
BRGN002
1
£4.99
View
16
ENGTP005
Black Engine Timing Check Plug ZY125
ENGTP005
1
£2.99
View
17
ORNG041
O-Ring 13.2 x 18.5 x 2.65mm
ORNG041
1
£3.49
View
18
GSKCL002
Left Crankcase Cover Gasket 156FMI 157FMI
GSKCL002
1
£5.49
View
20
BLT198
Flanged Hex Bolt M6 x 25mm
BLT198
1
£4.99
View
21
ORNG040
O-Ring 27.4 x 32.7 x 2.65mm
ORNG040
1
£3.49
View
22
CRCP022
Large Crankcase Cover Plug
CRCP022
1
£6.99
View
24
ENGCL080
Reduction Gear Cover
ENGCL080
1
£8.99
View
28
BLT070
Flanged Hex Bolt Inlet Manifold Bolt M6 x 20mm
BLT070
3
£5.49
View
