Model
Search parts for your vehicle
- Return to bike

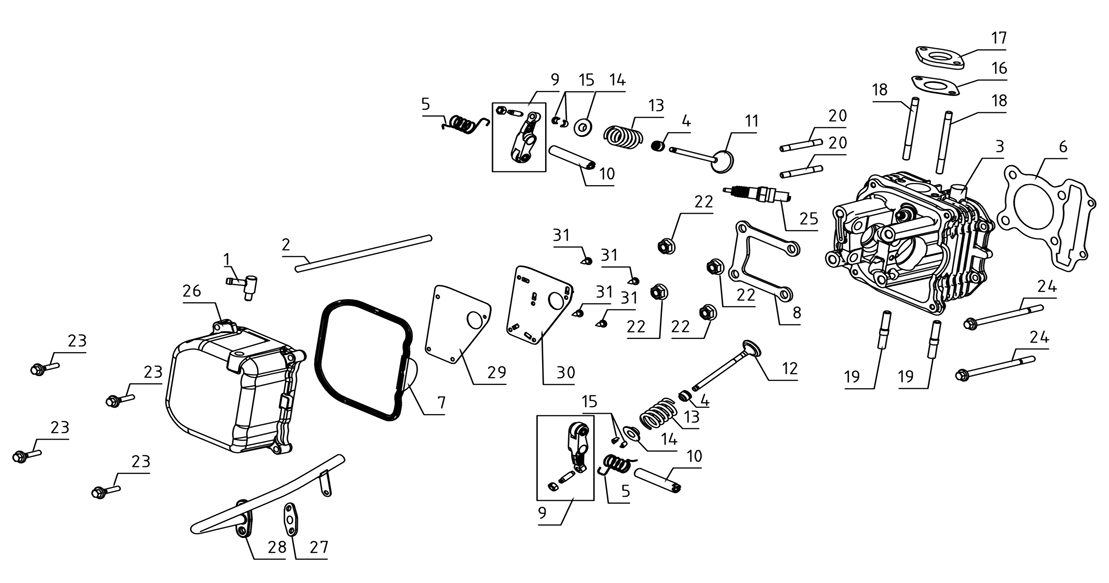

Diablo 125 Euro 5 (LJ125T-9M-E5)

Ref
Code
Part Name
Qty
Price
1
DWL021
Cam Cover Breather Outlet for LJ50QT-N, LJ125T-X-E5
DWL021
1
£3.49
View
3
CYLH045
125cc Scooter Cylinder Head LJ1P52QMI
CYLH045
1
£58.49
View
4
VLVOS002
50/100/125cc Valve Stem Oil Seal
VLVOS002
1
£3.49
View
5
VLVSR010
125cc Scooter Inlet/Exhaust Valve Spring Retainer LJ1P52QMI
VLVSR010
1
£4.49
View
6
GSKH030
125cc Scooter Head Gasket LJ1P52QMI
GSKH030
1
£5.49
View
7
GSKRC035
125cc Scooter Rocker Cover Gasket LJ1P52QMI
GSKRC035
1
£11.99
View
8
WSH84
Cylinder Head Studs Washer Cylinder Head Studs for LJ125T-8M-E4
WSH84
1
£4.99
View
9
RKA024
Rocker Arm LJ1P52QMI
RKA024
1
£7.99
View
10
RKAS036
Rocker Arm Shaft
RKAS036
1
£7.49
View
11
VLVIN024
125cc Scooter Inlet Valve LJ1P52QMI
VLVIN024
1
£8.99
View
12
VLVEX025
125cc Scooter Exhaust Valve LJ1P52QMI
VLVEX025
1
£8.99
View
13
VLVS018
Valve Spring LJ1P52QMI
VLVS018
1
£9.49
View
14
VLVSR013
Inlet/Exhaust Valve Spring Retainer for LJ125T-8M-E4
VLVSR013
1
£1.99
View
15
VLVC019
50cc Scooter Inlet/Exhaust Valve Collets 139QMA 139QMB
VLVC019
1
£5.49
View
16
GSKIM001
Inlet Manifold Gasket
GSKIM001
1
£4.99
View
17
MNFS018
Inlet Manifold Spacer 152QMI LJ1P52QMI
MNFS018
1
£6.49
View
18
STDIM002
Inlet Manifold Studs M6 x 72.5mm for LJ125T-8M-E4
STDIM002
1
£3.49
View
19
STD020
Stud M8 x 45MM
STD020
1
£6.49
View
20
STD021
Stud M6 x 26mm
STD021
1
£1.99
View
22
NUT121
LJ1P52QMI Rocker Assembly Flanged Nut M8 x 10mm
NUT121
1
£1.99
View
23
BLTCH005
Cylinder Head Bolt M6 x 28mm
BLTCH005
1
£3.49
View
24
BLT093
LJ1P52QMI Flanged Hex Bolt with Shank Cylinder Bolt M6 x 95mm
BLT093
1
£0.99
View
25
SPRK008
NGK CR7HSA Spark Plug 4549
SPRK008
1
£8.99
View
26
RKC064
Rocker Cover/Camshaft Cover for LJ125T-9M-E5, LJ125T-X-E5
RKC064
1
£13.49
View
27
GSKEGR006
Emission Valve Gasket for HJ125-J,HJ125-K
GSKEGR006
1
£3.99
View
28
EGRPP038
Emission Valve Pipe Metal for LJ125T-8M
EGRPP038
1
£4.99
View
28
WSH87
EGR Blanking Plate for LJ125T-8M-E4, LJ125T-V, LJ125T-16
WSH87
1
£4.99
View
30
GSKOP012
Rocker Cover Breather Plate for LJ125T-X-E5
GSKOP012
1
£2.49
View
