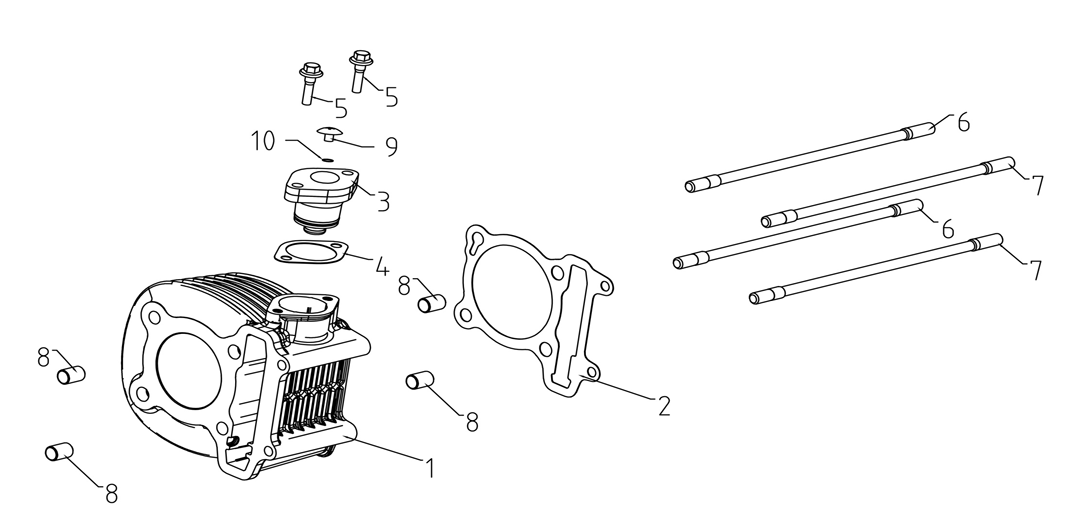

Diablo 125 Euro 5 (LJ125T-9M-E5)

Ref
Code
Part Name
Qty
Price
1
CYL034
125cc Scooter Cylinder LJ1P52QMI
CYL034
1
£28.49
View
2
GSKB019
125cc Scooter Base Gasket LJ1P52QMI
GSKB019
1
£4.99
View
3
CMCT022
Cam Chain Tensioner for LJ125T-8M-E4
CMCT022
1
£5.49
View
4
GSKCT005
125cc Scooter Cam Chain Tensioner Gasket 152QMI 152QMI-A
GSKCT005
1
£4.99
View
5
BLT199
Tensioner Bolt M6 x 22mm for LJ125T-8M-E4
BLT199
1
£1.99
View
6, 7
STDCH017
Cylinder Head Studs LJ1P52QMI
STDCH017
1
£8.99
View
8
DWL003
Engine Dowel 10 x 4mm
DWL003
1
£3.49
View
9
BLT883
Camchain Tensioner Bolt M6 x 6mm
BLT883
1
£2.49
View
10
ORNG120
Camchain Tensioner O-Ring 9.5x1.5mm
ORNG120
1
£2.49
View
