Model
Search parts for your vehicle
- Return to bike

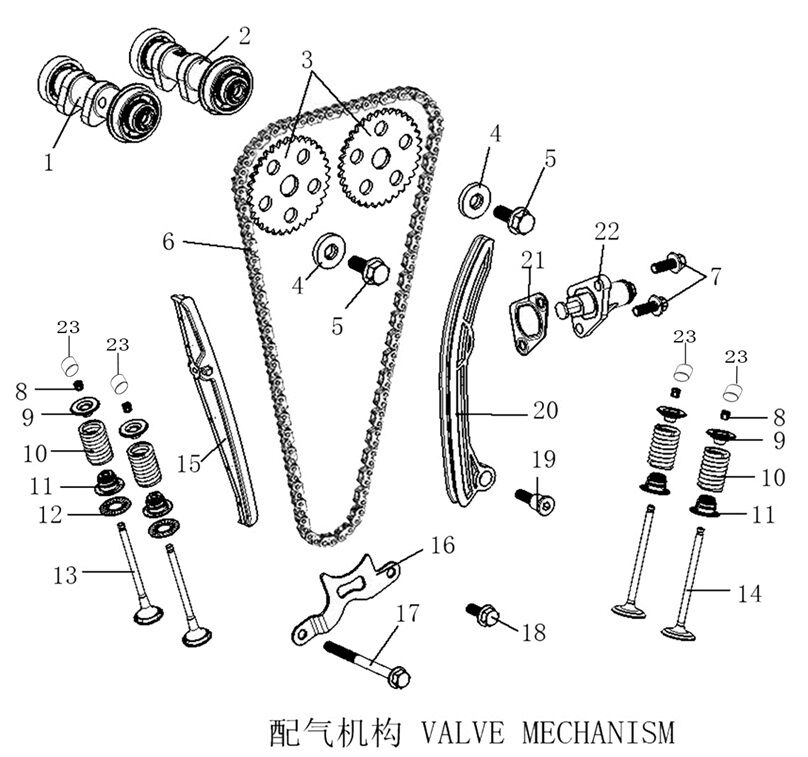

LS-Z Euro 5 (ZS125-39-E5)

Ref
Code
Part Name
Qty
Price
1
CMS039
Exhaust Camshaft
CMS039
1
£21.99
View
2
CMS040
Inlet Camshaft
CMS040
1
£22.49
View
3
CMSPK029
Camshaft Sprocket for ZS125-39-E5
CMSPK029
1
£7.49
View
6
CMCHN059
Timing/Cam Chain for ZS125-39-E5
CMCHN059
1
£11.99
View
7
BLT206
Flanged Hex Bolt M6 x 18mm
BLT206
1
£3.99
View
8
VLVC013
Valve Collets
VLVC013
1
£1.99
View
9
VLVSR023
Inlet/Exhaust Valve Spring Retainer
VLVSR023
1
£3.49
View
10
VLVS037
Valve Spring
VLVS037
1
£3.99
View
11
VLVOS022
Valve Stem Oil Seal
VLVOS022
1
£3.99
View
12
VLVSS021
Exhaust Valve Spring Seat
VLVSS021
1
£0.99
View
13
VLVEX039
Exhaust Valve
VLVEX039
1
£8.99
View
14
VLVIN042
Inlet Valve
VLVIN042
1
£6.49
View
15, 20
CMCG035
Cam Chain Guides
CMCG035
1
£13.49
View
16
BRCKT101
Cam Chain Bracket
BRCKT101
1
£1.99
View
17
BLT191
Flanged Hex Bolt M6 x 70mm
BLT191
1
£3.49
View
18
BLT188
Flanged Hex Bolt M6 x 16mm
BLT188
1
£2.49
View
19
BLT375
Cam Chain Guide Bolt M6 x 25mm
BLT375
1
£1.99
View
21
GSKCT016
Cam Chain Tensioner Gasket
GSKCT016
1
£2.49
View
22
CMCT034
Cam Chain Tensioner
CMCT034
1
£17.49
View
23
VLVC031
Shim Bucket 3.50mm Thickness for ZS125-39-E5
VLVC031
2
£11.99
View
