APSEN006

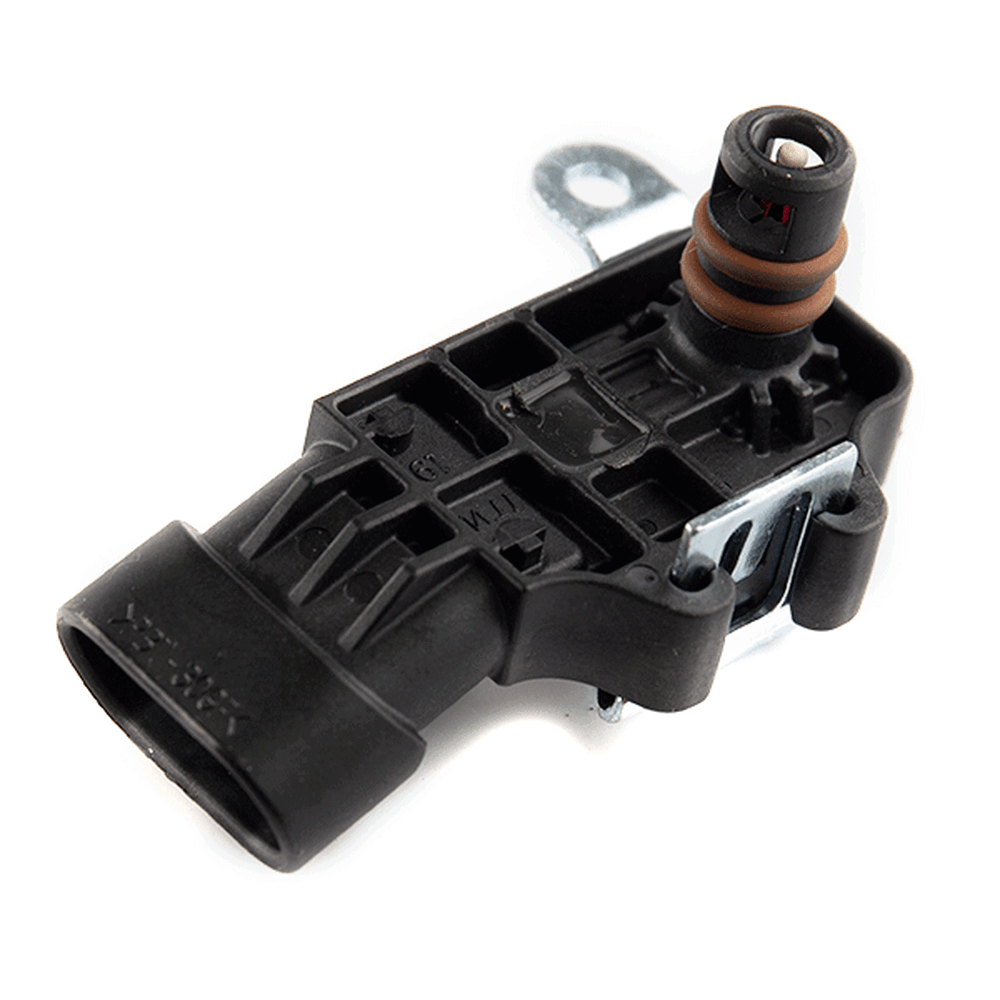

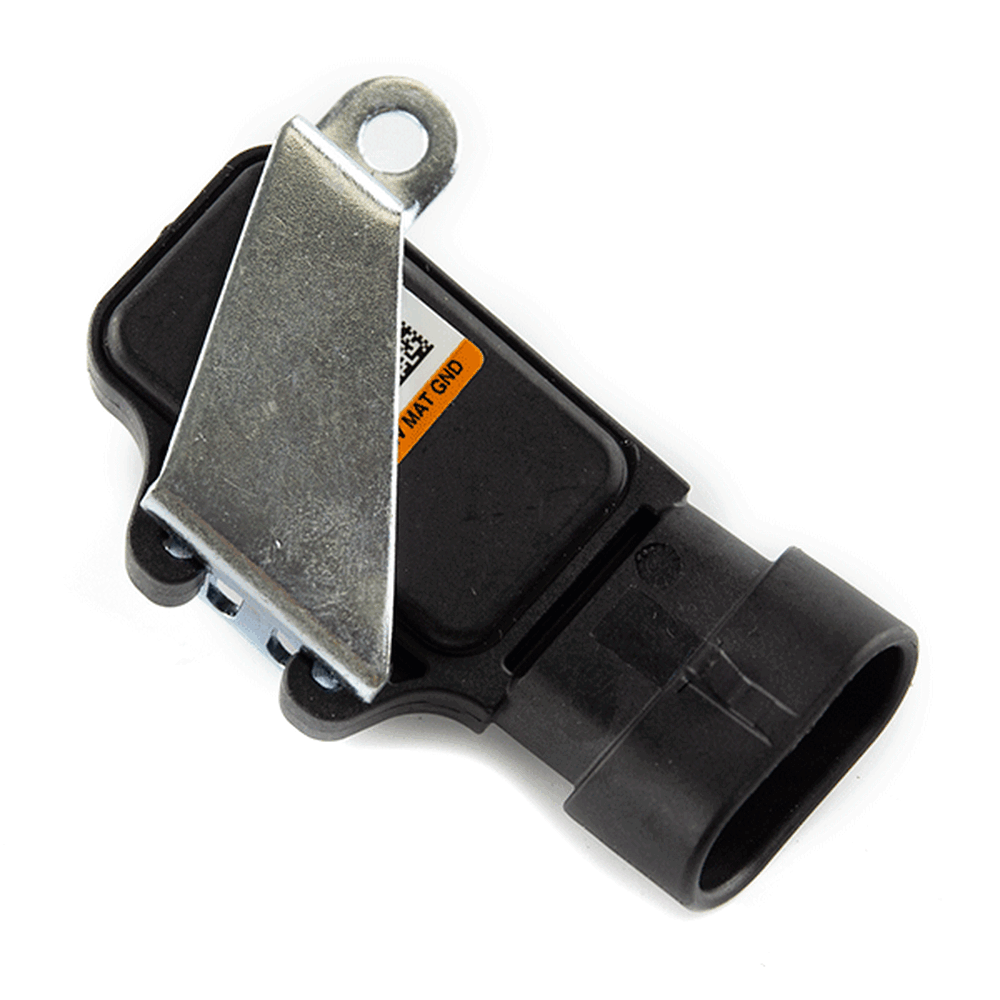

Manifold Absolute Pressure or MAP sensors are a major component of a fuel-injected motorcycle.
MAP sensors are used on most modern engines to monitor manifold pressure (vacuum), sending that information back to the electronic control module (ECM).
PBT-30GF

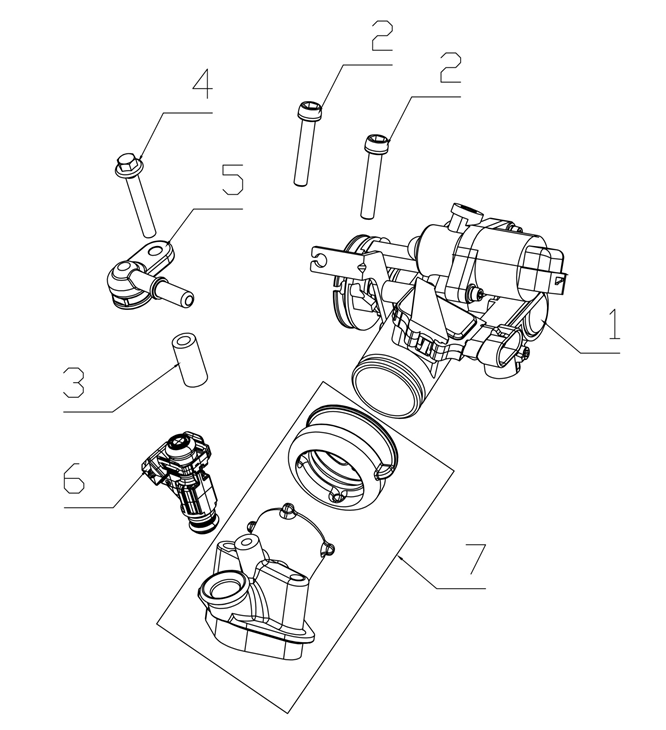

Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram |
Aura 125 [LJ125T-18] | View parts diagram | |
Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
Riviera 125 [LJ125T-V] | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Valiant 125 EFI [XF125R-E4] | View parts diagram | |
Mutt | FAT SABBATH [FATSABBATH] | |
Romet | City 125 [CITY125] | |
