ARFA062

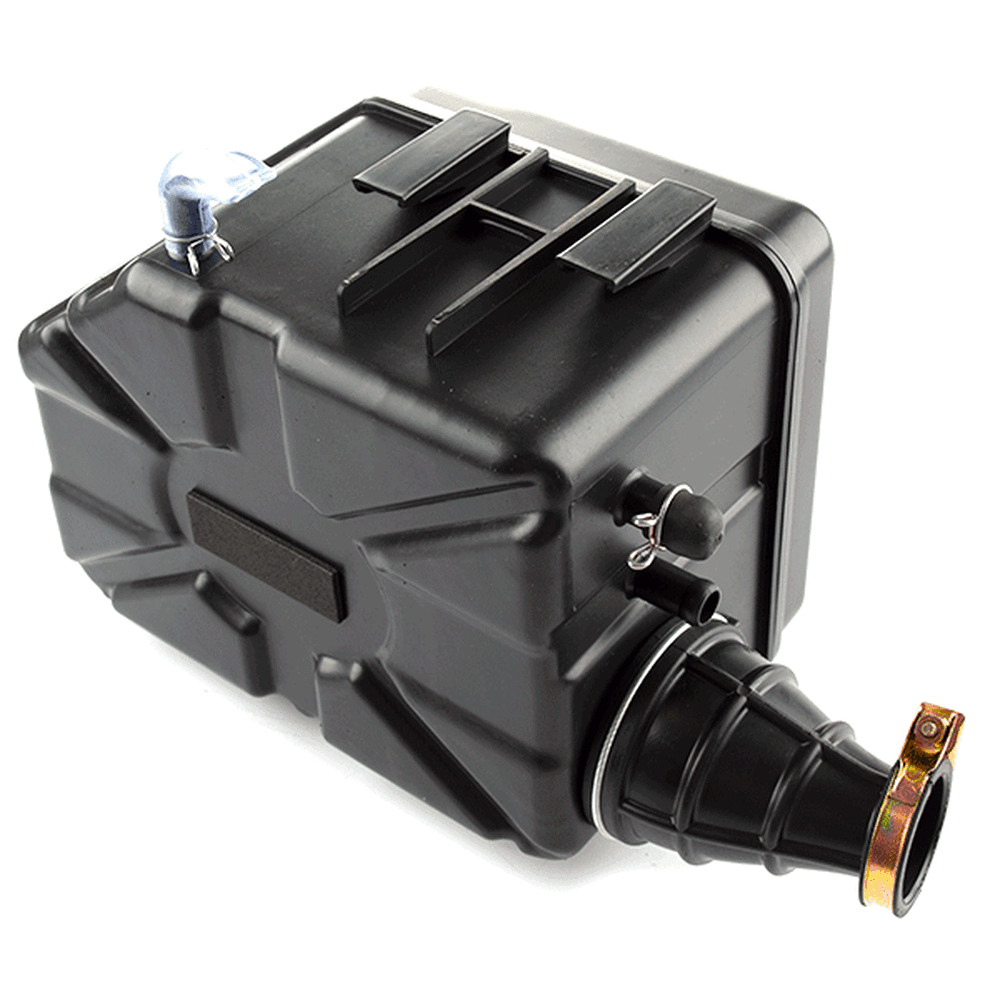

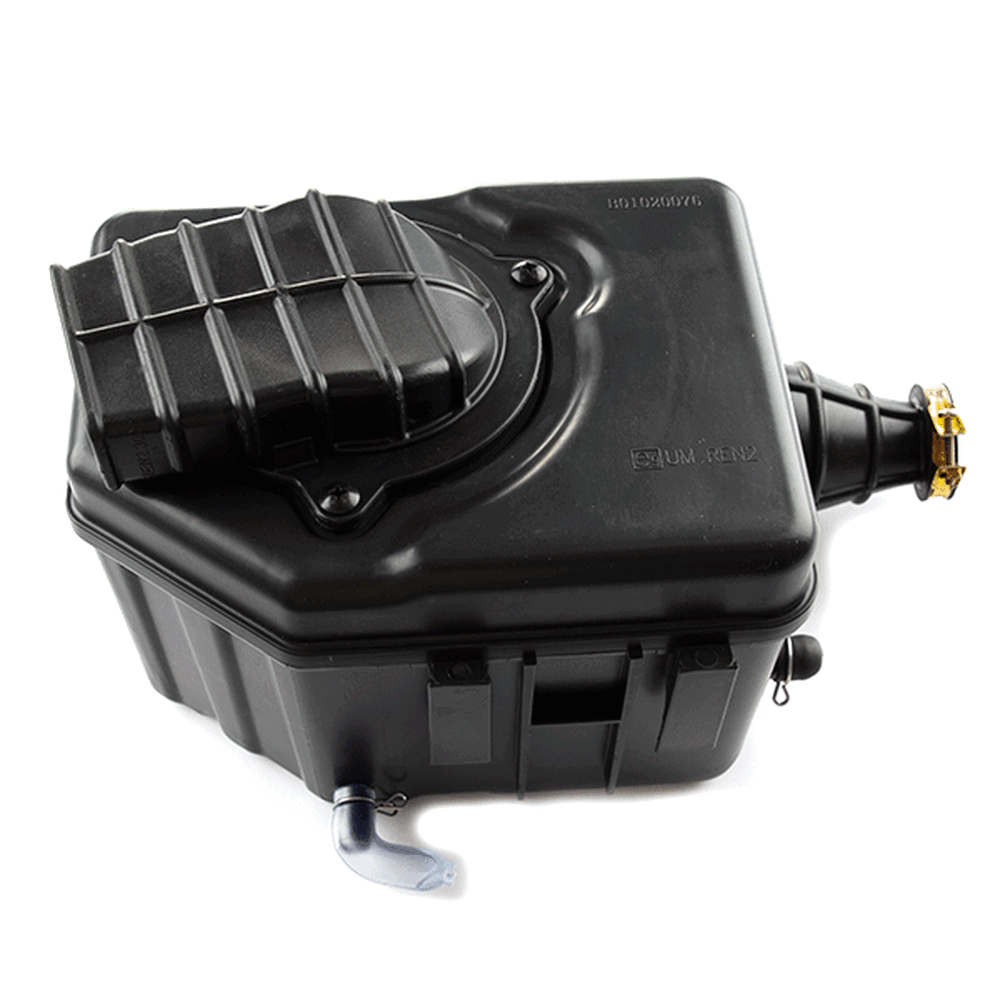

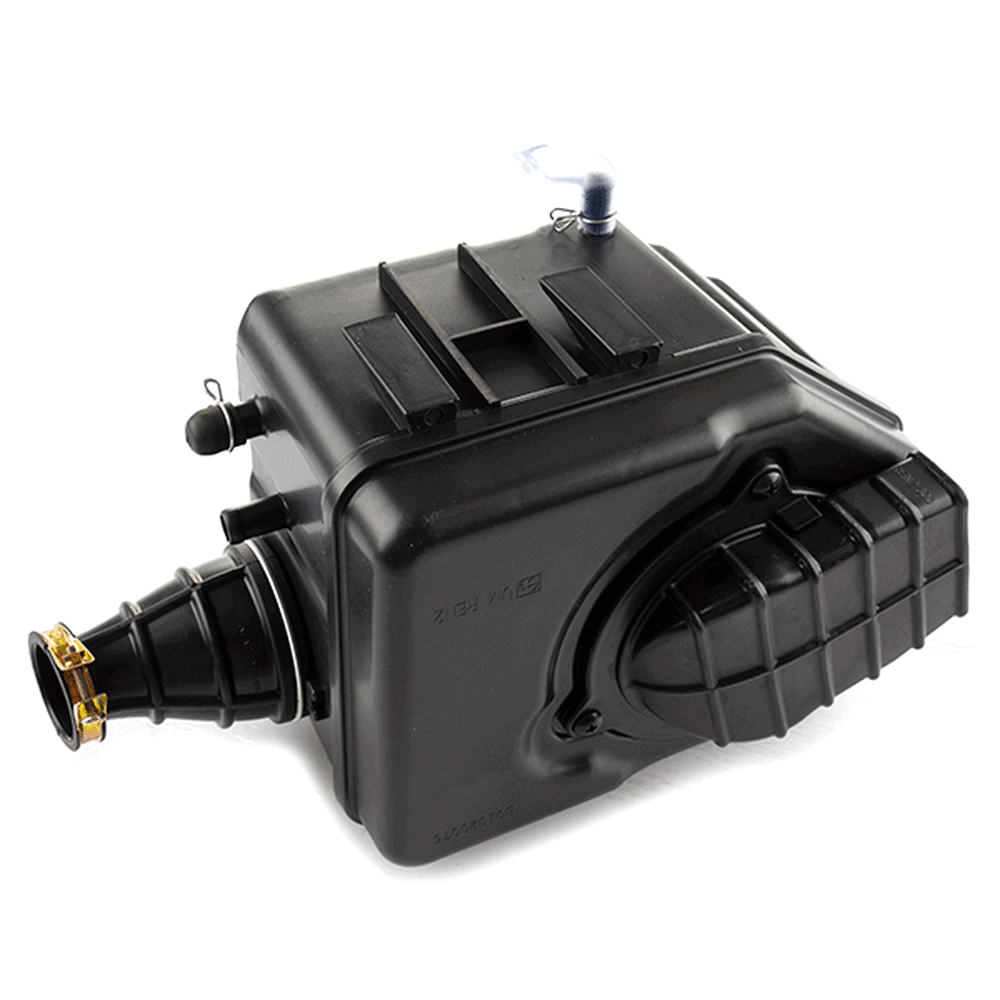

An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.
Manufacturer | Model | Diagram |
---|---|---|
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
Renegade Commando 125 [UM125-CO] | View parts diagram | |
Renegade Sport S 125 [UM125-RS] | View parts diagram | |
Vegas 125 [UM125-VG] | View parts diagram | |
