BLTCH008

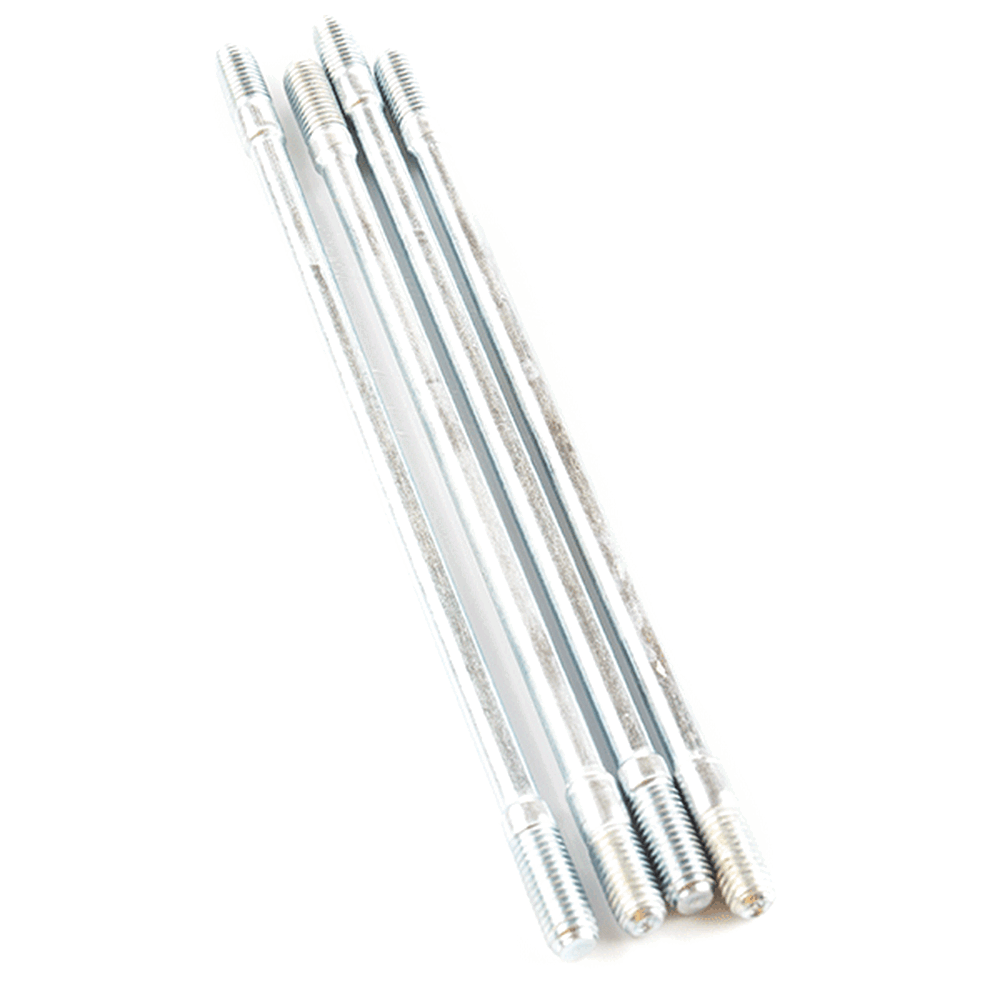

Cylinder-head bolts are the connecting elements between engine block, cylinder-head gasket, and cylinder head. The bolt tightening force is an important factor for the mutual sealing of combustion chamber, lubricant and coolant channels, and the ambient air.

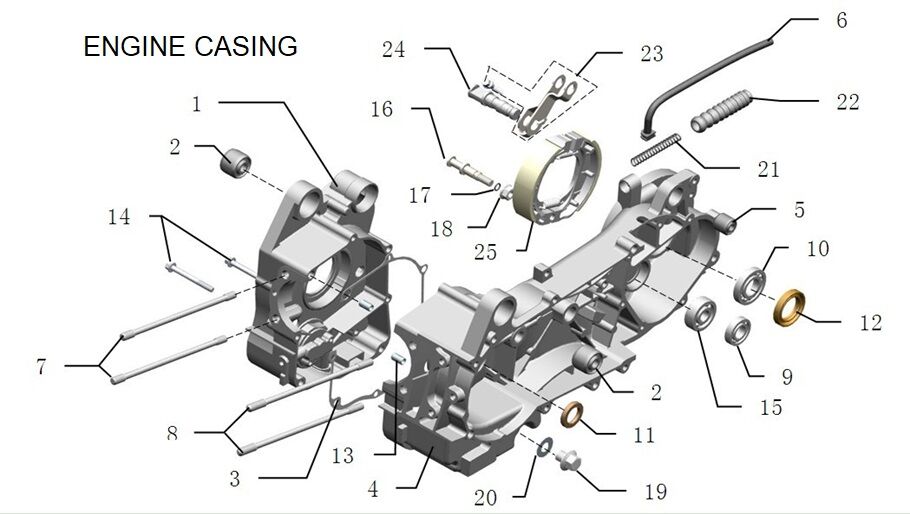

Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | AP1 Euro 5 [CL125T-V2-E5] | View parts diagram |
Apollo 125 Euro 5 [CL125T-E5] | View parts diagram | |
Chieftain 125 [TD125T-15] | View parts diagram | |
Mitt | Mitt 125 GTS [MITT125GTS] | |
Taro | Alex One | |
Alex V2 | ||
