BRCF023

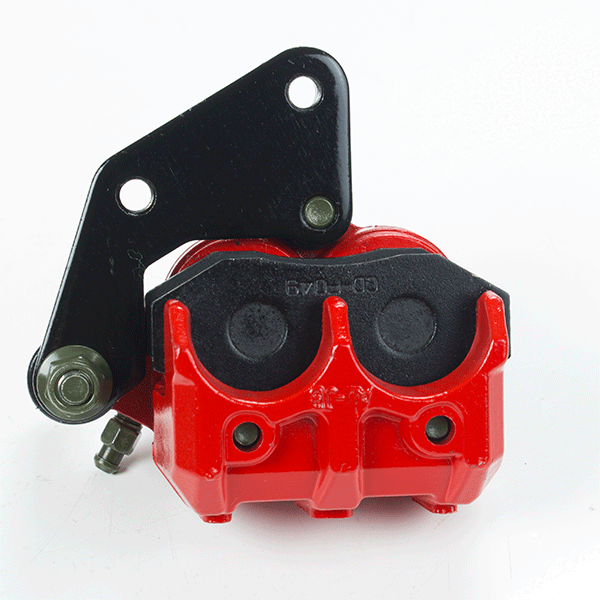

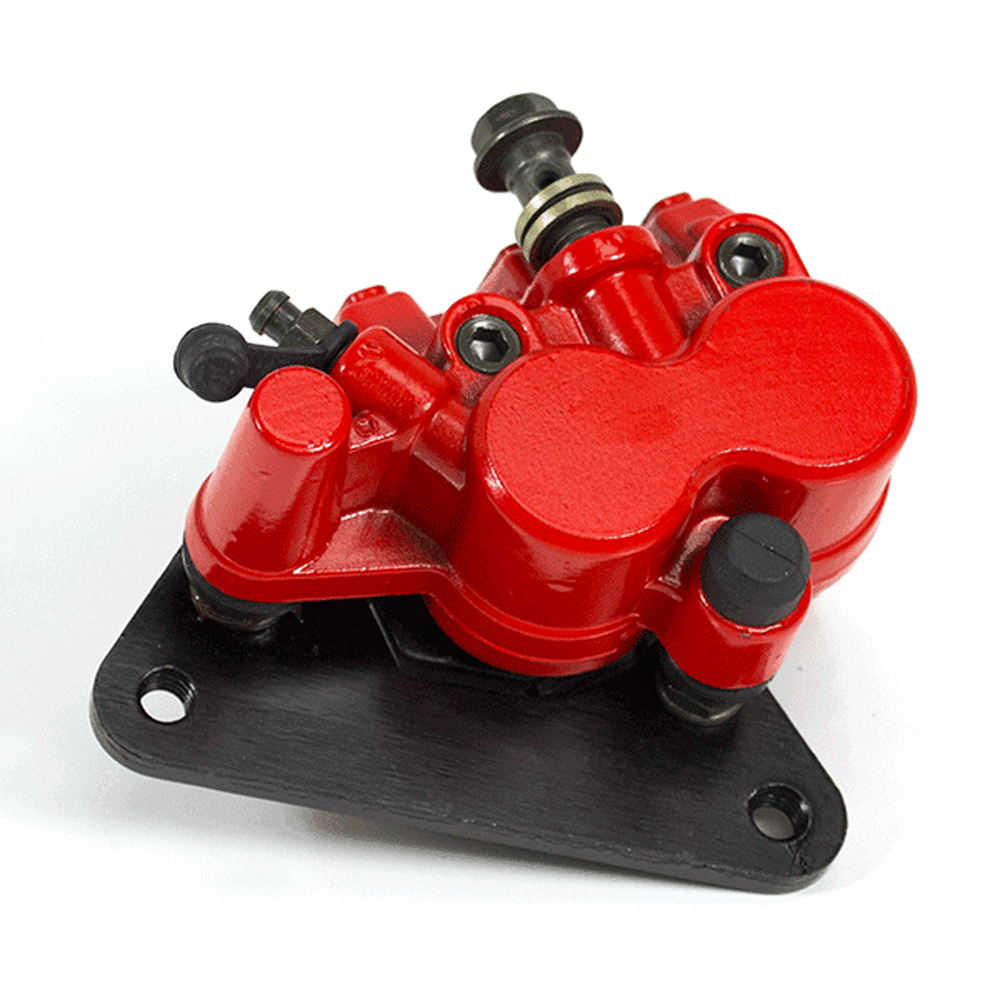

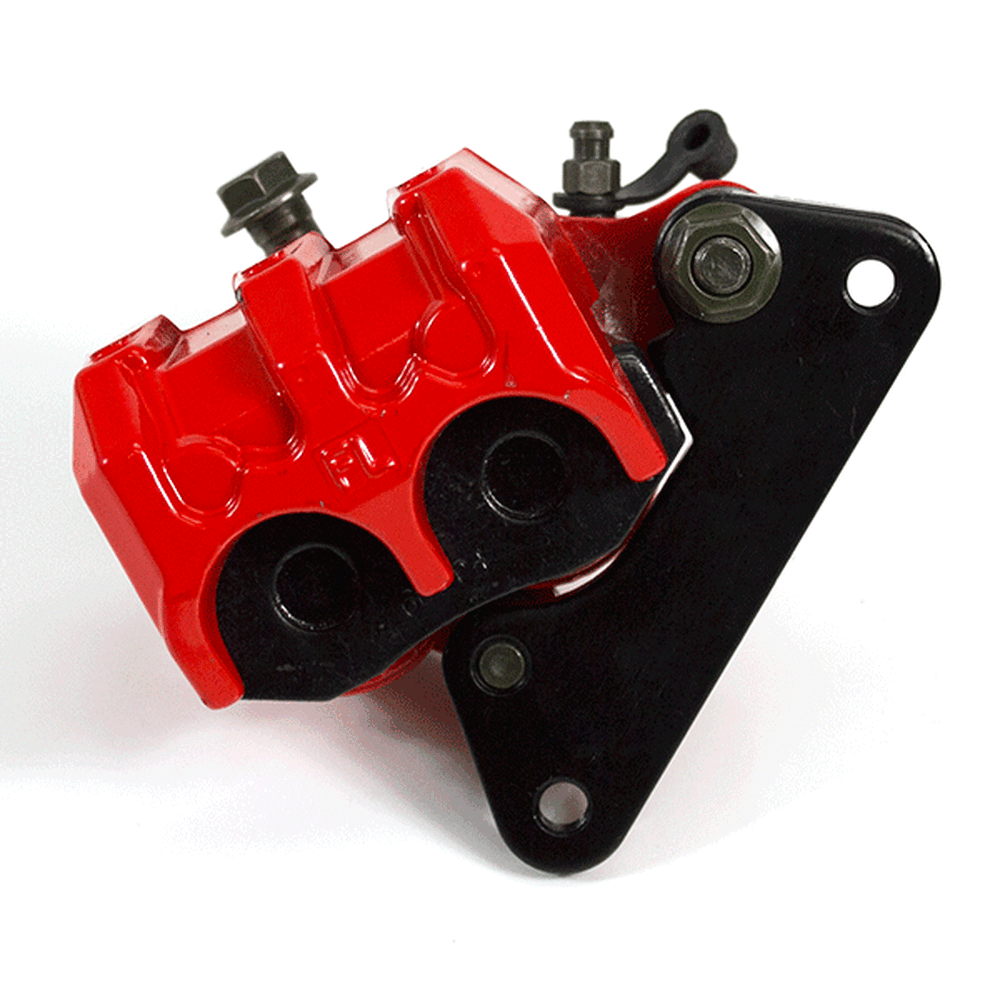

Squeezing the brake lever pushes a hydraulic piston, which sends fluid down the brake lines and into the caliper.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
Diablo 50 [LJ50QT-9M] | View parts diagram | |
Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
Diablo 125 [LJ125T-8M] | View parts diagram | |
Nano 50 [LJ50QT-N] | View parts diagram | |
