BRDF003

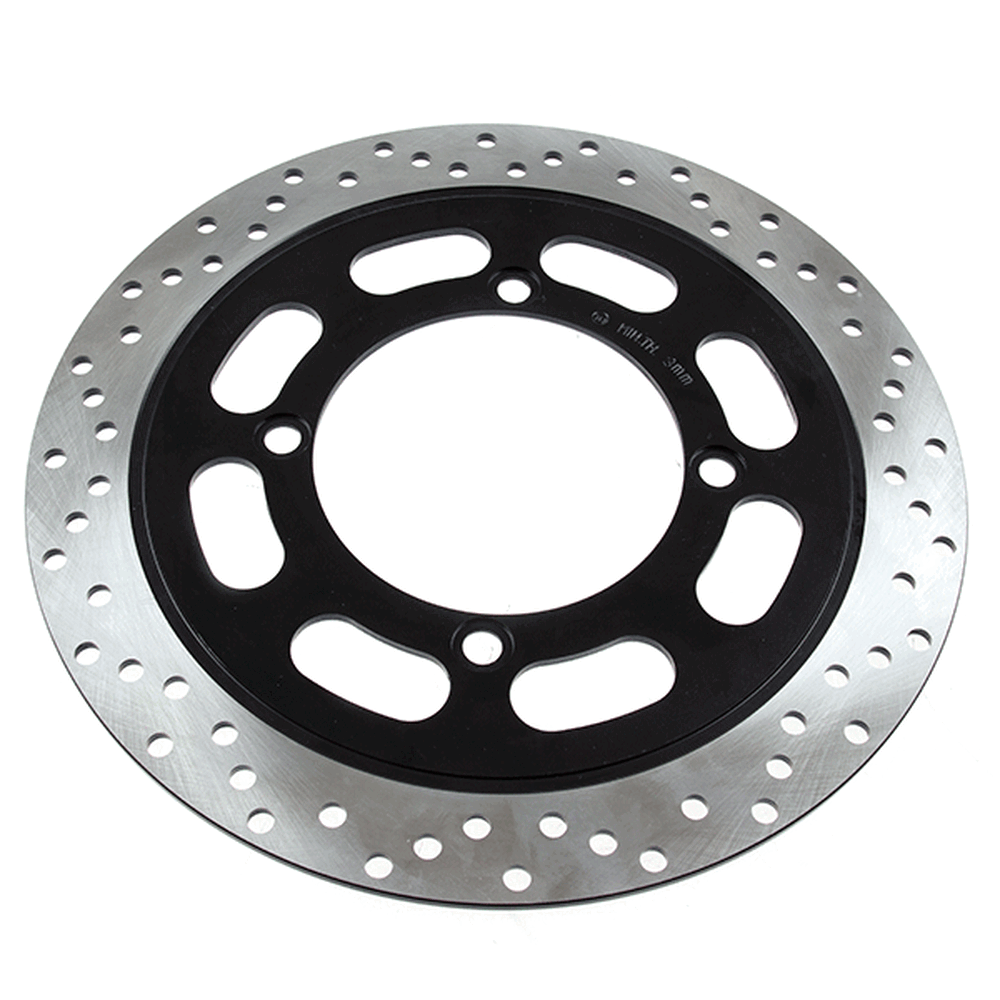

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Tempest 125 Euro 5 [LJ125-9A-E5] | |
Tempest 125 [LJ125-9A] | View parts diagram | |
Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
Romet | SCMB 125 [SCMB125] | |
