BRDF009

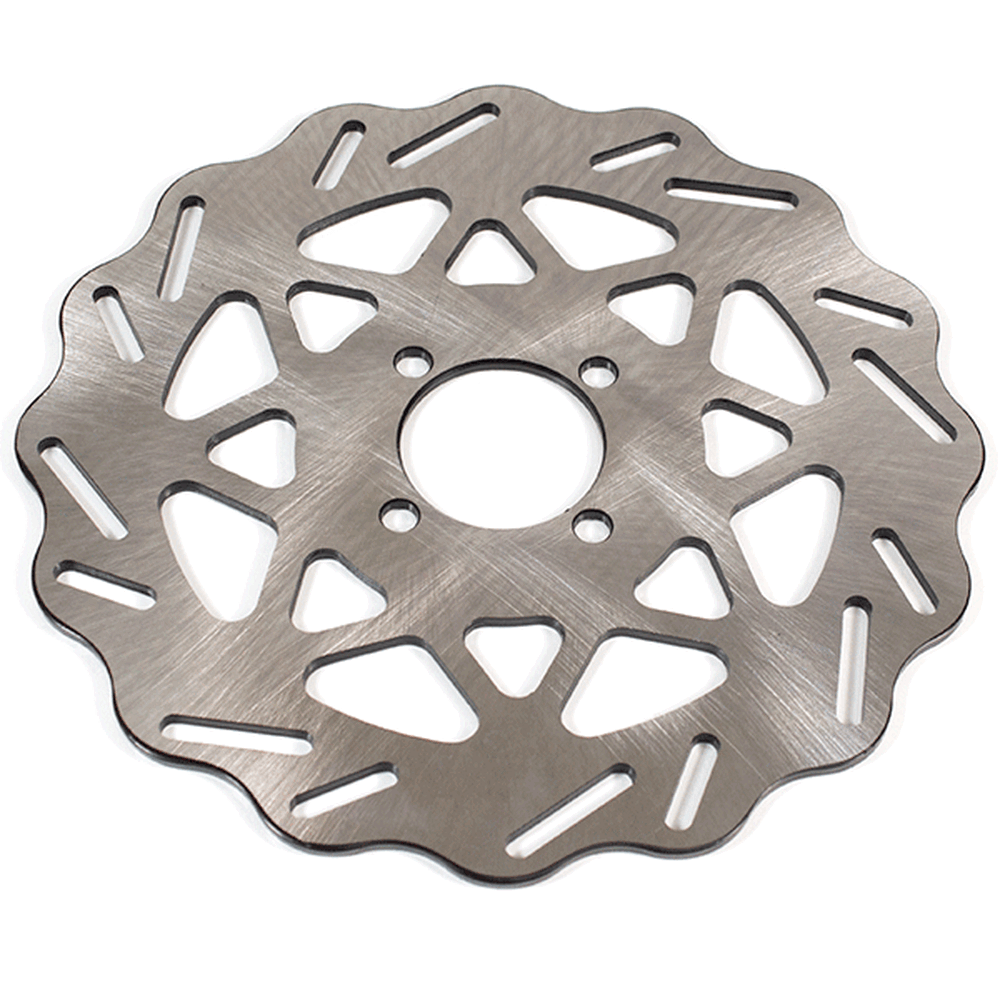

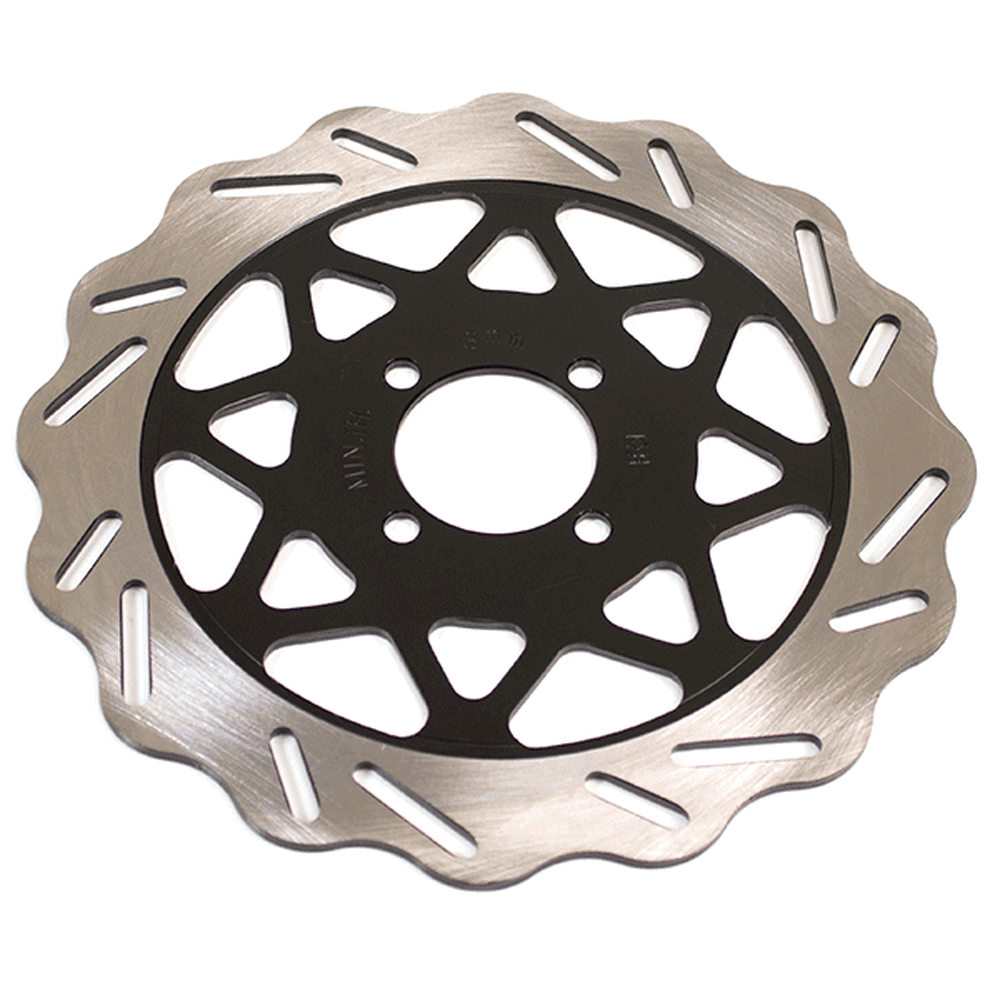

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Venom 125 [SK125-22] | View parts diagram |
Venom EFI [SK125-22-E4] | View parts diagram | |
Venom SE 125 [SK125-22S] | View parts diagram | |
