BRDF018

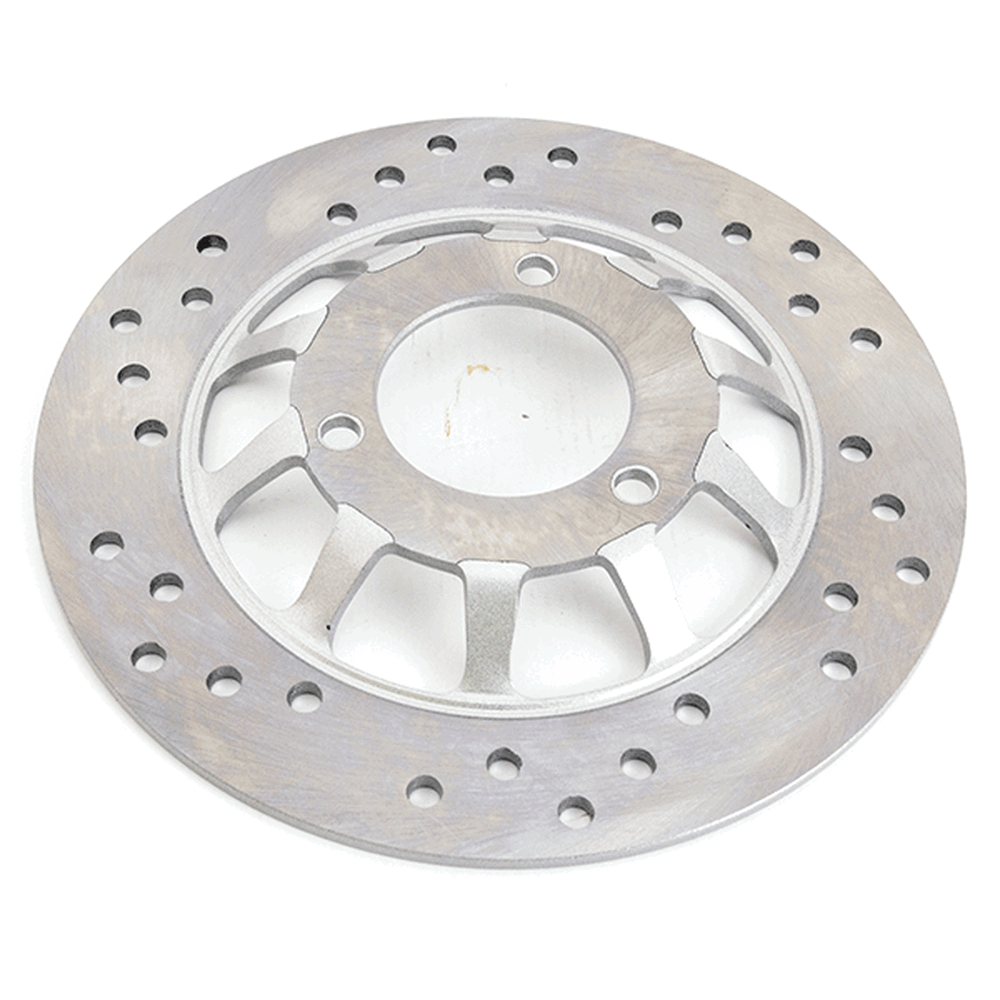

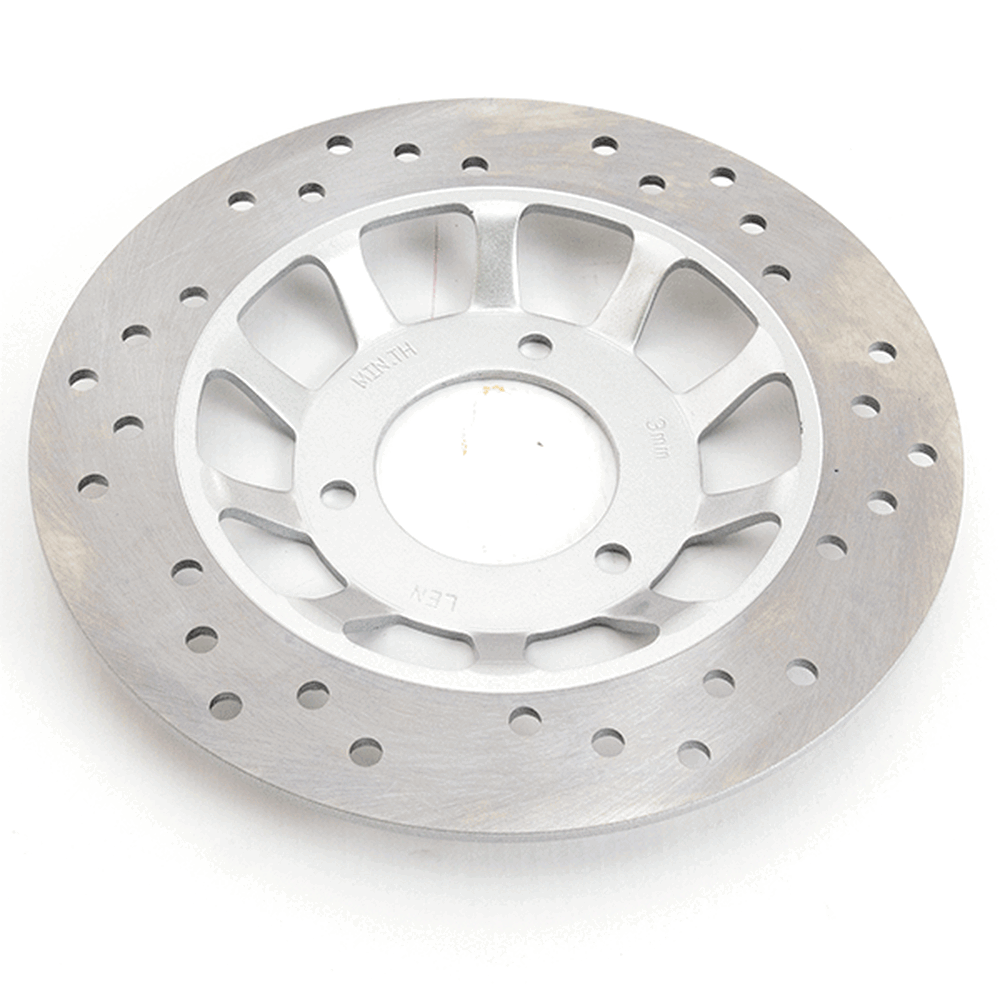

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | FMX 125 EFI [WY125T-108-E4] | View parts diagram |
Titan 125 Euro 5 [ZN125T-8F-E5] | View parts diagram | |
Titan 125 [ZN125T-8F] | View parts diagram | |
Romet | RXL 125 [RXL125] | |
Sinnis | Harrier EFI [ZN125T-22E] | |
Shuttle 125 EFI [ZN125T-7S] | ||
