BRDF111

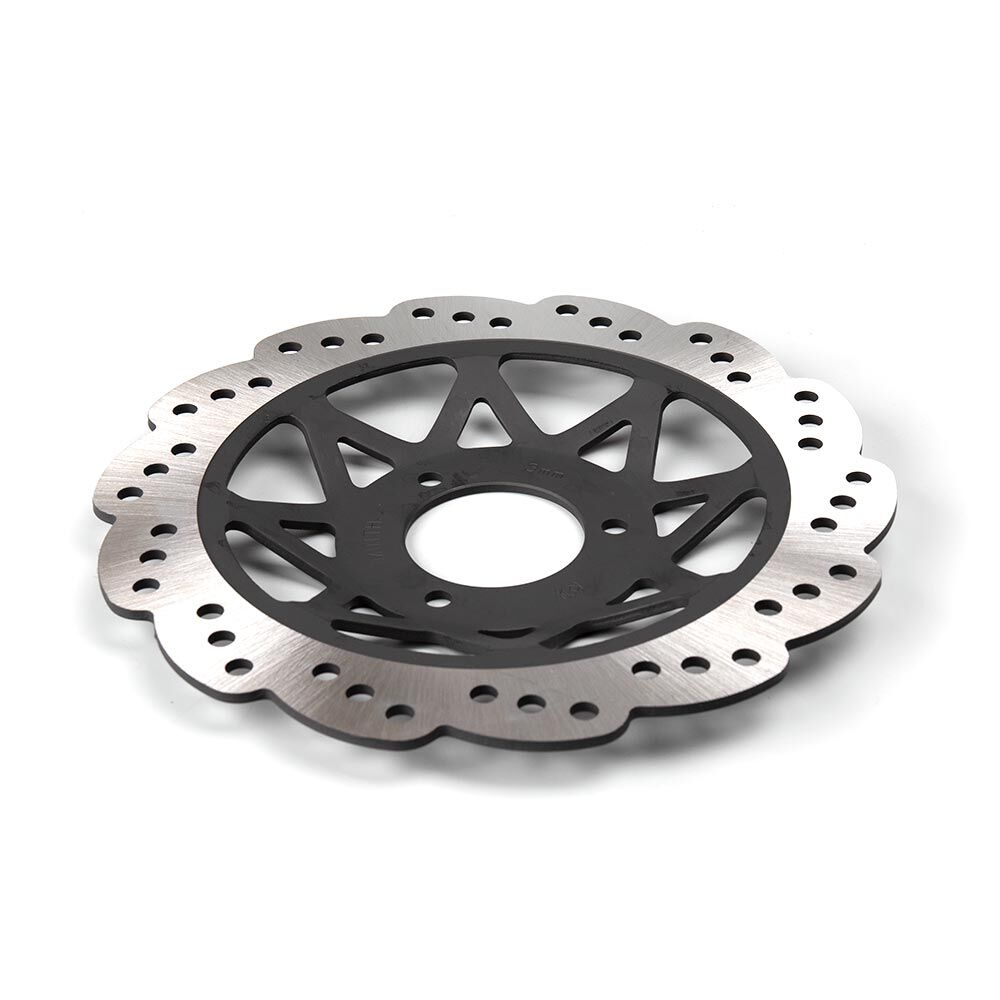

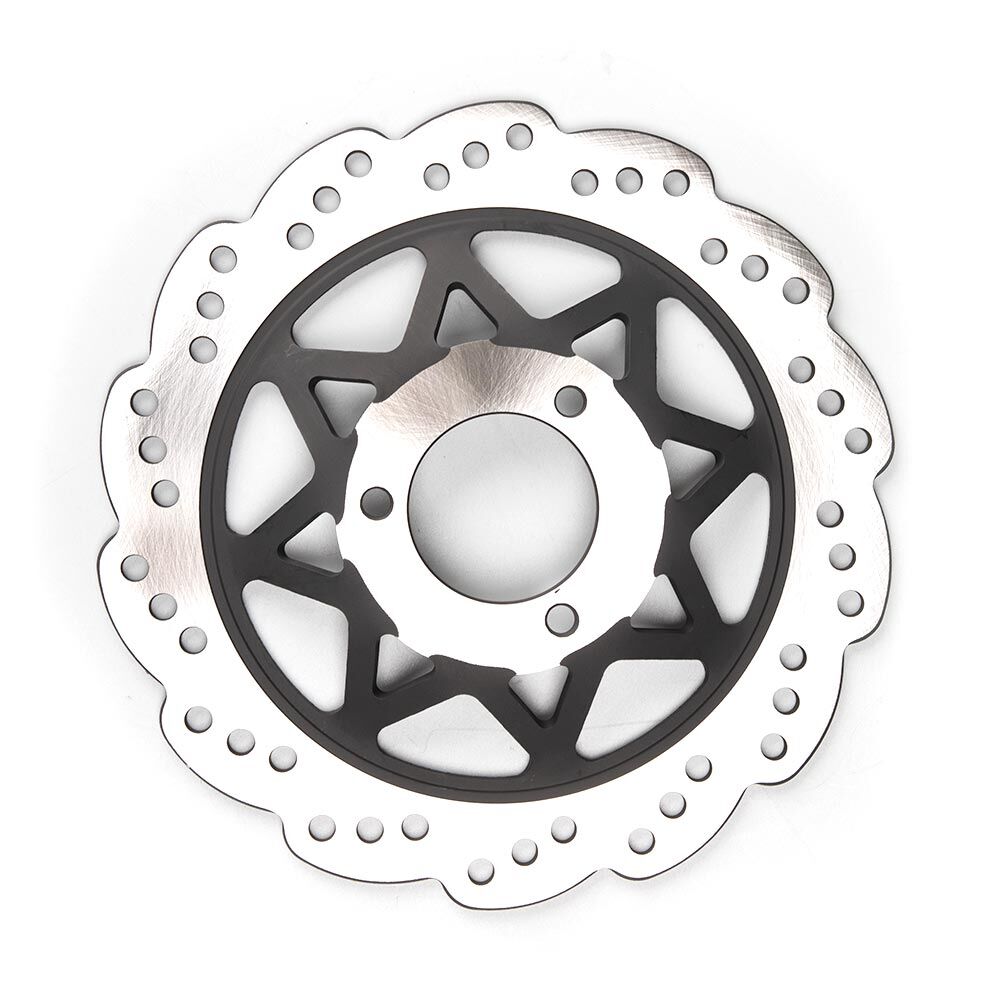

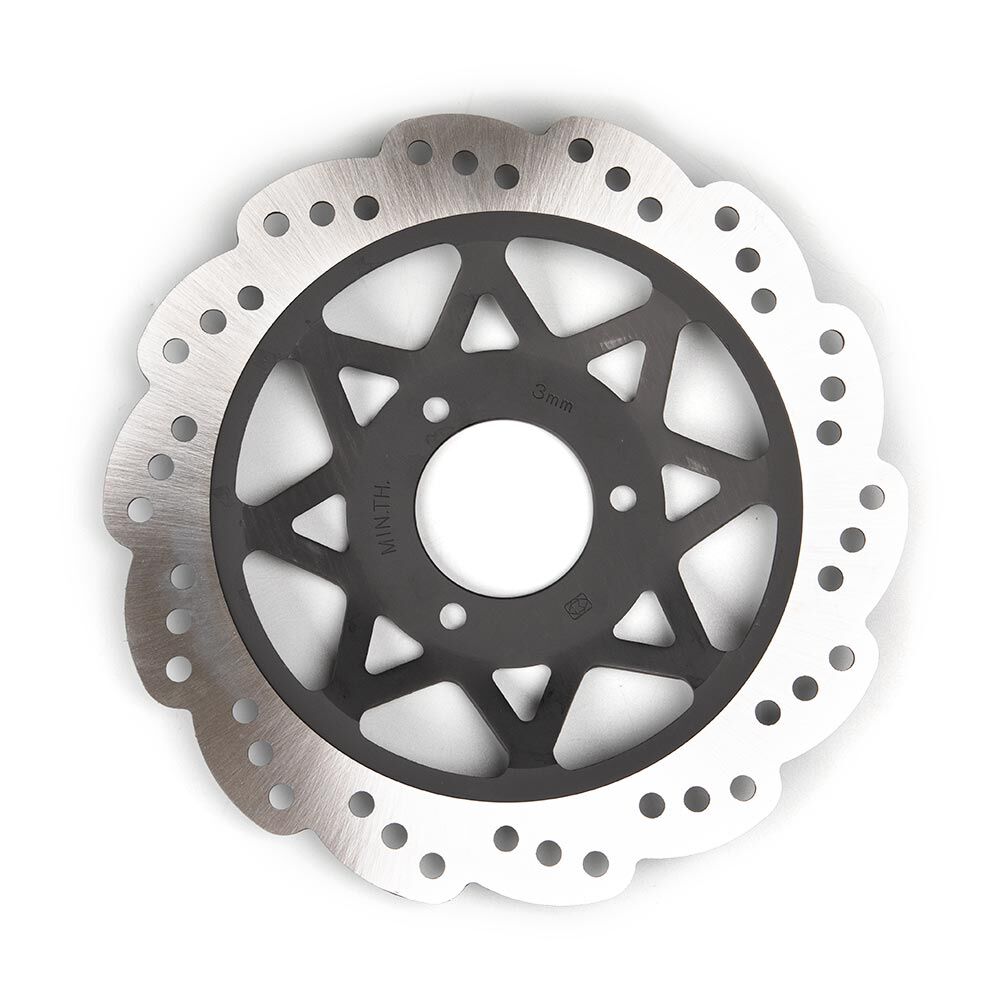

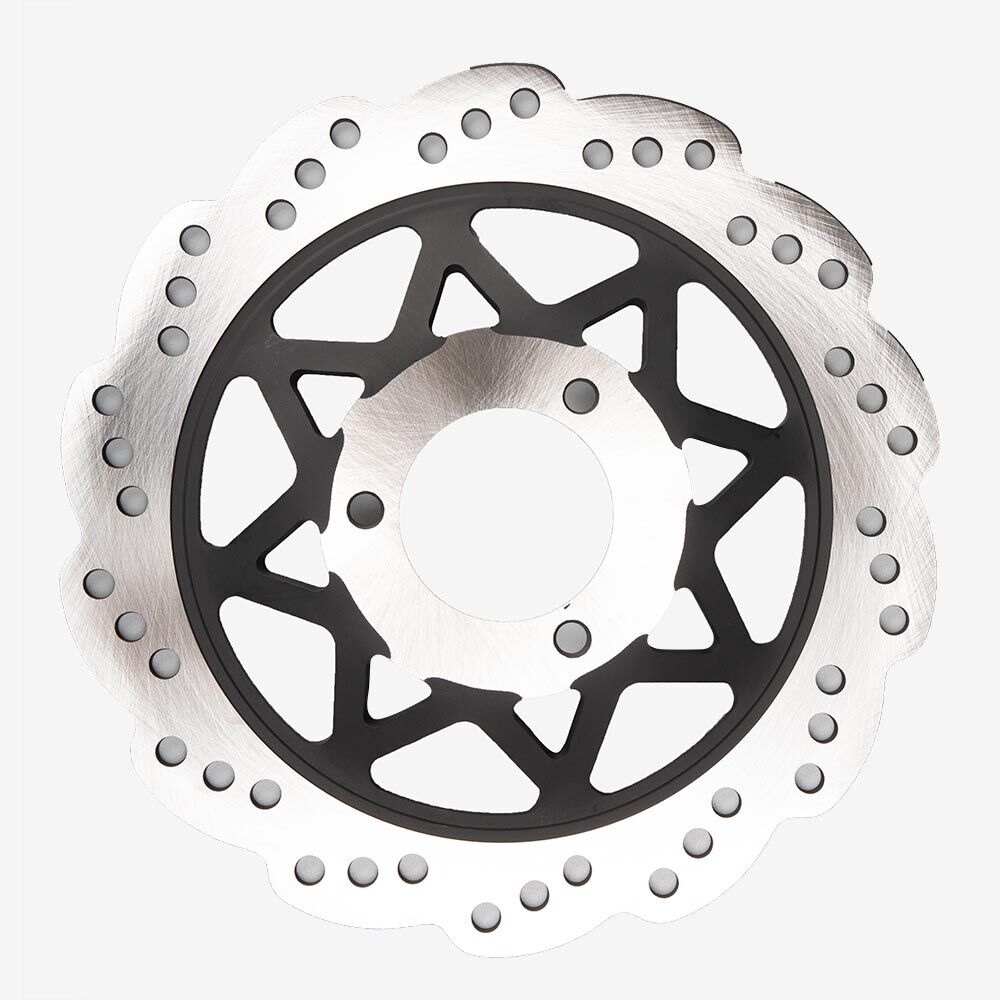

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | AP1 Euro 5 [CL125T-V2-E5] | View parts diagram |
Apollo 125 Euro 5 [CL125T-E5] | View parts diagram | |
Chieftain 125 [TD125T-15] | View parts diagram | |
Taro | Alex One | |
Alex V2 | ||
