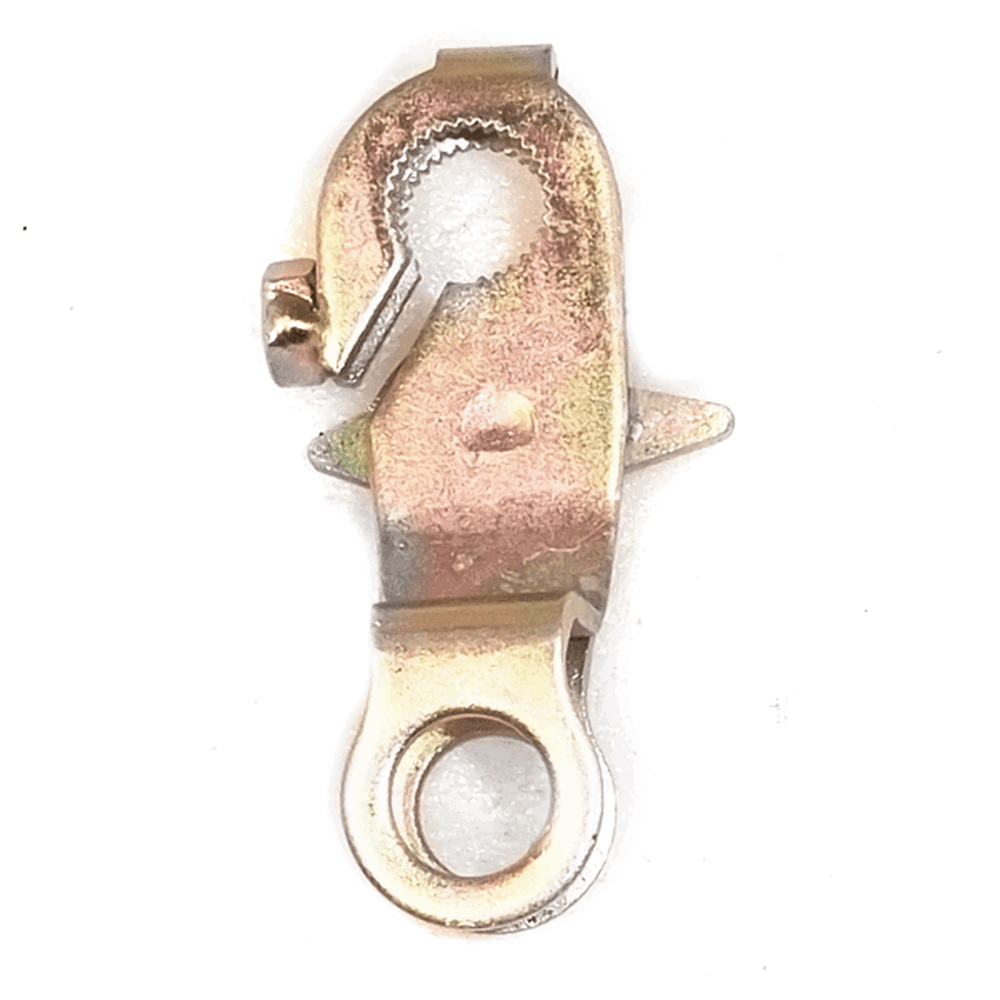

BRHL009"Another great Brake Hub Lever"
The rear brake hub lever in a motorcycle is a mechanical arm attached to the rear brake hub. When engaged by the rear brake rod or cable, it activates the brake shoes inside the drum brake, causing them to press against the drum and slow down or stop the rear wheel.
| Manufacturer | Model | Diagram |
|---|---|---|
| Direct Bikes | 50cc Ninja | |
| 50cc Sports | ||
| 50cc Tommy E3 [DB50QT-E] | ||
| DB50QT-16 | ||
| Jinlun | JL50QT-5 | |
| JL50QT-6 | ||
| Leike | 50GY-2 | |
| Lexmoto | Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram |
| Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram | |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Echo 50 E4 [LJ50QT-5L] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo 50 Euro 5 [LJ50QT-9L-E5] | View parts diagram | |
| Echo 50 [LJ50QT-3L] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| L5 [LJ50QT-7E-E55] | View parts diagram | |
| Matador 50 E4 [JJ50QT-17] | View parts diagram | |
| Milano 50 [FT50QT-27] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
| Tommy 50 [ZN50QT-E] | ||
| Longjia | LJ50QT-9L | |
| Pulse | Rage 50 [LK50GY-2] | |
| Tamoretti | Retro 50 | |
| Znen | ZN50QT-E | |
