BRLVR009

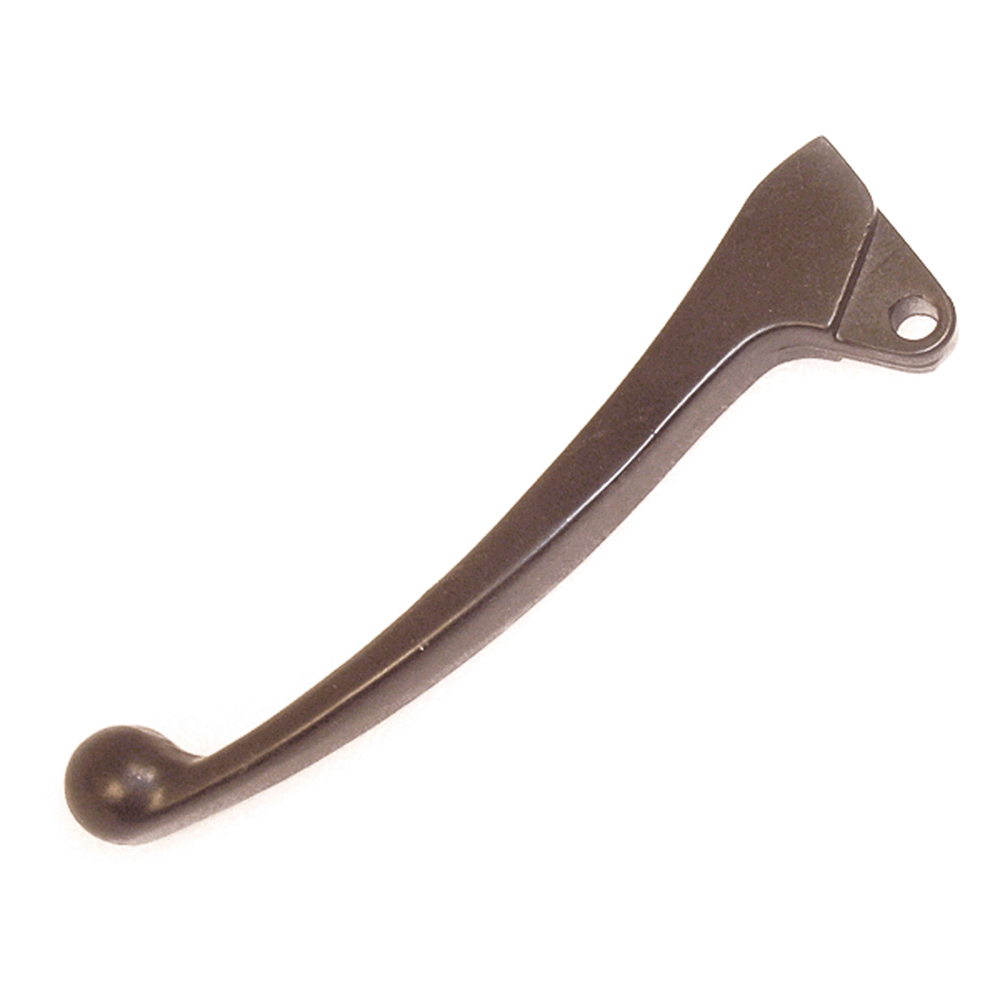

Brake levers are the small metal levers mounted on your handlebars that, when pulled, actuate the brakes (by means of either pulling a cable or compressing hydraulic fluid) to bring you to a halt.
Manufacturer | Model | Diagram |
---|---|---|
BTM | BT49QT-9 | |
BT49QT-12 | ||
Sprint | ||
Baotian | BT49QT-9 | |
BT49QT-12 | ||
BT50QT-9 | ||
Chase 49 [BT49QT-7] | ||
Evolution 125 | ||
Rebel 49 [BT49QT-12C1] | ||
Rebel 125 [BT125T-12] | ||
Scout 50 | ||
Tanco 50 2 | ||
Tanco 125 [BT125T-12F] | ||
Benero | BT49QT-9 | |
Direct Bikes | 50cc Ninja E3 [DB50QT-15B] | |
50cc Scorpion E3 [DB50QT-32A] | ||
50cc Viper | ||
50cc Viper E3 [DB50QT-32] | ||
125cc Cobra | ||
125cc Scorpion E3 [DB125T-32A] | ||
125cc Viper | ||
125cc Viper E3 [DB125T-32] | ||
GRIP | Freestyle 125cc | |
Huatian | City 125cc | |
Sport 50cc | ||
Sport 125cc | ||
Jinlun | 125cc Cobra Scooter [JL125T-6] | |
Lexmoto | FMR 50 [WY50QT-58R] | |
Flash 50 | ||
Tornado 50 | ||
Tornado 125 | ||
Longjia | Alien 125 [LJ125T-A] | |
LJ50QT-K (2T) | ||
Raptor 125 | ||
Moto Zeta | Rally 50 SC [RALLYSC] | |
Pulse | Lightspeed 2 50 [WY50QT-58] | |
Lightspeed 50 2T [HT50QT-28] | ||
Lightspeed 50 [HT50QT-25] | ||
Lightspeed 125 [HT125T-25] | ||
Phantom 50 [ZN50QT-32A] | ||
Phantom 125 [ZN125T-32A] | ||
Rhythm 50 [SB50QT-16] | ||

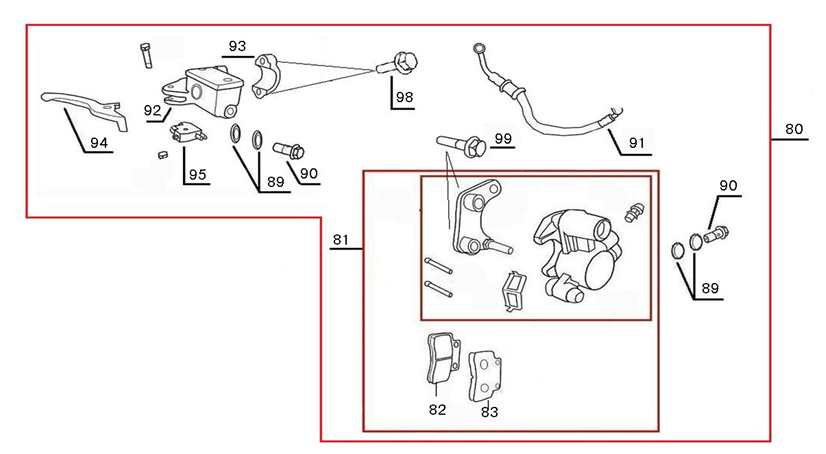

Scout 49 | View parts diagram | |
Tanco 49 | ||
Tanco 50 | ||
Zoom 125 [HT125T-21] | ||
Razzo | Tanco 50 | |
Tanco 125 | ||
Rex | RS450 | |
Sanben | Tornado 50 [SB50QT-16(B08)] | |
Tornado 125 [SB125T-21(B08)] | ||
Zoom II 50 (2T) [SB50QT-16(B10)@] | ||
Sukida | Sportman 2 [SK125T-21-SM] | |
Viper 125 [SK125T-21] | ||
Superbyke | MPED 50 | |
Powerband 50 | ||
Tamoretti | Stealth 125 | |
Viarelli | Sprint | |
Wangye | WY50QT-16 | |
WY50QT-16(B08) | ||
WY125T-21(B08) | ||
Yiben | Gladiator 125 [YB125T-15(B)] | |
Hurricane 50 [YB50QT-9] | ||
Hurricane 125 [YB125T-22] | ||
Striker 125 [YB125T-22D] | ||
Zoom 125 [YB125T-22C] | ||
Zennco | Matrix | |
Zipp | Triad | |
Znen | Flash 50 [ZN50QT-15A] | |
