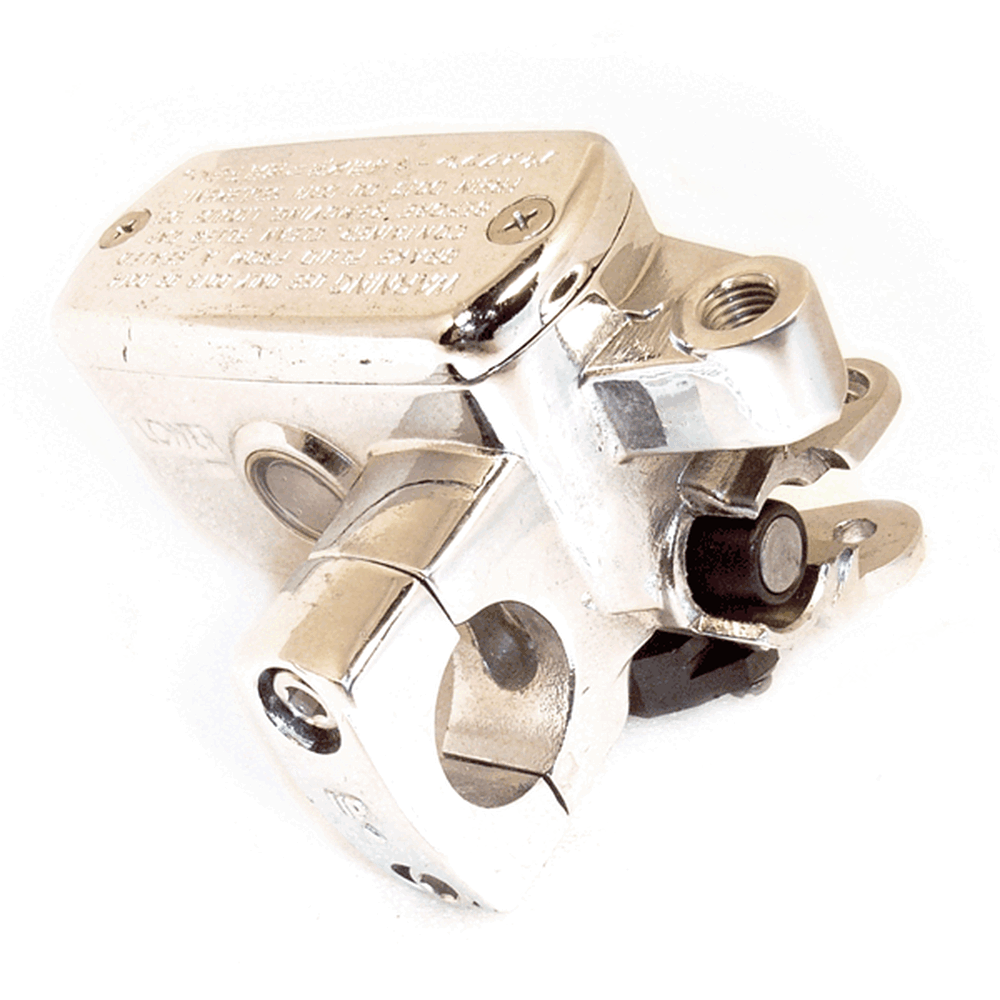

BRMCF003"In the category of Master Cylinders and Fluid Reservoirs, Master Cylinders"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.
| Manufacturer | Model | Diagram |
|---|---|---|
| Direct Bikes | 50cc Tommy E3 [DB50QT-E] | |
| 125cc Tommy E3 | ||
| Jinlun | 125cc Tommy Scooter E3 | |
| Lexmoto | Tommy 50 [ZN50QT-E] | |
| Tommy 125 E3 | ||

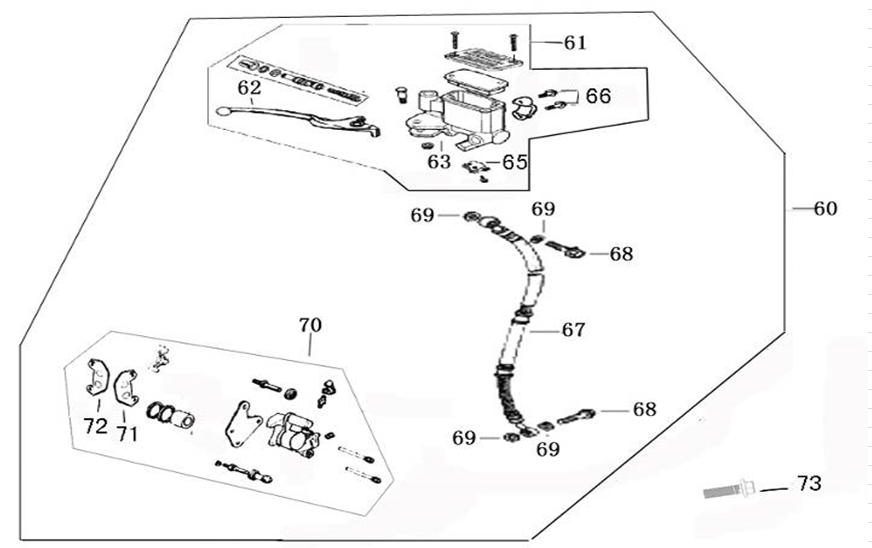

| Valencia 50 [ZN50QT-K] | View parts diagram | |
| Valencia 125 [ZN125T-K] | View parts diagram | |
| Sinnis | Spirit 125 [ZN125T-E-S] | |
| Tamoretti | Retro 50 | |
| Retro 125 E3 | ||
| Yiying | Tommy 125 [YY125T-19] | |
| Znen | Tommy 125 E3 [ZN125T-E] | |
| ZN50QT-E | ||
