BRMCR004

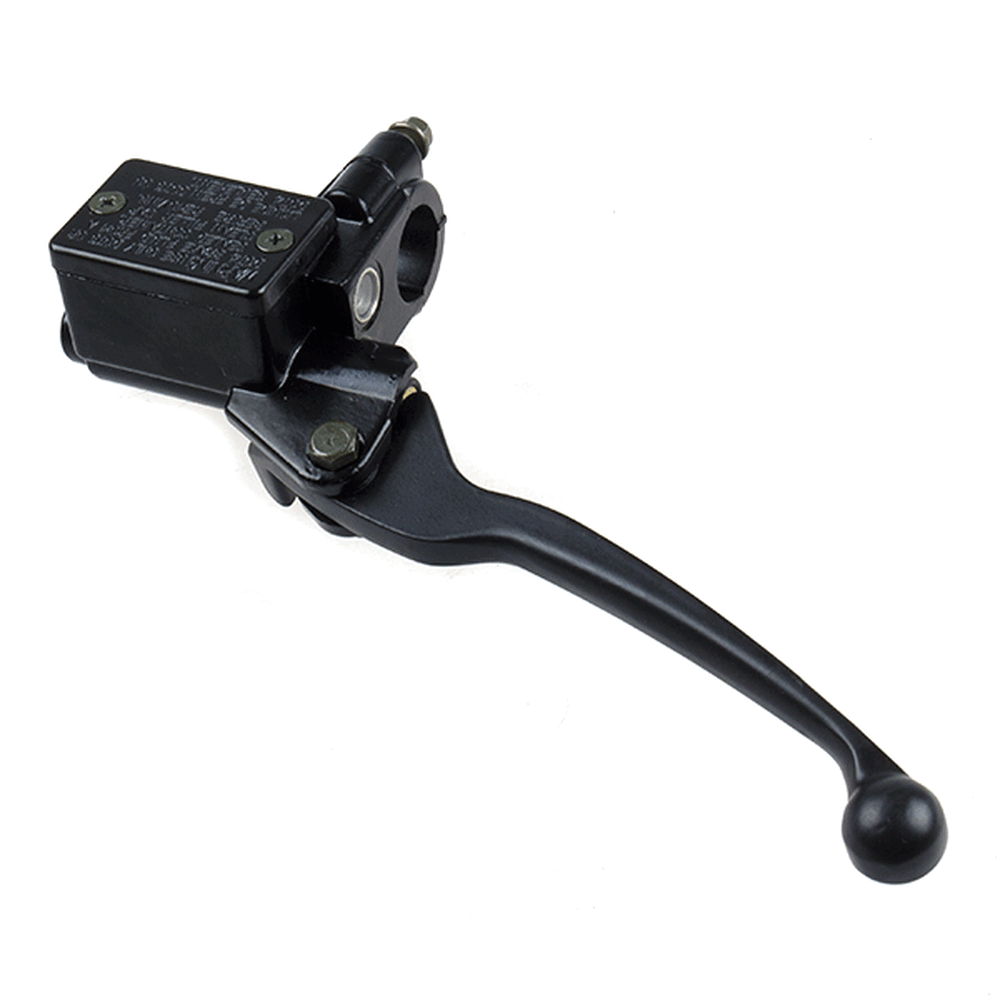

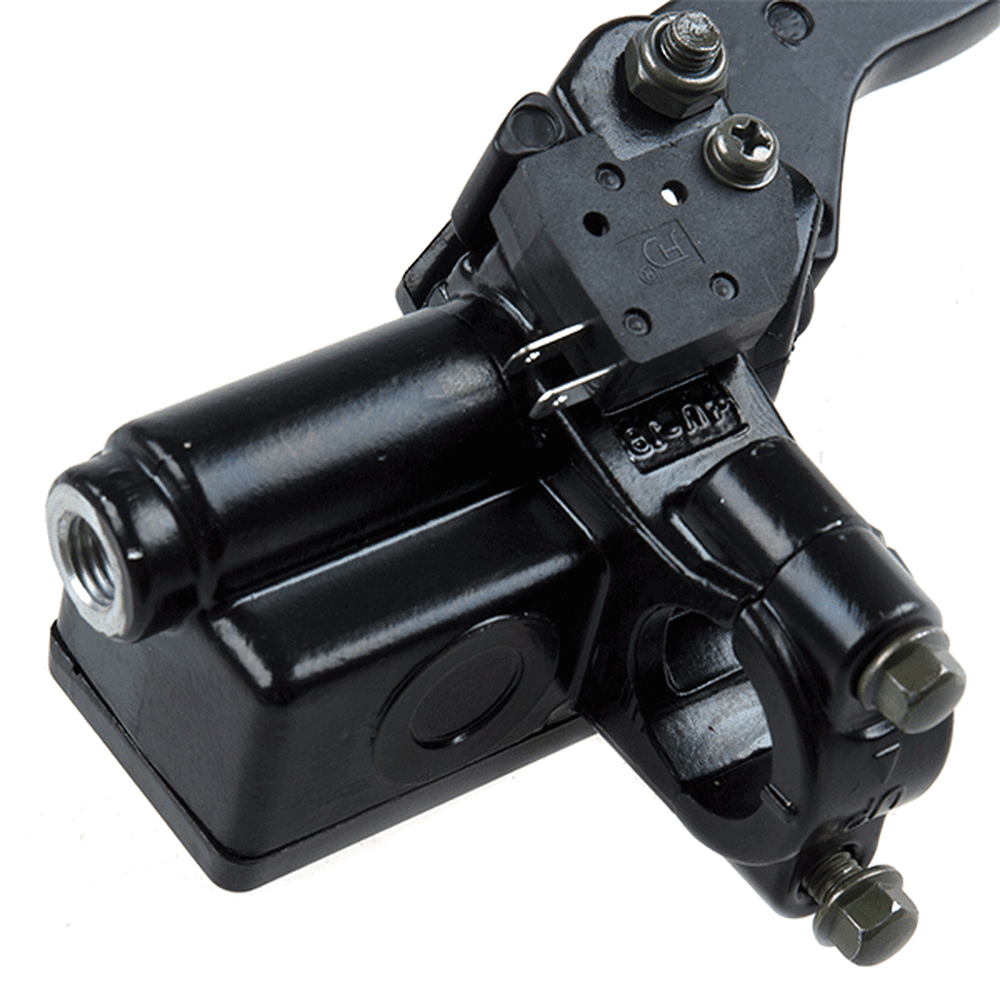

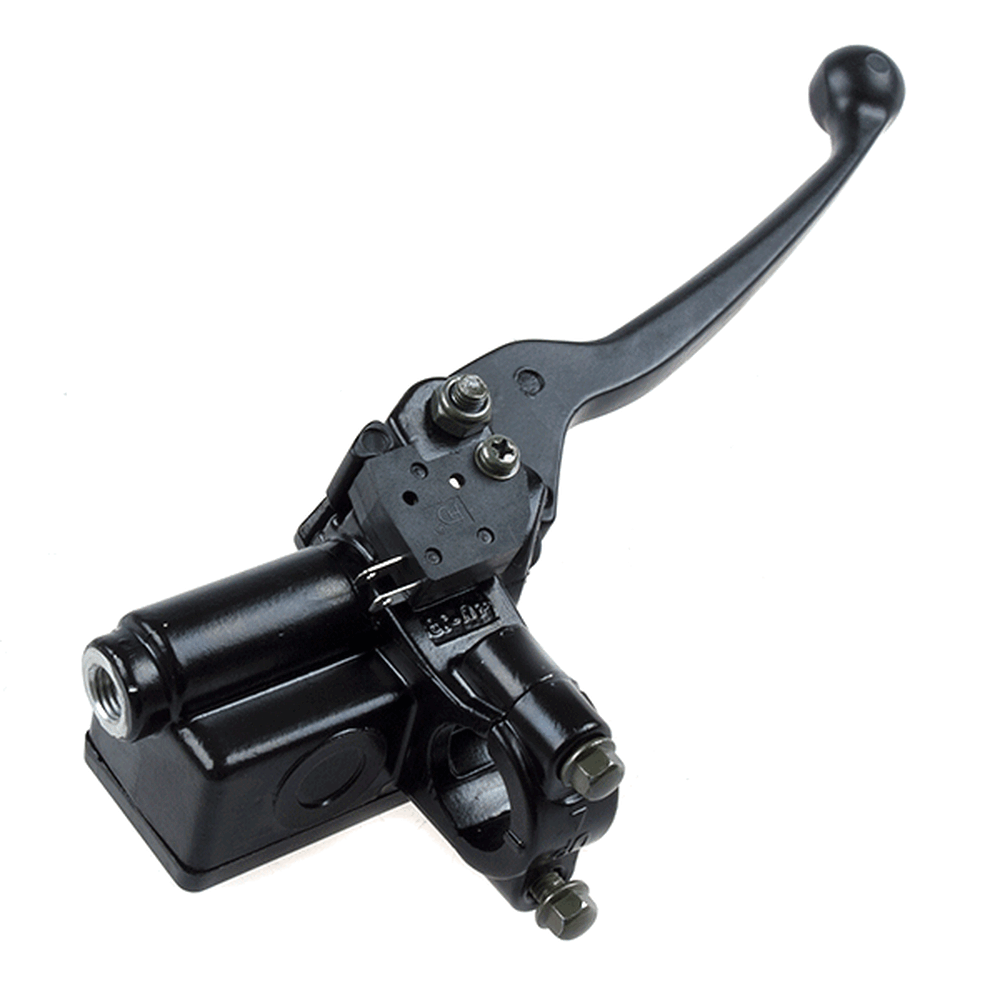

The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | FMR 125 [WY125T-74R] | View parts diagram |
Zoom II 125 | ||
Pulse | Lightspeed 2 125 [WY125T-74] | |
Rhythm 50 [SB50QT-16] | ||
Sanben | Zoom II 125 [SB125T-21(B10)] | |
Wangye | WY50QT-16 | |
WY125T-21(B10) | ||
Zennco | Matrix | |
