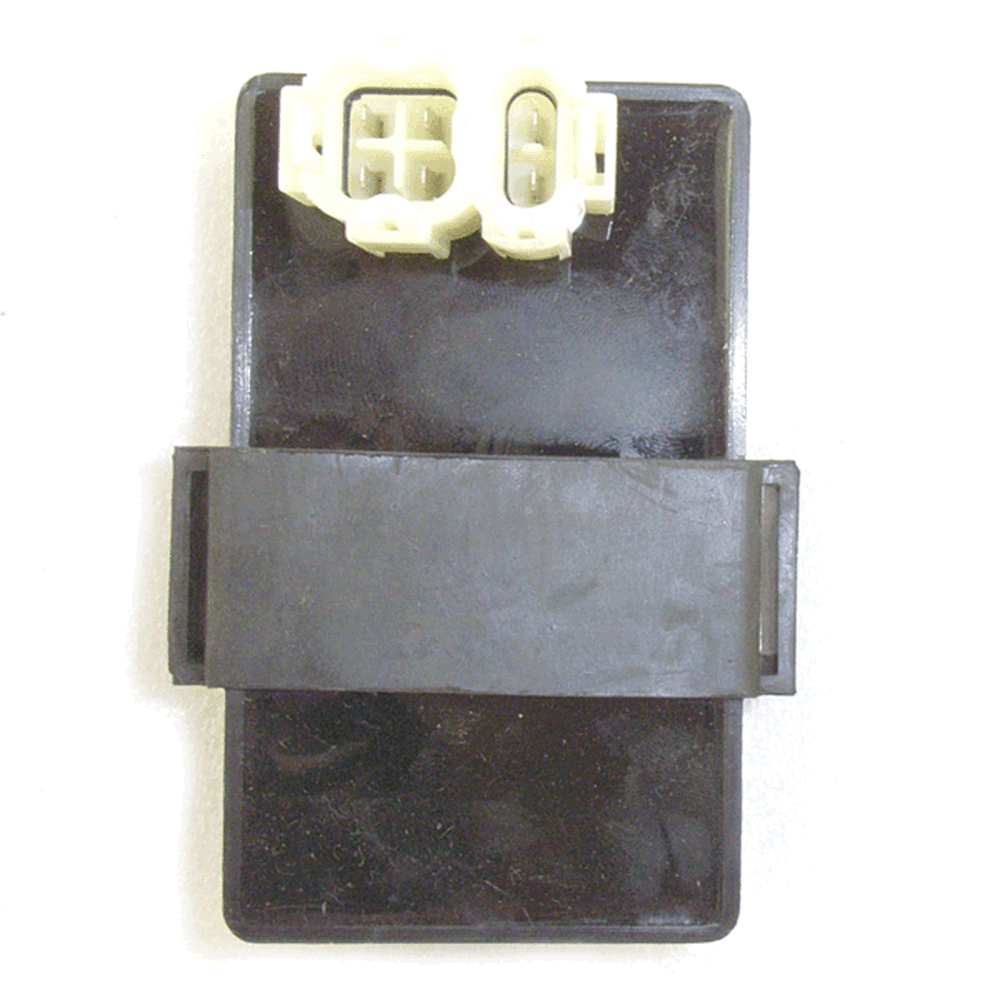

CDI032
Essentially, a CDI box controls a motorcycle's ignition system by starting the ignition and combustion process. A pulse of voltage from the motorcycle battery passes through the CDI box to fire up the spark plug.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 125cc Classic | |
125cc Cruiser E3 [DB125T-7H] | ||
125cc Scorpion E3 [DB125T-32A] | ||
125cc Spyder E3 [DB125T-22] | ||
125cc Tommy E3 | ||
125cc Viper E3 [DB125T-32] | ||
Jinlun | 125cc Tommy Scooter E3 | |
Lexmoto | FMS 125 [ZN125T-7H] | View parts diagram |
Firenze 125 | ||
Tommy 125 E3 | ||
Valencia 125 [ZN125T-K] | View parts diagram | |
Pulse | Phantom 125 [ZN125T-32A] | |
Sinnis | Harrier 125 [ZN125T-22(SINNIS)] | |
Shuttle 125 [ZN125T-7H(SINNIS)] | ||
Spirit 125 [ZN125T-E-S] | ||
Tamoretti | Retro 125 E3 | |
Znen | Firenze 125 [ZN125T-F] | |
Tommy 125 E3 [ZN125T-E] | ||
ZN125T-22 | ||
