Description
"In the category of Clutches and Clutch cables, Other"

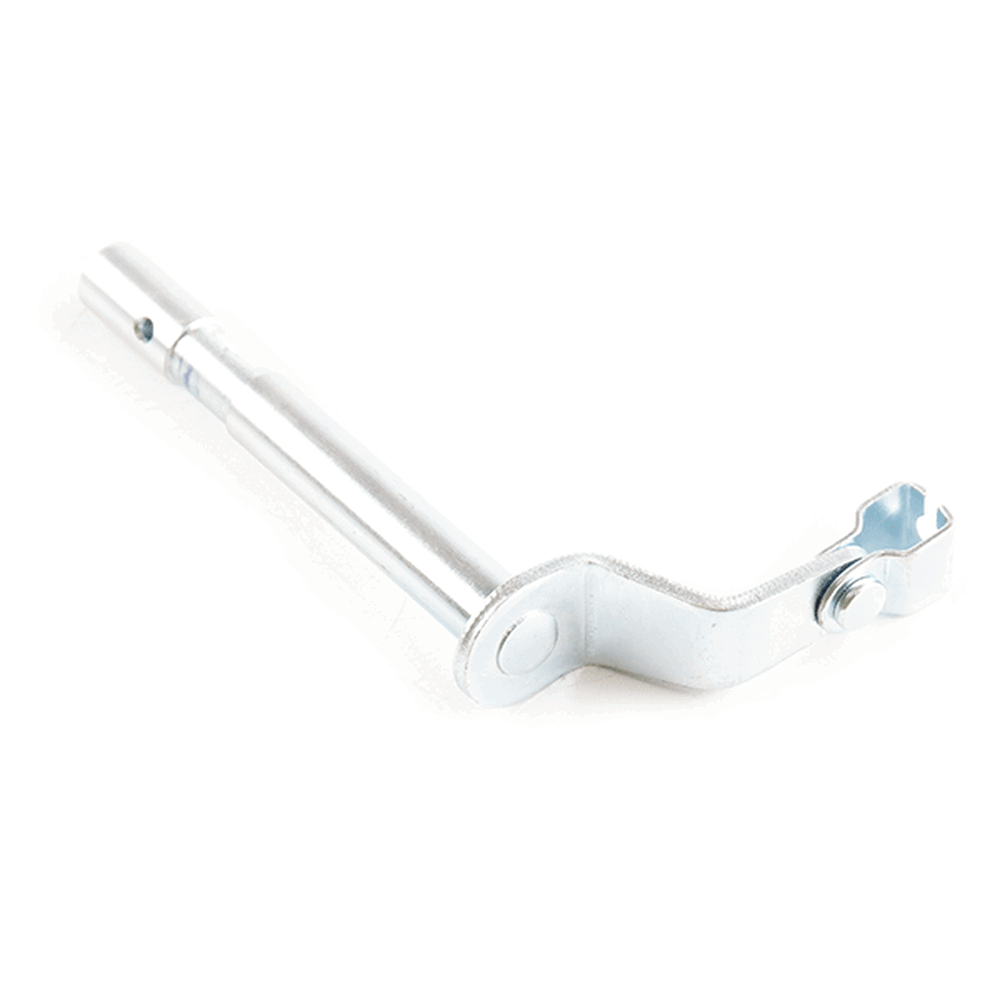

The clutch actuator arm in a motorcycle is a lever mechanism that transmits force from the clutch lever or master cylinder to the clutch release mechanism. It facilitates the engagement and disengagement of the clutch by pushing or pulling on the clutch push rod or release mechanism, allowing for smooth operation of the clutch.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 |  |
Flanged Hex Bolt Cam Cover Bolt M6 x 40mm BLT114 x 1
|
£0.99 | |
| 3 | |
Oil Filter Housing O-Ring ORNG088 x 1
|
£2.99 | |
| 8 | |
Right Engine Casing for UM125-CL ENGCR078 x 1
|
£85.49 | |
| 11 | |
Engine Dowel 8 x 14mm DWL001 x 1
|
£4.99 | |
| 13 | |
Right Crankcase (Clutch) Cover Gasket ZY125 for ZS125-48F,ZS125-48E GSKCR024 x 1
|
£7.99 | |
| 14 | |
ZY125-E4 Flanged Hex Bolt M6 x 15mm BLT194 x 1
|
£1.49 | |
| 16 | |
Left Crankcase Cover Gasket ZY125 GSKCL019 x 1
|
£7.49 | |
| 17 | |
Left Engine Casing for UM125-CL, UM125-CO ENGCL082 x 1
|
£44.49 | |
| 18 | |
Oil Filter Cap for UM125-CL, UM125-CO OLFC012 x 1
|
£2.99 | |
| 19 | |
O-Ring 27.4 x 32.7 x 2.65mm ORNG040 x 1
|
£3.49 | |
| 25 | |
Sprocket Cover for UM125-CL SPKCVR059 x 1
|
£24.49 | |
| 26, 28 | |
Oil Filter OLF026 x 1
|
£4.99 | |
| 27 | |
Oil Filter Cover for UM125-CL, UM125-CO OLFH002 x 1
|
£8.49 | |
| 29 | |
Water Pump O-Ring 106.8 x 110.6 x 1.9mm ORNG055 x 1
|
£3.49 | |
| 30 | |
Water Pump Housing Silver for UM125-CL WTPH009 x 1
|
£12.99 | |
| 31 | |
Spacer SPCR036 x 1
|
£0.99 |
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| UM | Commando Classic 125 [UM125-CL] | View parts diagram |
| Renegade Commando 125 [UM125-CO] | View parts diagram | |
