CLLVR014

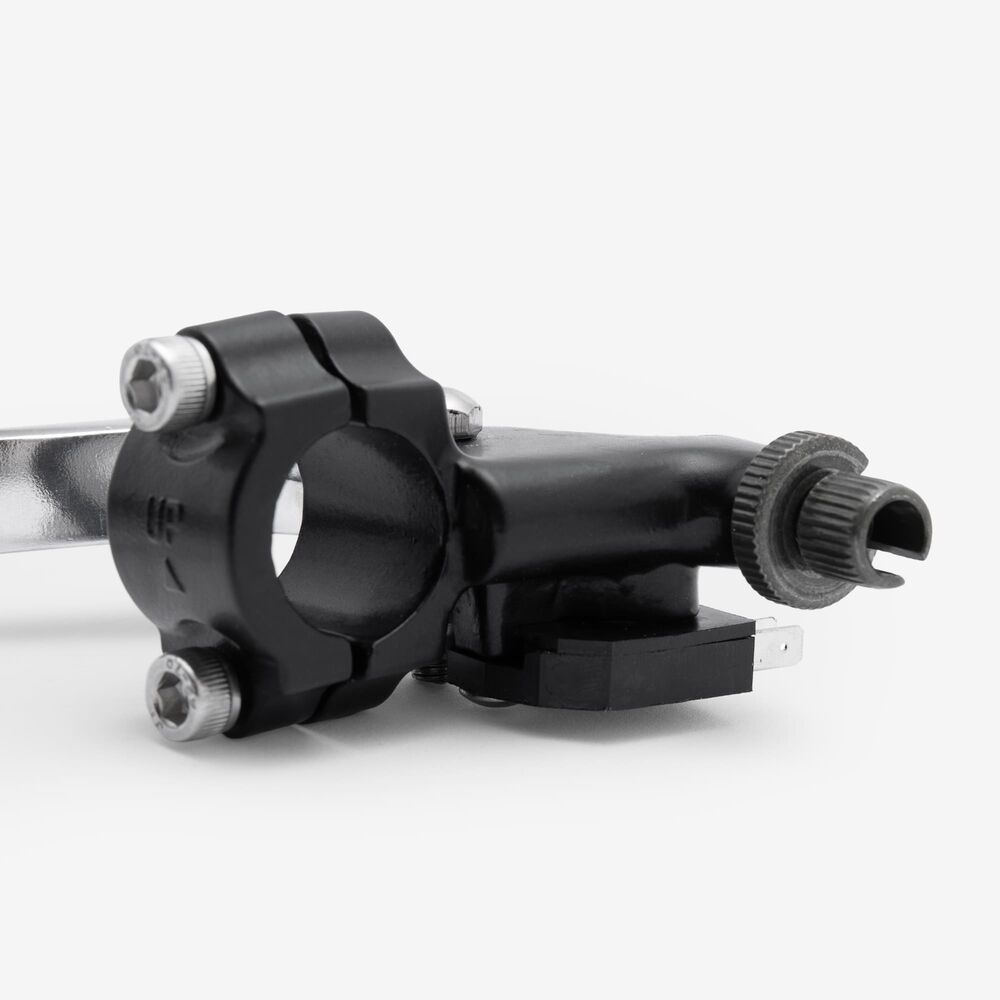

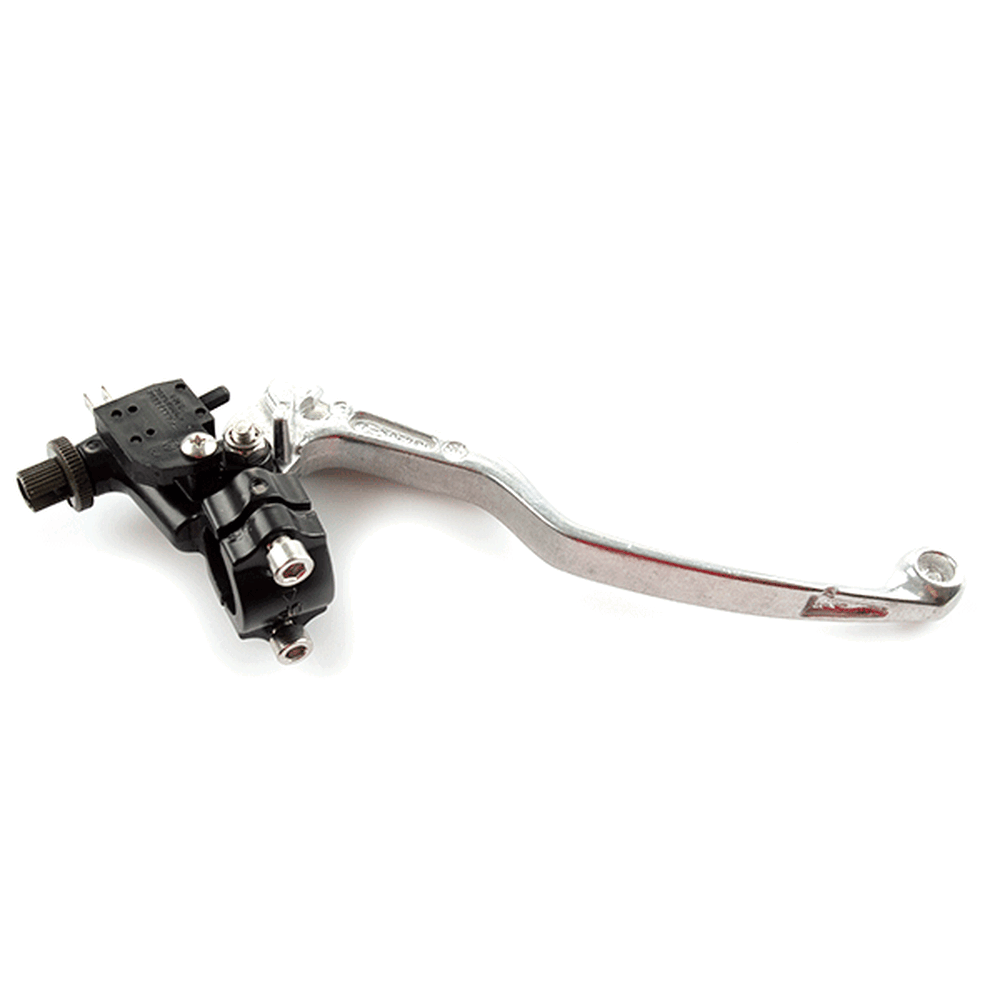

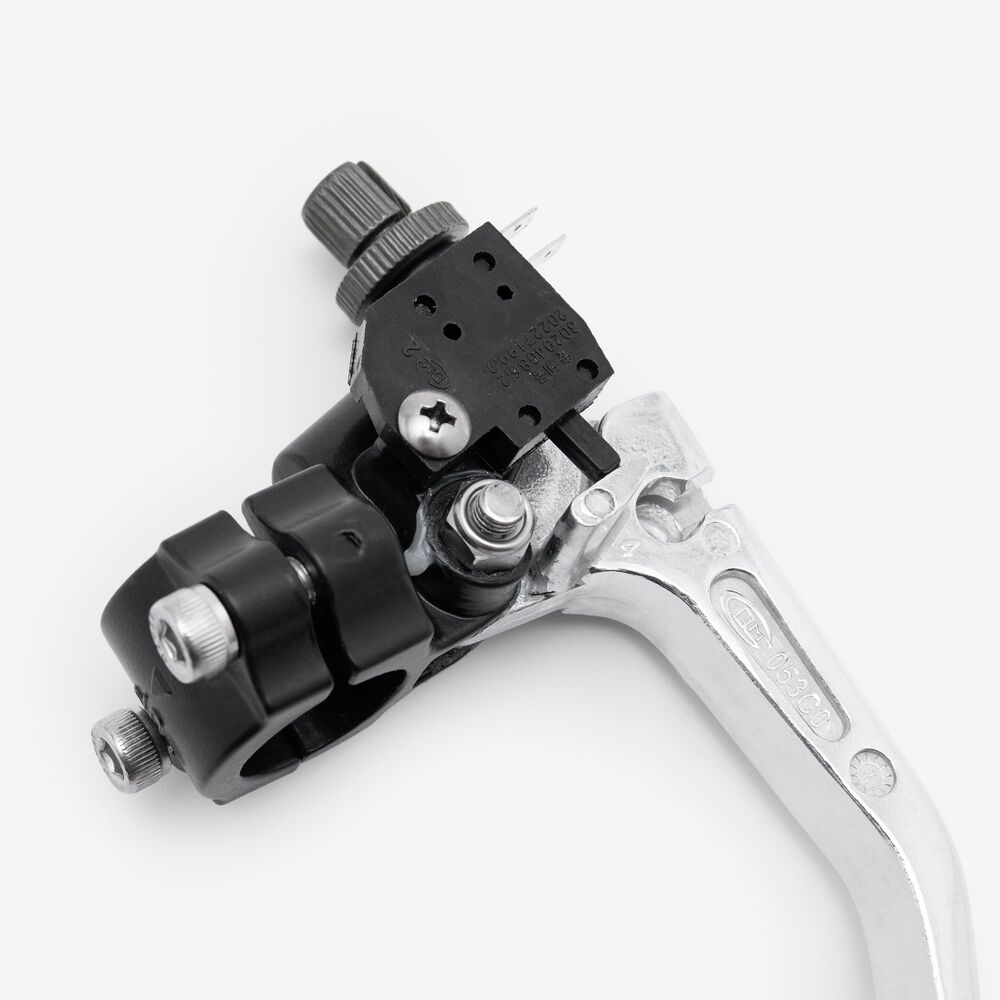

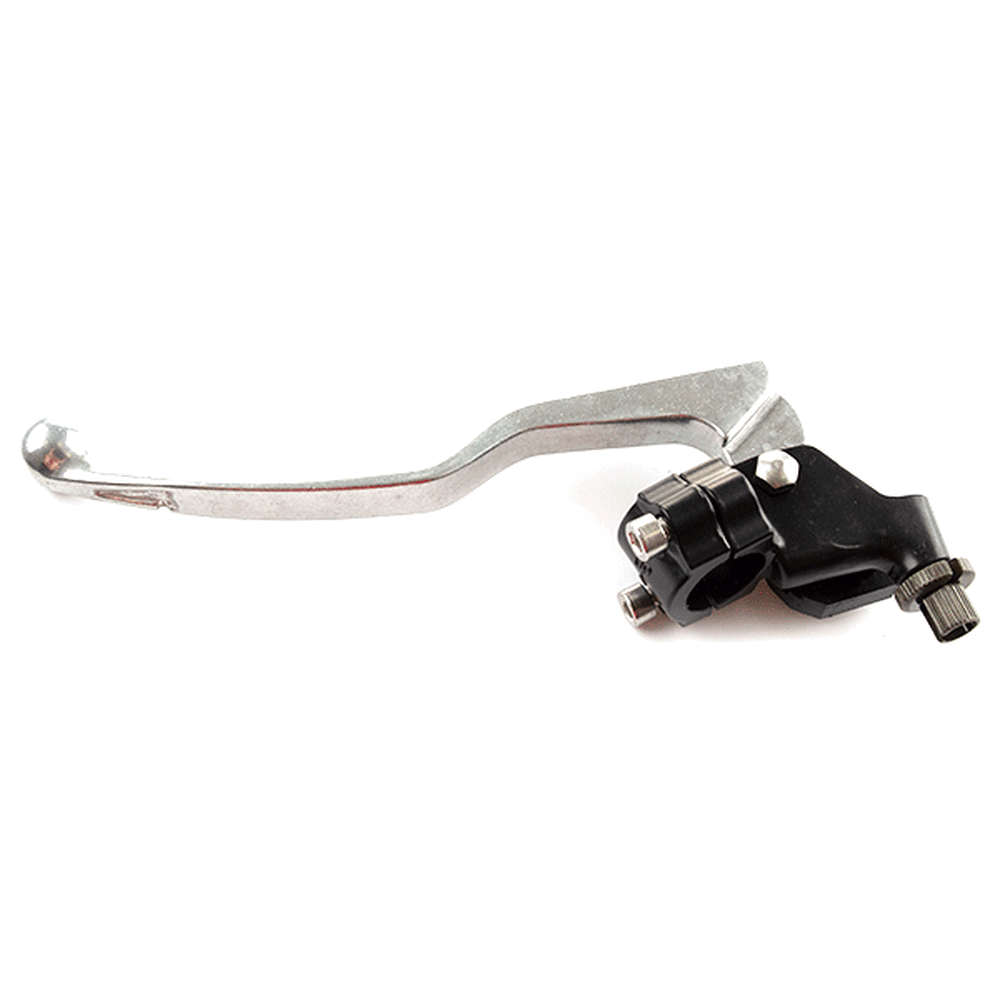

When you pull the clutch lever in, the action causes the compressed springs on the pressure plate to retract. As a result, the friction and steel plates which are forced together separate and begin to rotate independently, disconnecting the engine from the transmission system.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | LXR 125 Euro 5 [SY125-10-E5] | View parts diagram |
LXR 125 [SY125-10] | View parts diagram | |
LXR 380 [TR380-GP1] | View parts diagram | |
LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
LXR SE 125 Euro 5 [SY125-10-SE-V2] | View parts diagram | |
LXR SE 125 [SY125-10-SE] | View parts diagram | |
LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
Mitt | MITT 125 GP 2 [MITT125GP2] | |
MITT 125 GP [MITT125GP] | ||
MITT 400 GPR [MITT400GPR] | ||
