CLPL003

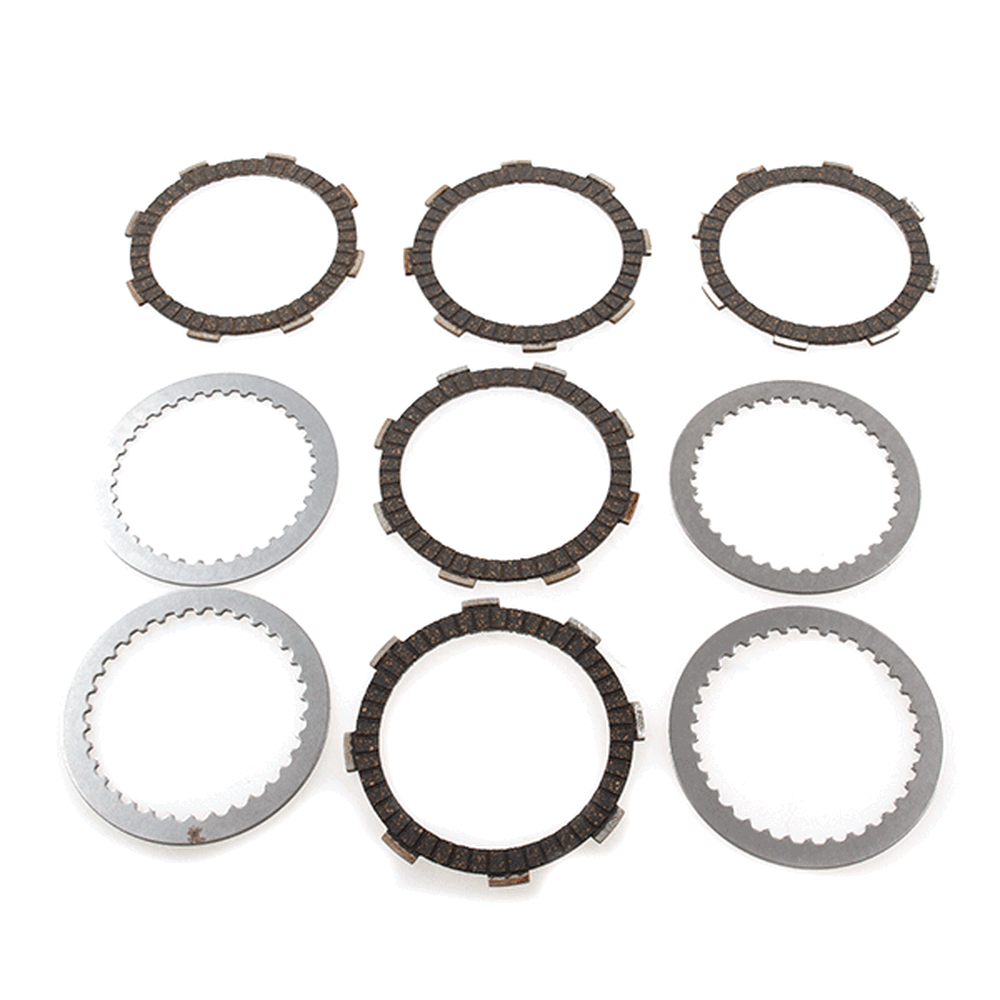

There are two types of clutch plates, the drive/friction plate and the driven/steel plate. The drive plate is the interface between the clutch basket and the pressure plate. The driven plate is the interface between the pressure plate and the clutch hub.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | LXR 125 [SY125-10] | View parts diagram |
LXR SE 125 [SY125-10-SE] | View parts diagram | |
Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
Tempest 125 [LJ125-9A] | View parts diagram | |
Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
Mitt | MITT 125 GP [MITT125GP] | |
Romet | SCMB 125 [SCMB125] | |
Z-One S 125 [ZONES125] | ||
Z-One T 125 [ZONET125] | ||
Sinnis | Hoodlum 125 [ZS125-79H] | |
RSX 125 [ZS125-80] | ||
Terrain 125 [ZS125-86] | ||
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
Renegade Commando 125 [UM125-CO] | View parts diagram | |
Renegade Sport S 125 [UM125-RS] | View parts diagram | |
