CMCHN034

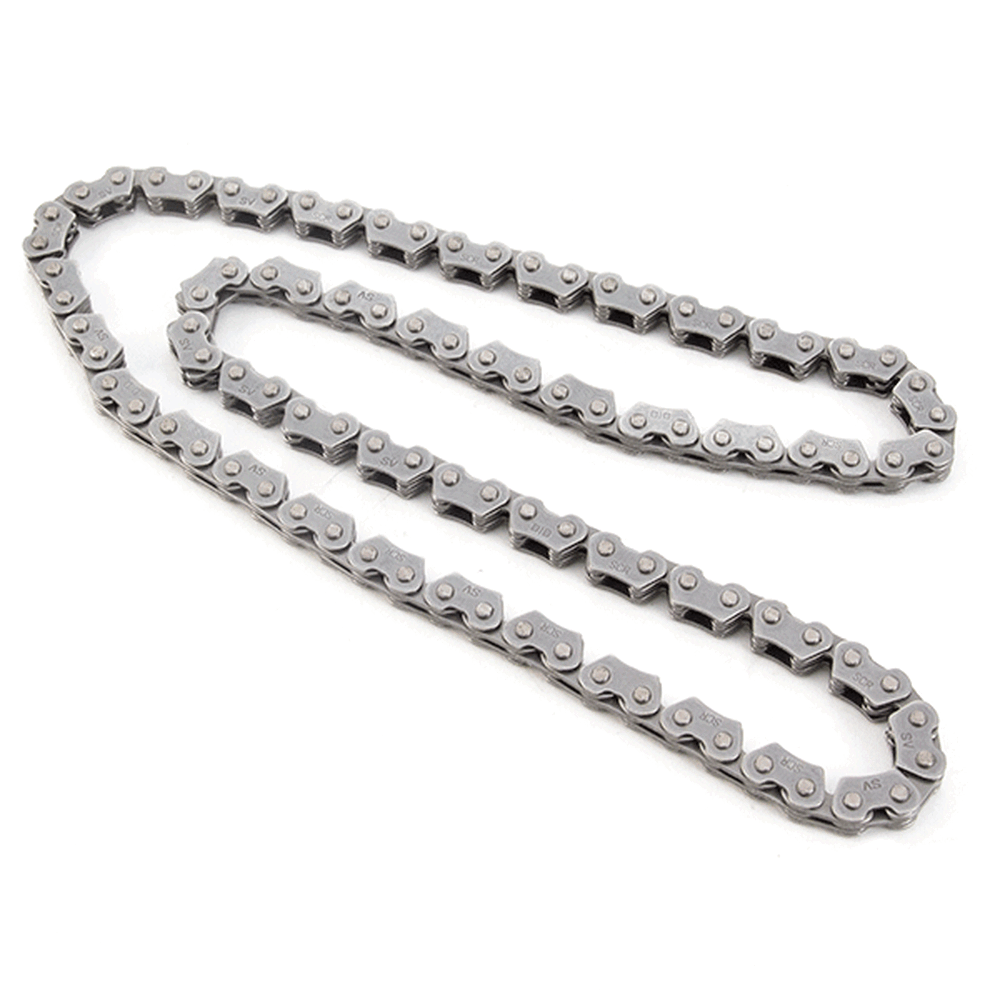

A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
Tempest 125 Euro 5 [LJ125-9A-E5] | ||
Tempest 125 [LJ125-9A] | View parts diagram | |
Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
Romet | SCMB 125 [SCMB125] | |
Z-One S 125 [ZONES125] | ||
Z-One T 125 [ZONET125] | ||
Sinnis | Akuma [AKUMA] | |
Hoodlum 125 [ZS125-79H] | ||
RSX 125 [ZS125-80] | ||
Terrain 125 [ZS125-86] | ||
