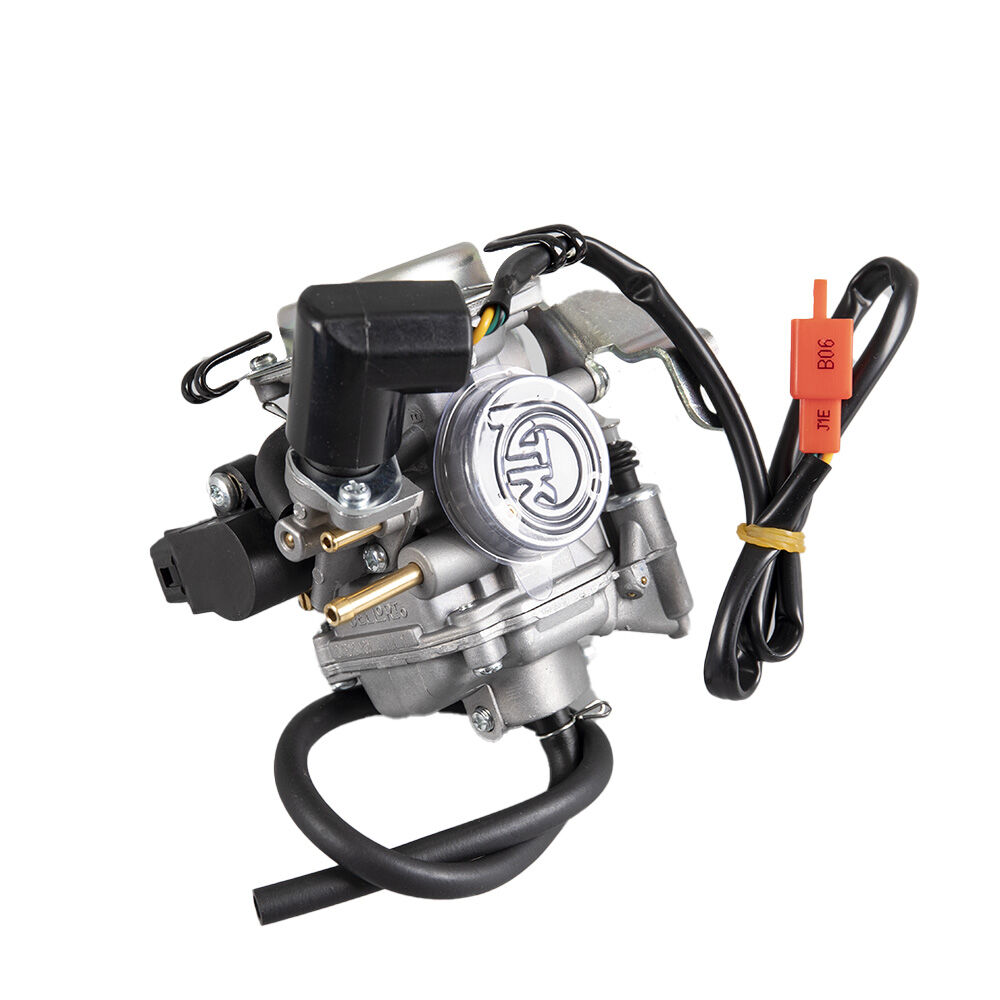

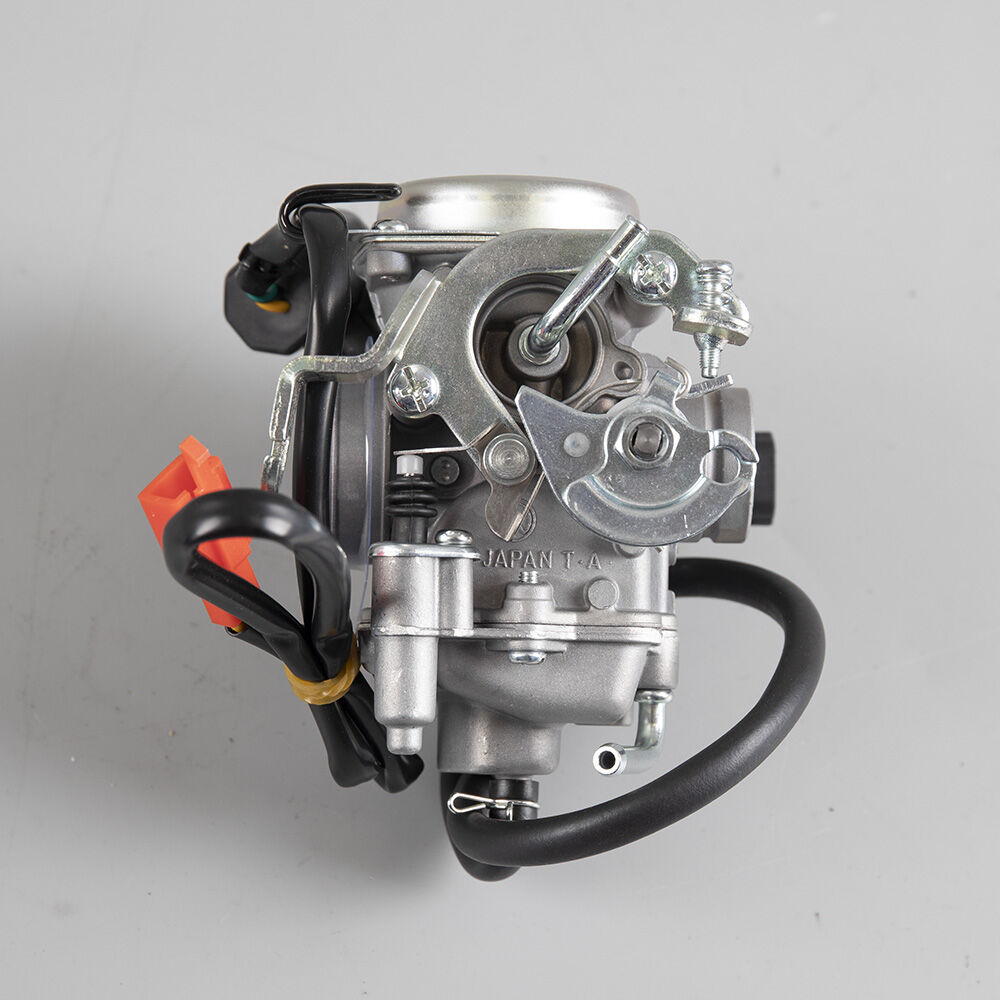

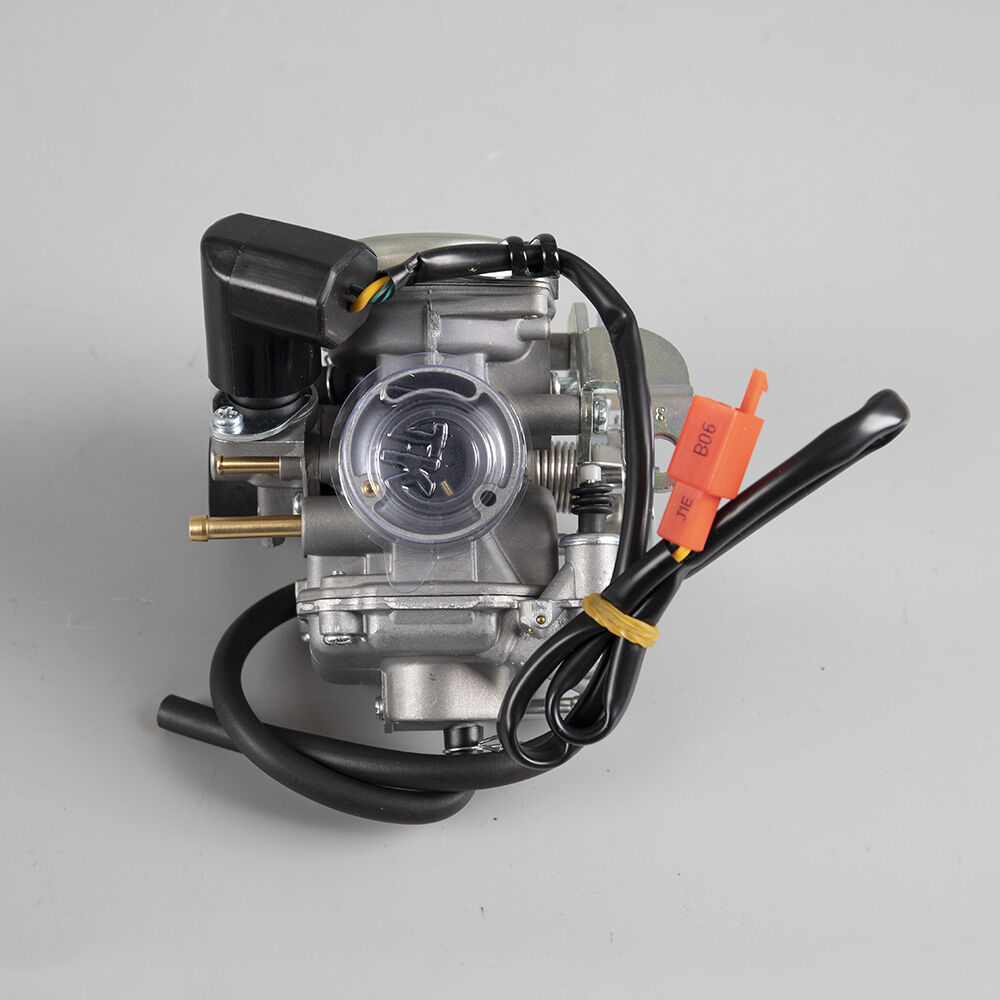

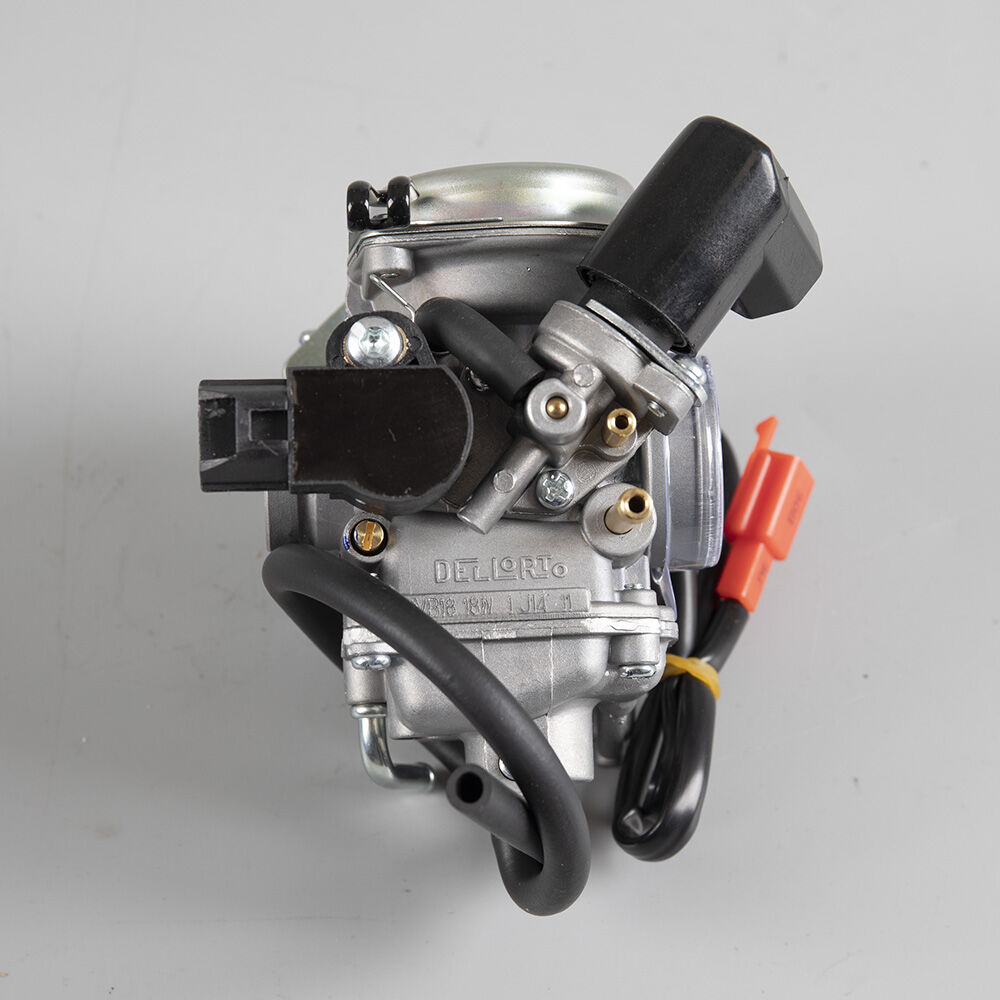

CRB072
A carburetor's job is to supply an internal combustion engine with air/fuel mixture. Carburetors regulate the flow of air through their Main bore (Venturi), this flowing air draws in fuel and the mixture enters the engine via the intake valve.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
