CRL003

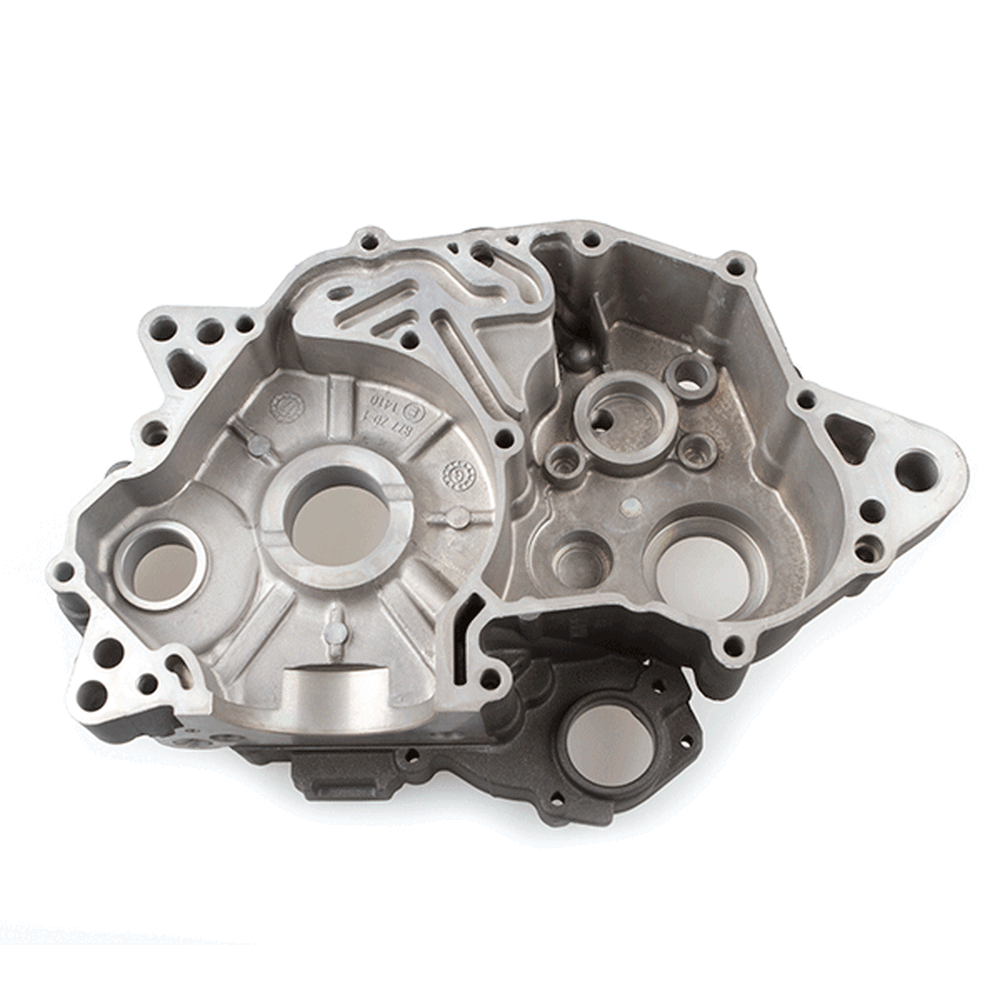

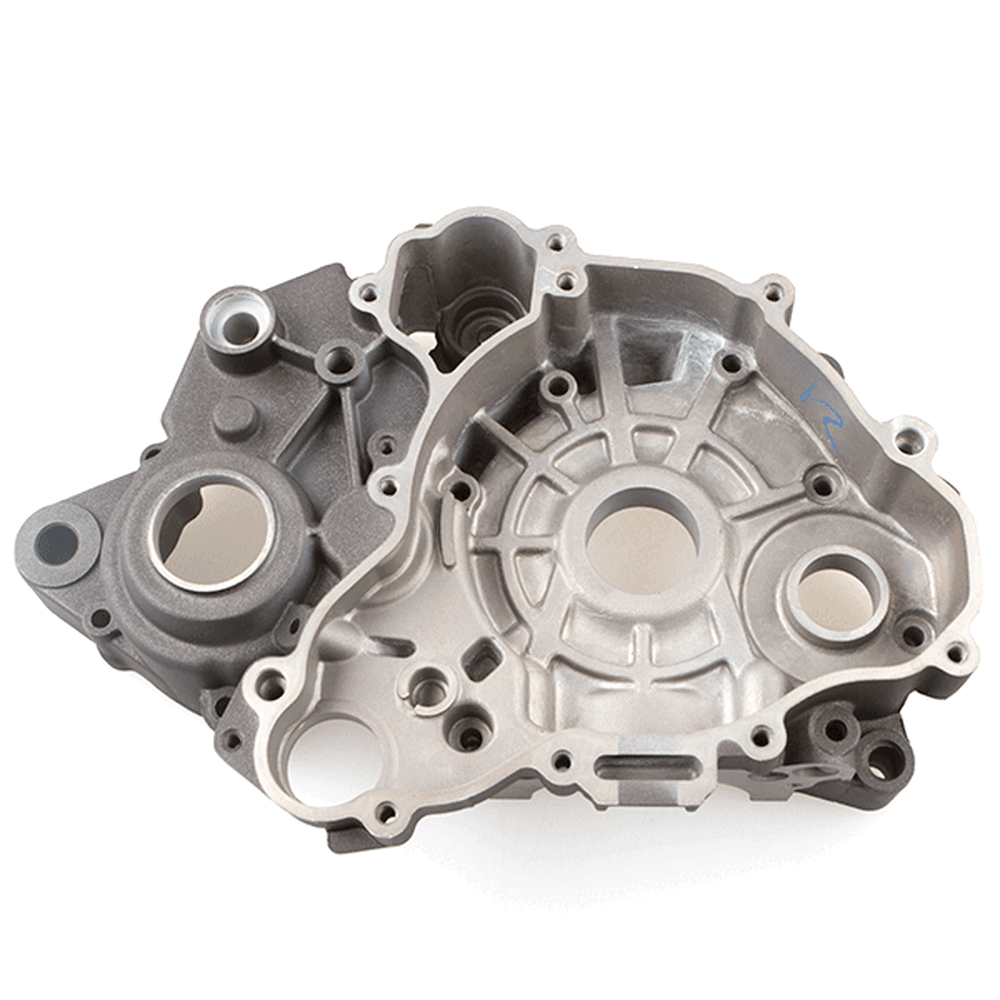

The crankcase in a motorcycle houses the engine's internal components on the side, including parts of the crankshaft, transmission, and oil pump. It provides structural support, protects these components, and ensures proper alignment and lubrication within the engine.

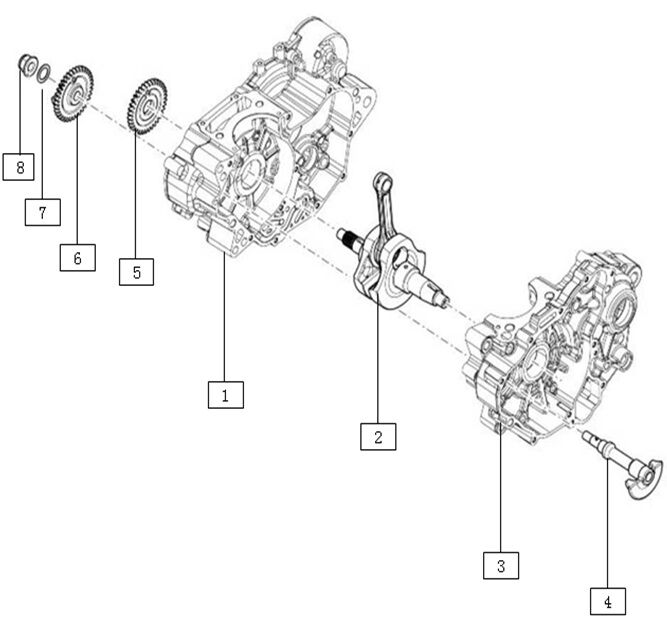

Manufacturer | Model | Diagram |
---|---|---|
UM | DSR Adventure 125 [UM125-ADV] | View parts diagram |
DSR Adventure TT [UM125-ADT] | View parts diagram | |
DSR EX [UM125-DEX] | View parts diagram | |
DSR SM [UM125-DSM] | View parts diagram | |
Scrambler Classic 125 [UM125-SC] | View parts diagram | |
Scrambler S 125 [UM125-SS] | View parts diagram | |
