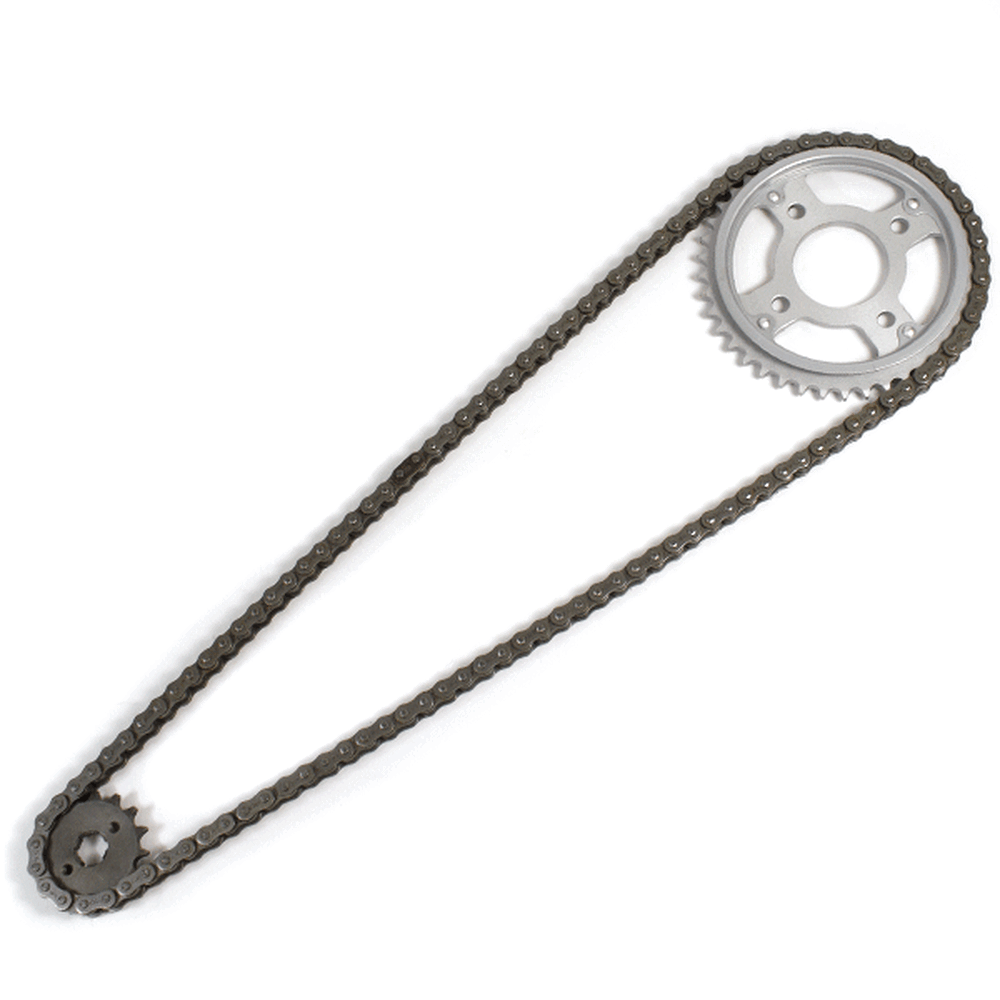

This kit includes the front and rear sprockets fitted to the bike as factory standard, with the correct length chain included.

O ring chains have multiple benefits over standard chains, including reduced maintenance intervals and an increased lifespan.

Suitable only for models with a rear disc brake.

SPKF043 Description Lextek Front Sprocket 428-15T K157FMI

The front sprocket, also known as the countershaft sprocket, is a key component in a motorcycle's drivetrain. Located at the output shaft of the engine or transmission, it engages with the motorcycle's chain to transmit power from the engine to the rear wheel. The front sprocket works in conjunction with the rear sprocket and chain to control the motorcycle’s gearing, affecting acceleration, top speed, and overall performance. Its size and number of teeth influence the bike’s torque and speed characteristics.

Specifications

Spline Diameter: 20mm
Spline Quantity: 18
Spline Width: 1.2mm
Type: Sprocket

CHNX006 Description Lextek Motorcycle O-Ring Drive Chain 428-136Links Gold

The X-ring chain is a specialized type of sealed roller chain used to transfer mechanical power. Like the standard O-ring chains it is also used in high performance motorcycles. It uses X-ring seal to keep lubricant (usually grease) in place.

Details

O-Ring chains may come with a split link or rivet link fitment.

Specifications

Motorcycle Drive Chain Pitch: 428
Quantity of Links: 136
Classic Part: No
Colour: Gold
Country/Region of Manufacture: China
Items included: Chain
Machine Type: Street Motorcycle
Manufacturer Warranty: 12 Months
Material: Steel
Performance Part: No
Pitch Size: 428
Reference OE/OEM Number: 110100090
Type: Drive Chain
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

SPKR076 Description Lextek Rear Sprocket 428-51T 4 Bolt Fixing

The rear sprocket on a motorcycle is a key component of the drivetrain system, located on the rear wheel hub. It works in conjunction with the front sprocket and the chain to transmit power from the engine to the rear wheel, propelling the motorcycle forward. The rear sprocket features a series of teeth that mesh with the chain, and its size affects the motorcycle’s gearing and performance characteristics. A larger rear sprocket increases torque and acceleration, while a smaller one improves top speed and fuel efficiency. Proper maintenance and alignment of the rear sprocket are essential for optimal drivetrain performance and safety.

Specifications

Mounting Hole PCD: 90mm
Bolt Hole Diameter: 10mm
Inner Diameter: 58mm
Bolt Hole Quantity: 4
Teeth: 51
Pitch: 428
Type: Sprocket
