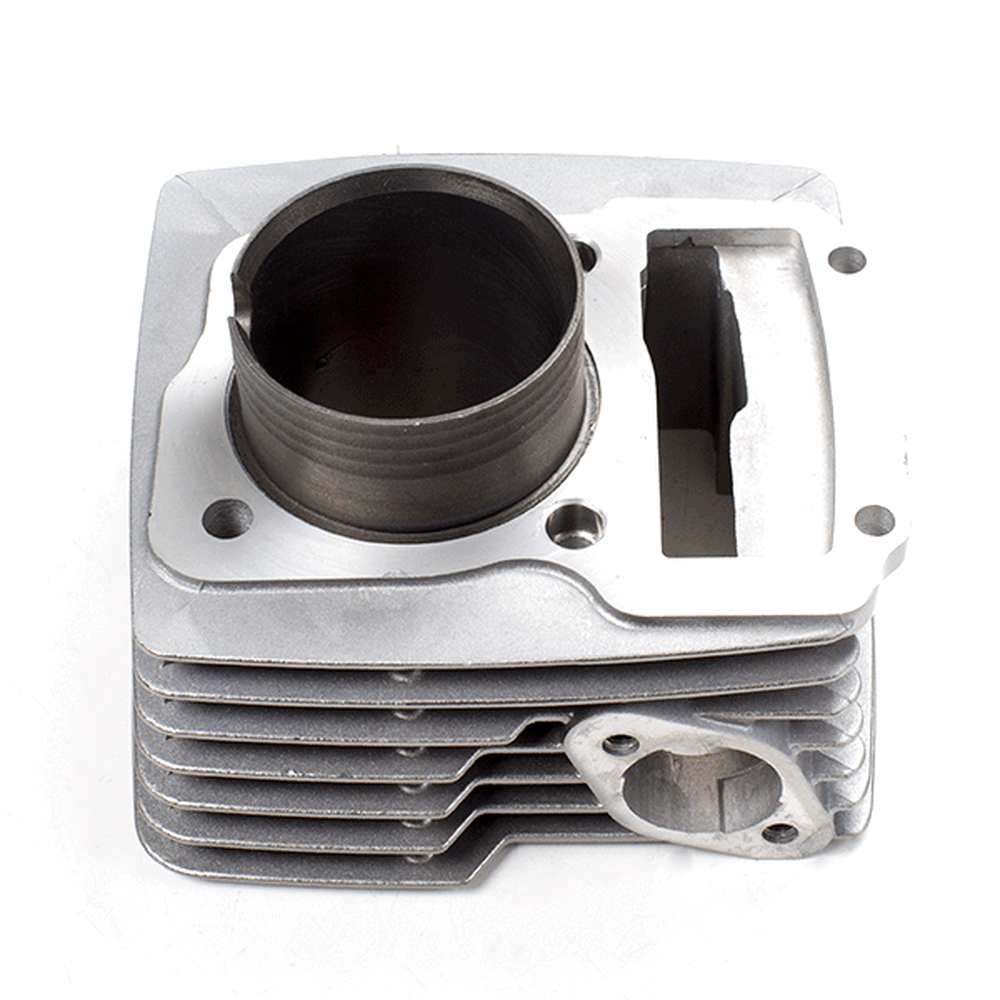

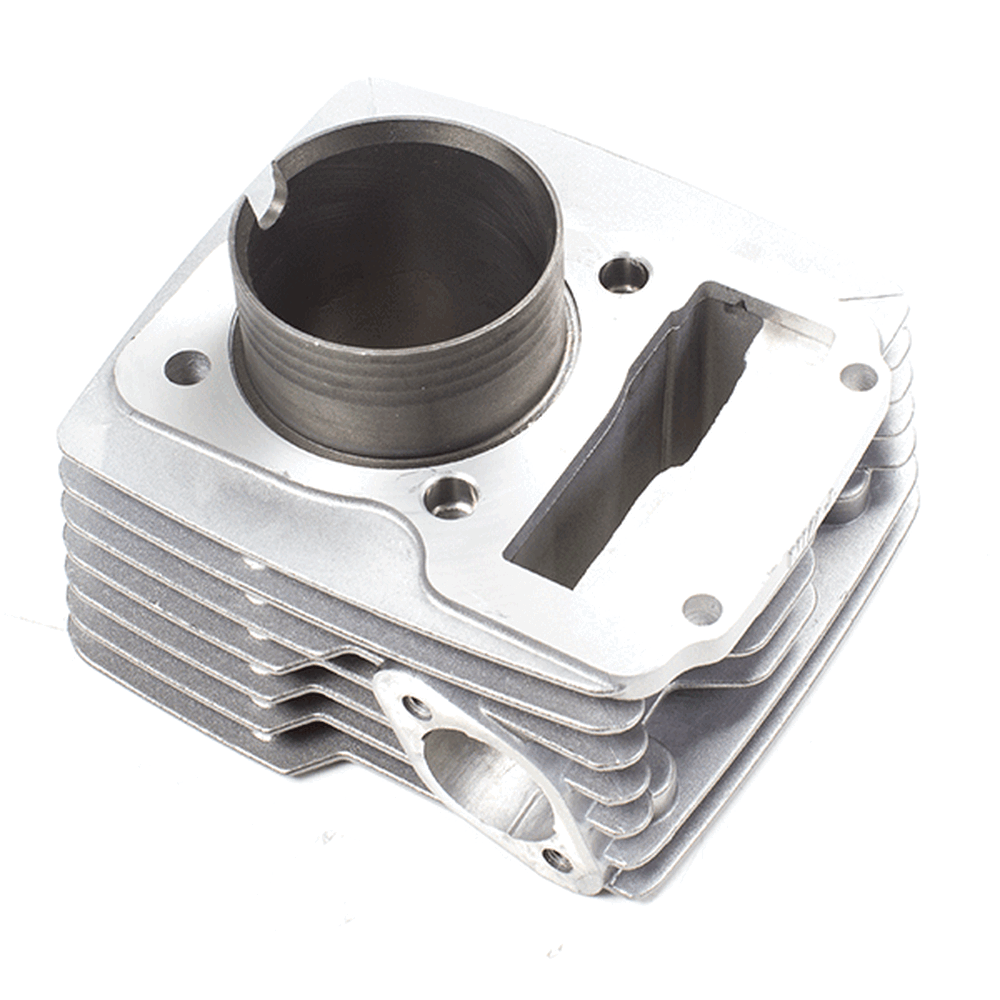

CYL038"In the category of Cylinders and Cylinder heads, Cylinders"
The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
| Manufacturer | Model | Diagram |
|---|---|---|
| Kiden | Aquarius 125 [KD125-G] | |
| Aries 125 [KD125-J] | ||
| Pisces 125 [KD125-K] | ||
| Lexmoto | Assault 125 EFI [HJ125-J-E4] | View parts diagram |
| Assault 125 Euro 5 [HJ125-J-E5] | View parts diagram | |
| Assault 125 [HJ125-J] | View parts diagram | |
| Isca 125 Euro 5 [SK125-L-E5] | View parts diagram | |
| Isca 125 [SK125-L] | View parts diagram | |
| Oregon 125 [HJ125-K] | View parts diagram | |
| Zontes | Firefly 125 [FIREFLY] | |
| Javelin 125I [JAVELIN125] | ||
| Mantis 125 [MANTIS125] | ||
| Rocketman 125I [ROCKETMAN125] | ||
| Scorpion 125I [SCORPION125] | ||
