"In the category of Cylinders and Cylinder heads, Cylinders"

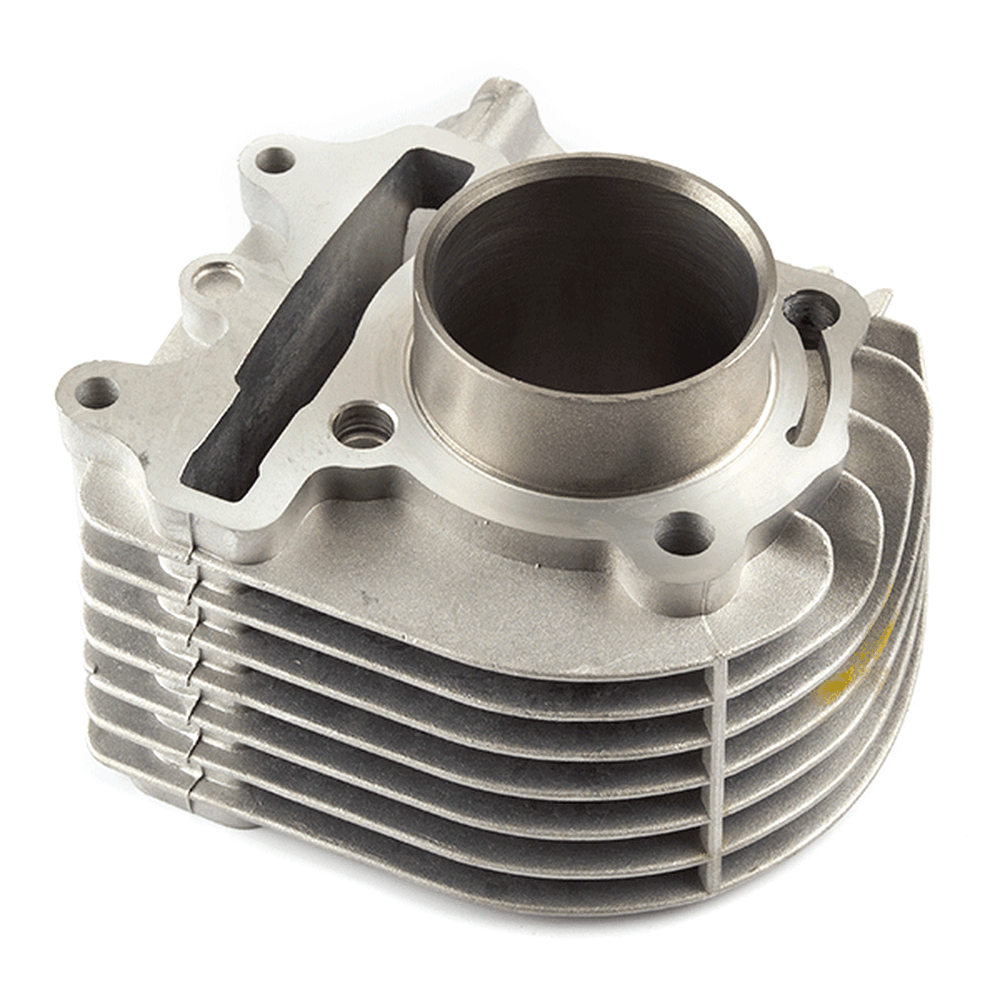

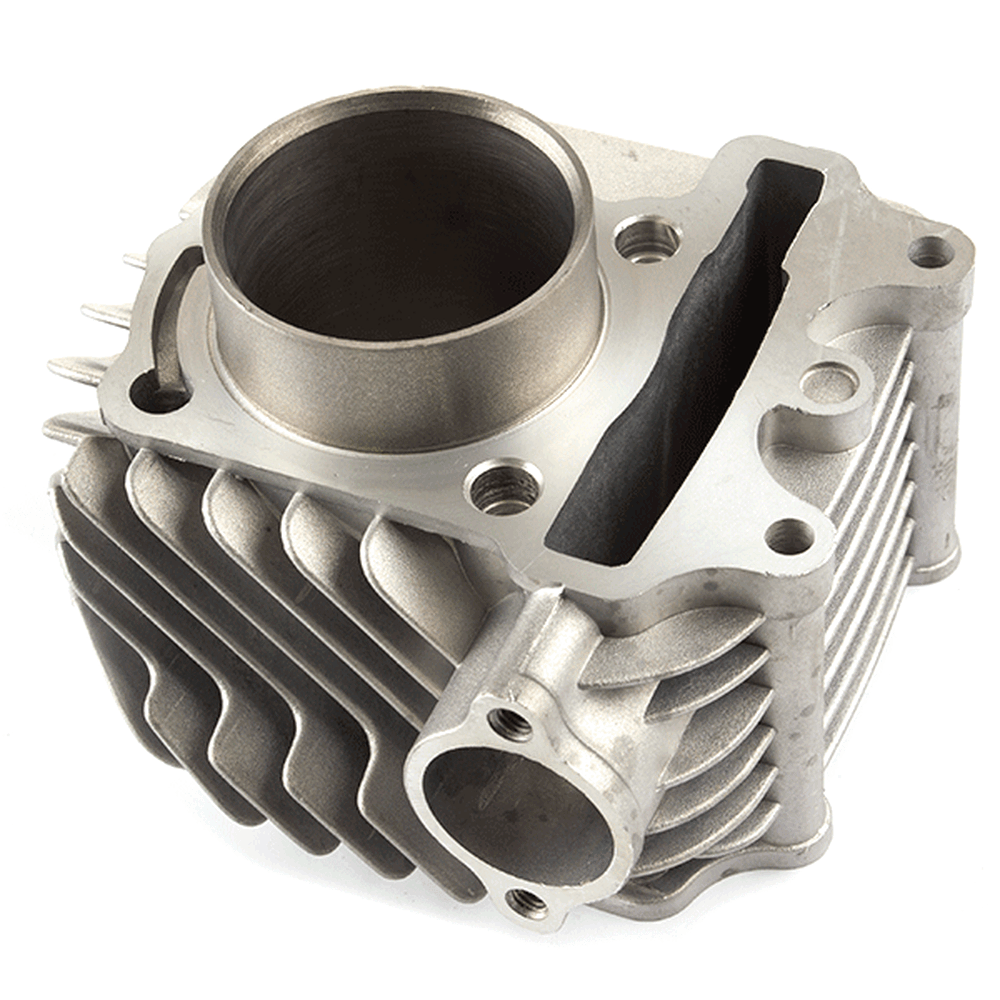

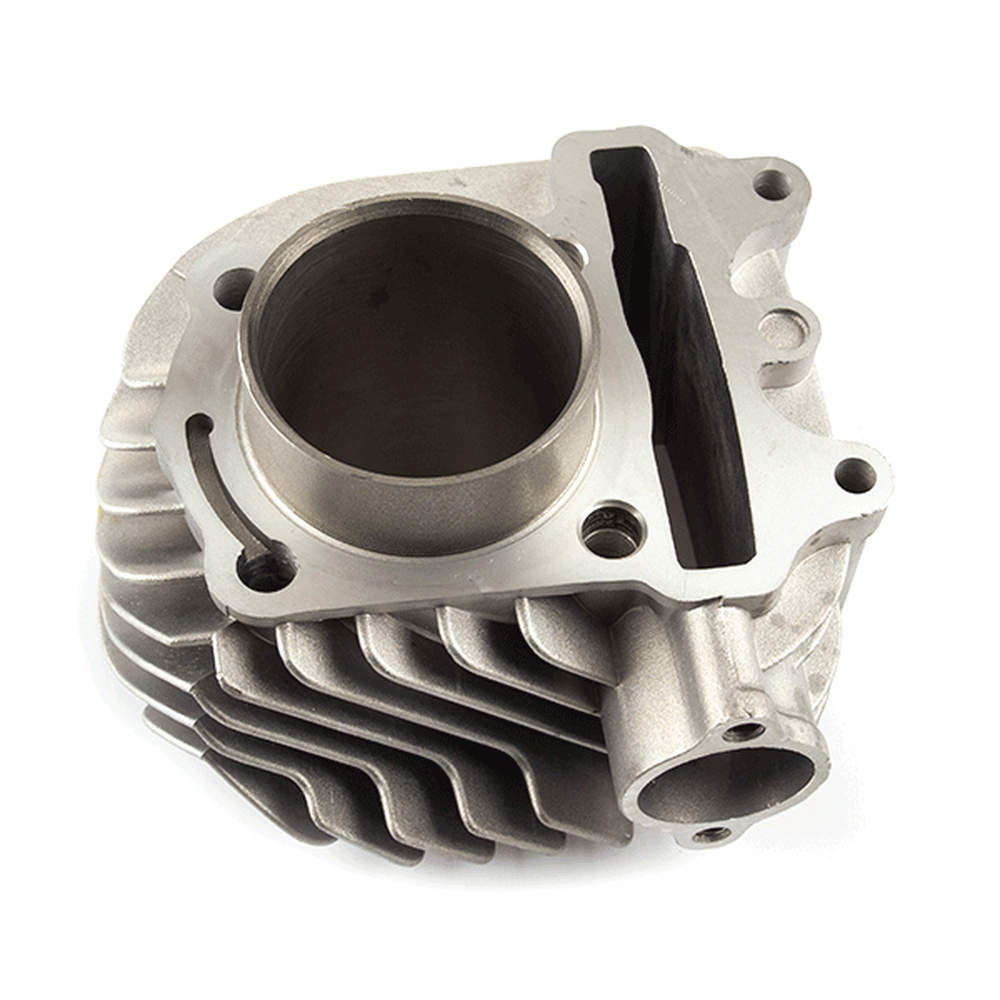

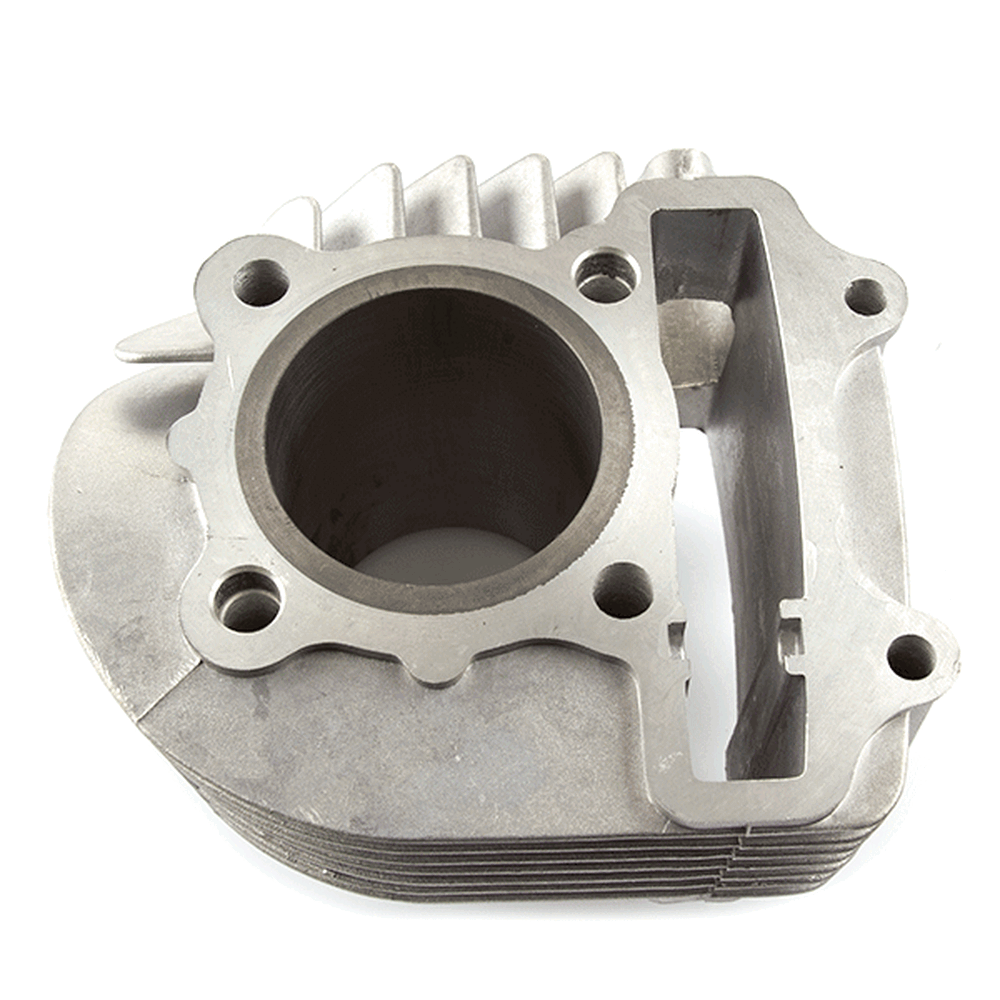

The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Dart 125 [WY125T-100] | |

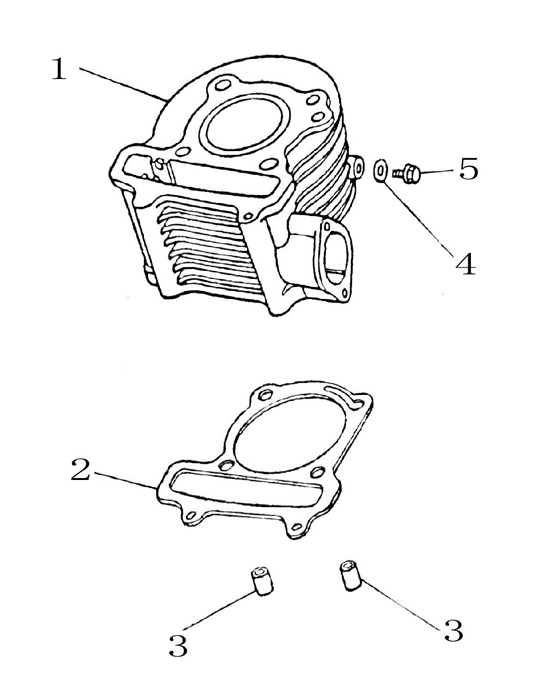

| FMR 125 EFI [WY125T-74R-E4] | View parts diagram | |
| FMR 125 [WY125T-74R] | View parts diagram | |
| FMX 125 EFI [WY125T-108-E4] | View parts diagram | |
| Vienna 125 EFI [WY125T-121-E4] | View parts diagram | |
| Vienna 125 [WY125T-121] | View parts diagram | |
| Pulse | Lightspeed 2 125 [WY125T-74] | |
