CYL071

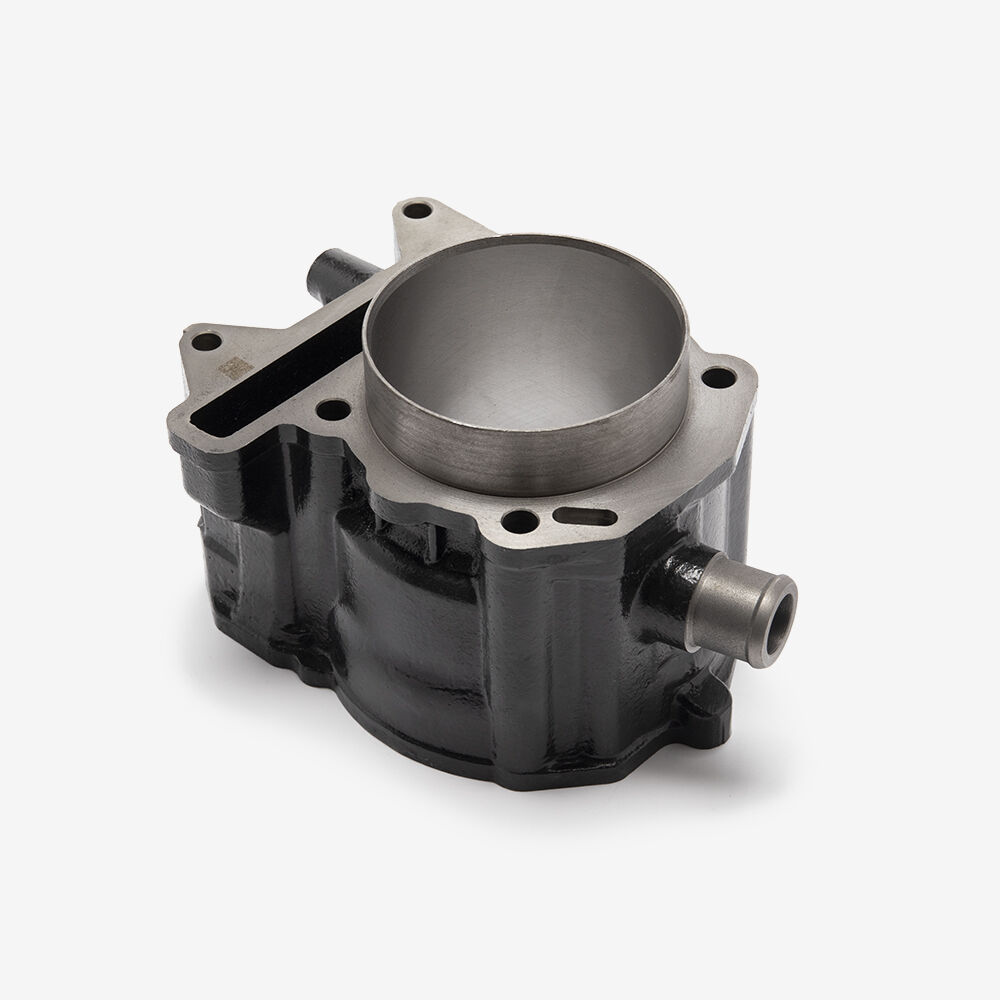

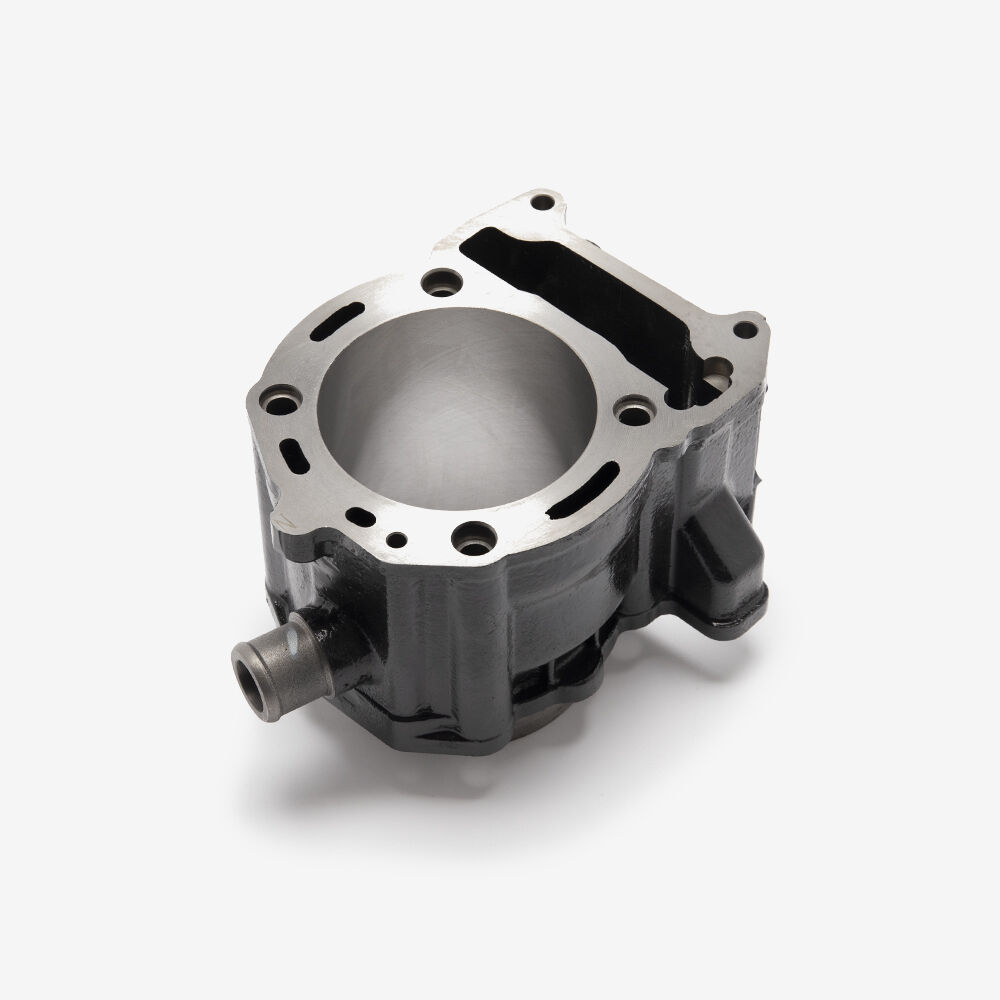

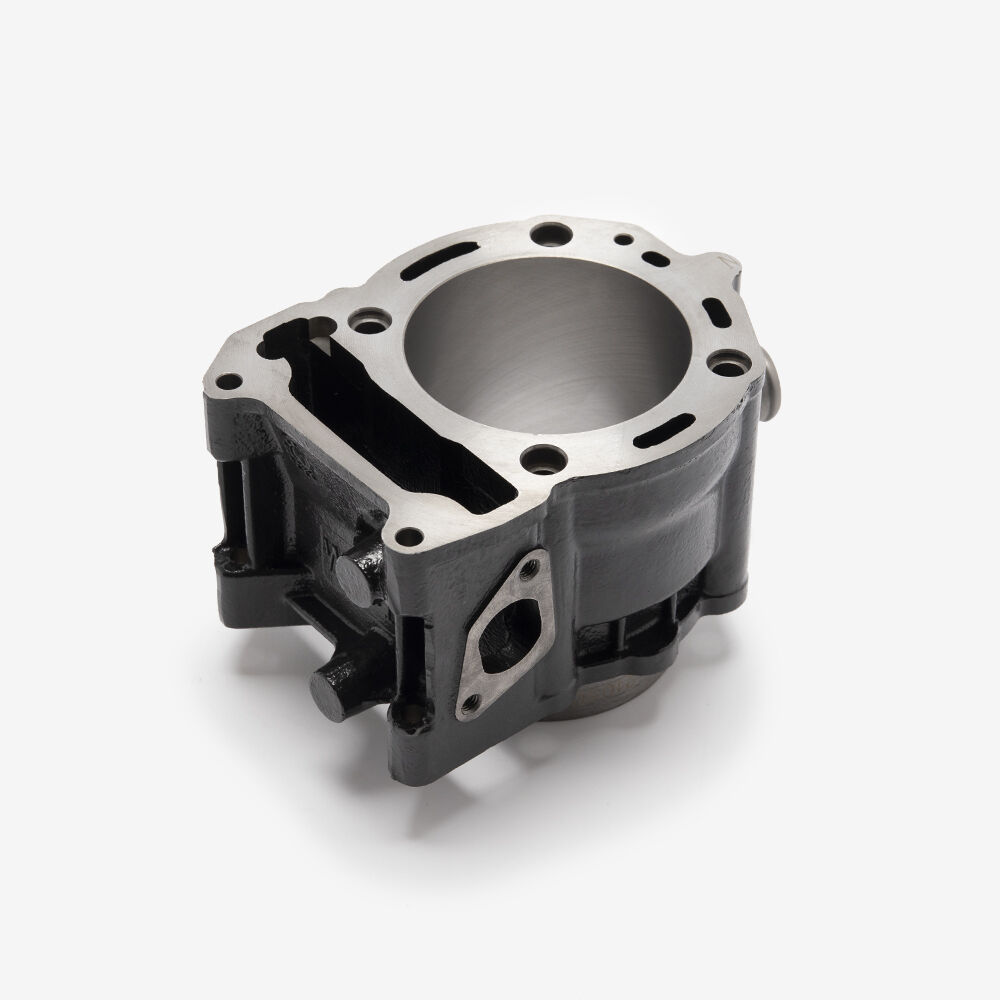

The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Aura 300 Euro 5 [LJ300T-18-E5] | View parts diagram |
XDV 300 Euro 5 [LJ300T-18A-E5] | View parts diagram | |
Longjia | LJ300T-18 | |
LJ300T-18A | ||
