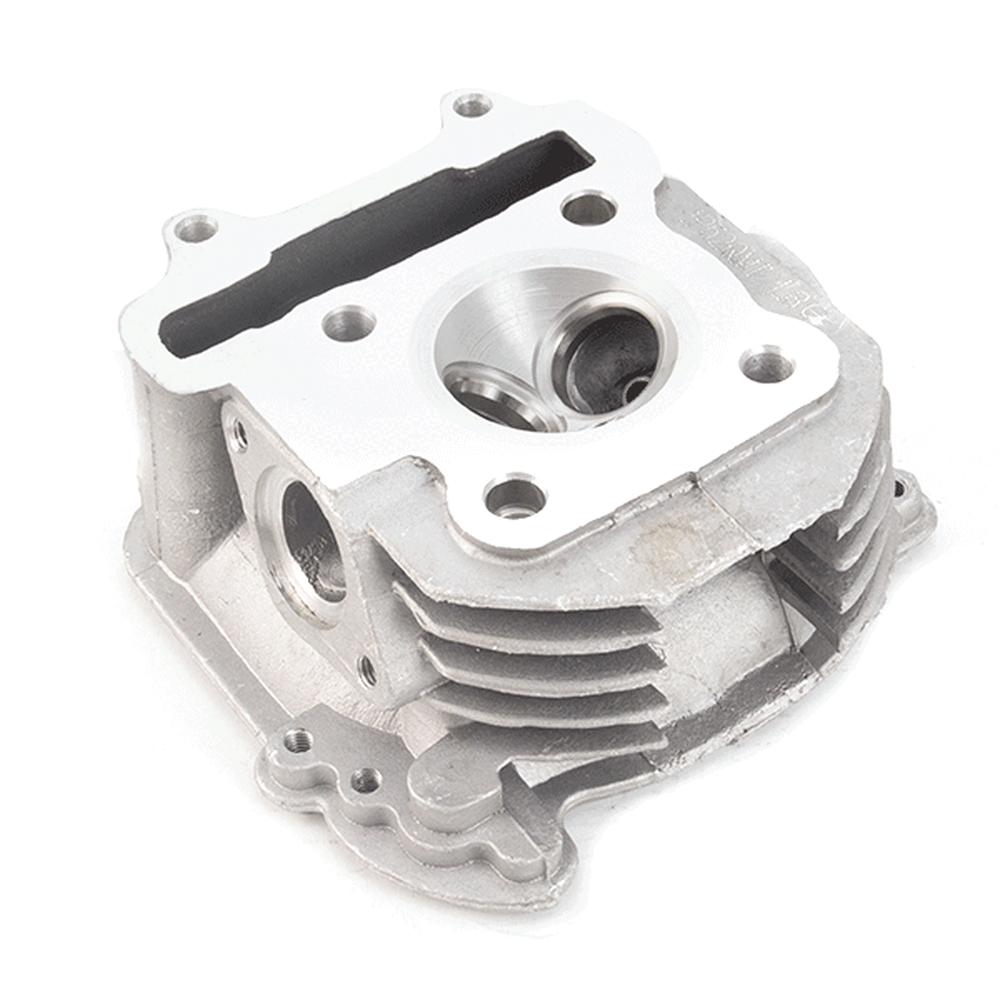

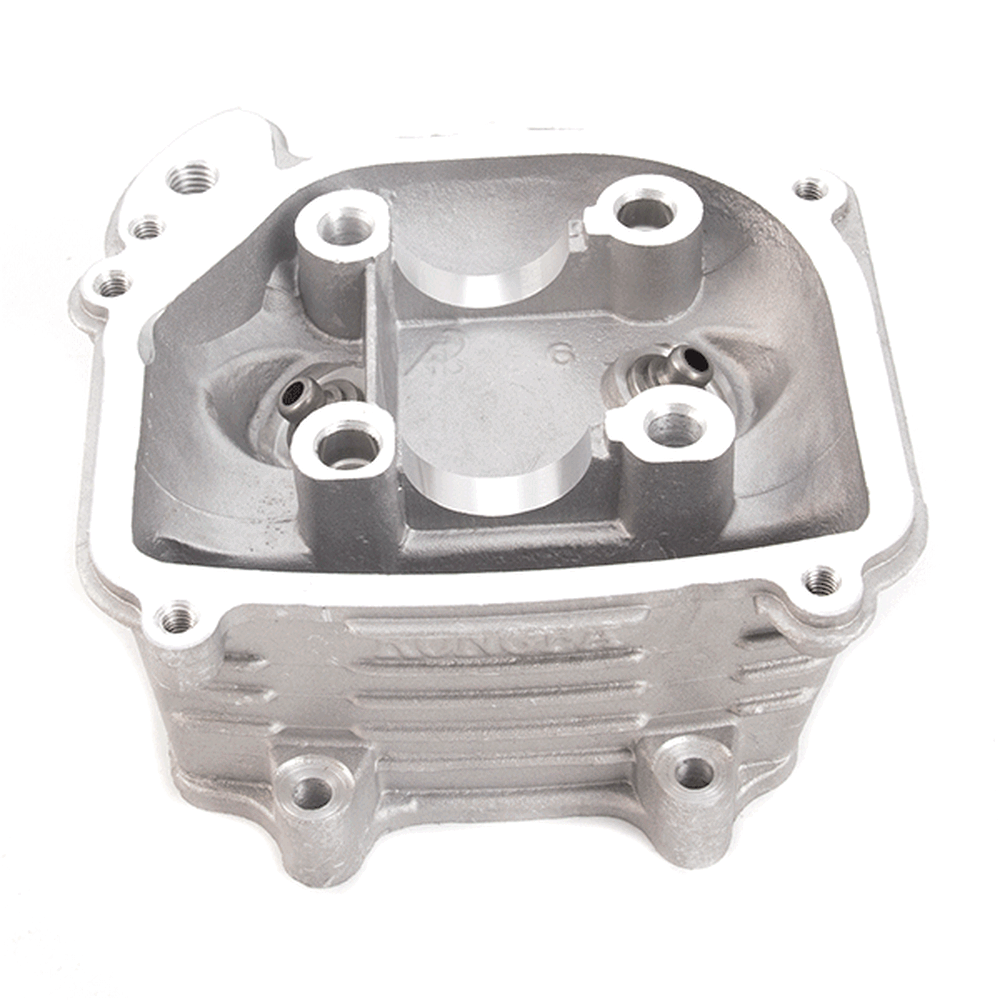

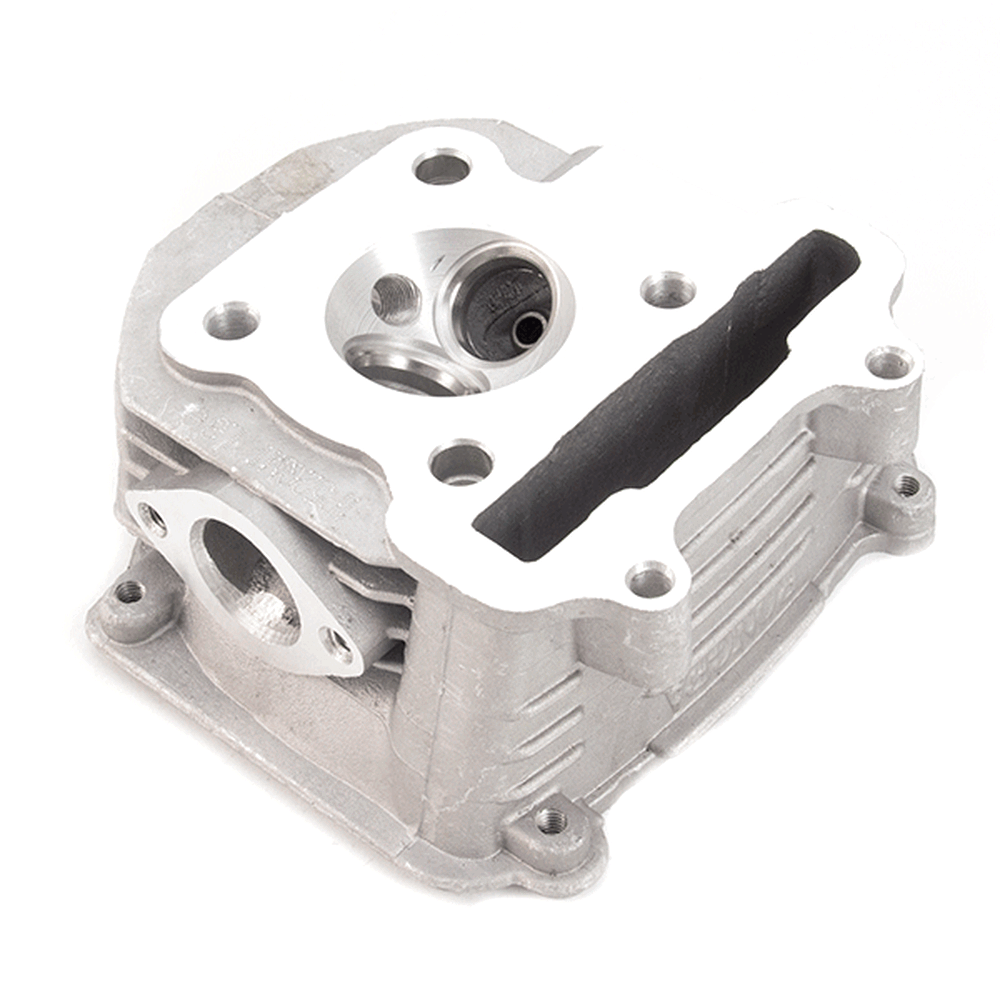

CYLH054"In the category of Cylinders and Cylinder heads, Cylinder Head"
The cylinder head in a motorcycle is a critical engine component that sits atop the cylinder block, housing the intake and exhaust valves, camshaft, and other vital elements. It facilitates the intake of air-fuel mixture and the expulsion of exhaust gases, while also sealing the combustion chamber to ensure efficient engine performance and power generation.
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Milano 125 EFI [FT125T-27-E4] | View parts diagram |
| Monza 125 [ZN125T-34] | View parts diagram | |
| Titan 125 [ZN125T-8F] | View parts diagram | |
| Valletta 125 [ZN125T-Y] | View parts diagram | |
| Romet | RXL 125 [RXL125] | |
| Sinnis | Harrier EFI [ZN125T-22E] | |
| Shuttle 125 EFI [ZN125T-7S] | ||
| Zen 125 EFI [ZN125T-F10] | ||
