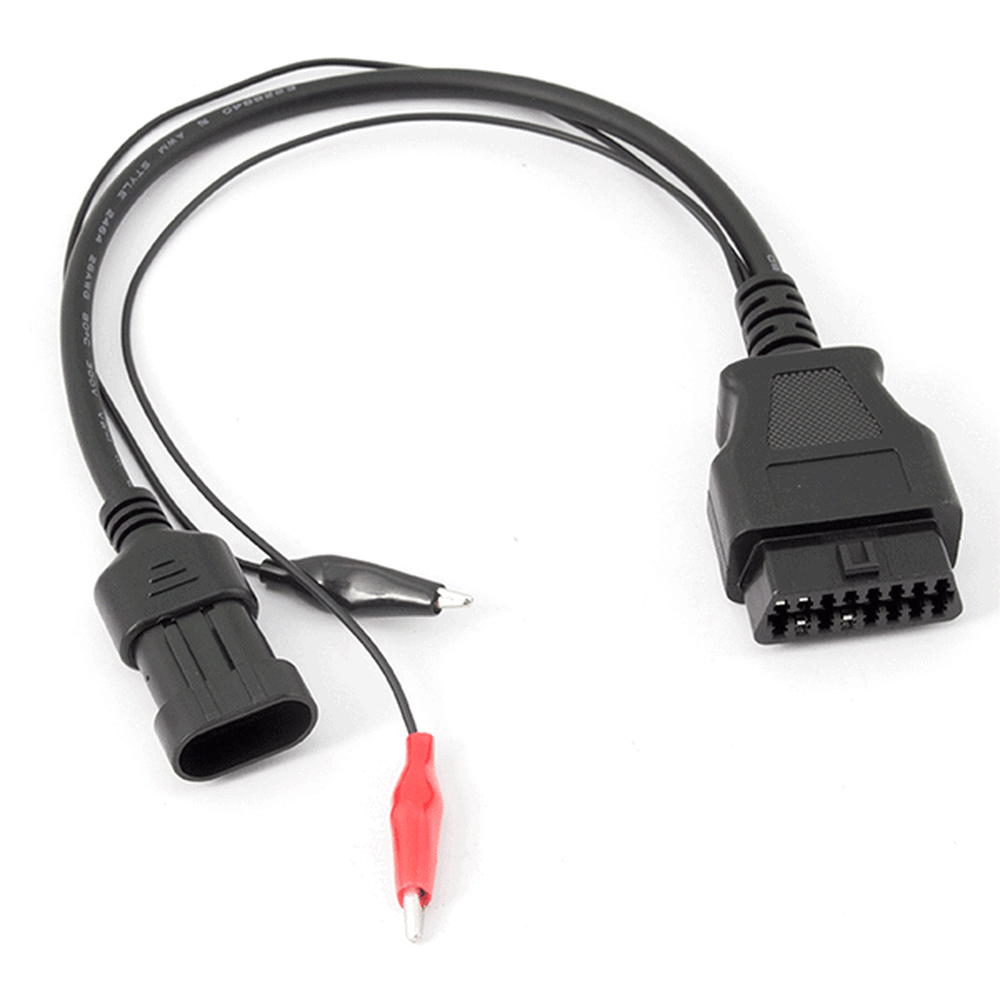

DIAGN006
Diagnostics equipment for motorcycles is used to analyze and troubleshoot issues within the engine and other systems. It typically includes tools for reading error codes, monitoring live data, and performing system tests to ensure optimal performance and identify any faults or maintenance needs.
Manufacturer | Model | Diagram |
---|---|---|
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
DSR Adventure 125 [UM125-ADV] | View parts diagram | |
DSR Adventure TT [UM125-ADT] | View parts diagram | |
DSR EX [UM125-DEX] | View parts diagram | |
DSR SM [UM125-DSM] | View parts diagram | |
Renegade Commando 125 [UM125-CO] | View parts diagram | |
Renegade Sport 125 [UM125-SP] | View parts diagram | |
Renegade Sport S 125 [UM125-RS] | View parts diagram | |
Scrambler Classic 125 [UM125-SC] | View parts diagram | |
Scrambler S 125 [UM125-SS] | View parts diagram | |
Xtreet RC 125 [UM125-XT] | View parts diagram | |
