Motorcycle exhaust pipes are fitted with silencers at the end to reduce the noise from the engine. The silencer attached at the end of the exhaust pipes causes the gases to expand so that any noise is expelled. The linings and perforations in the silencer also help lower the volume of the engine.

MP4 Description Lextek Stainless Steel MP4 Megaphone Exhaust Silencer 300mm 51mm

Contents

Stainless Steel Silence

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

Exhaust Clamp

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe.  Please search using make & model details for compatible pipes.  Otherwise modification may be required.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

This product does not meet the relevant noise or emission requirements for street or highway use.

Specifications

Sleeve Length: 300mm
Length of Outer Cable: 440mm
Height: 124mm
Inlet Diameter: 51mm
Outlet Diameter: 60mm
Material: 304 Grade Stainless Steel
Weight: 1.420kg
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200063
Type: Silencer

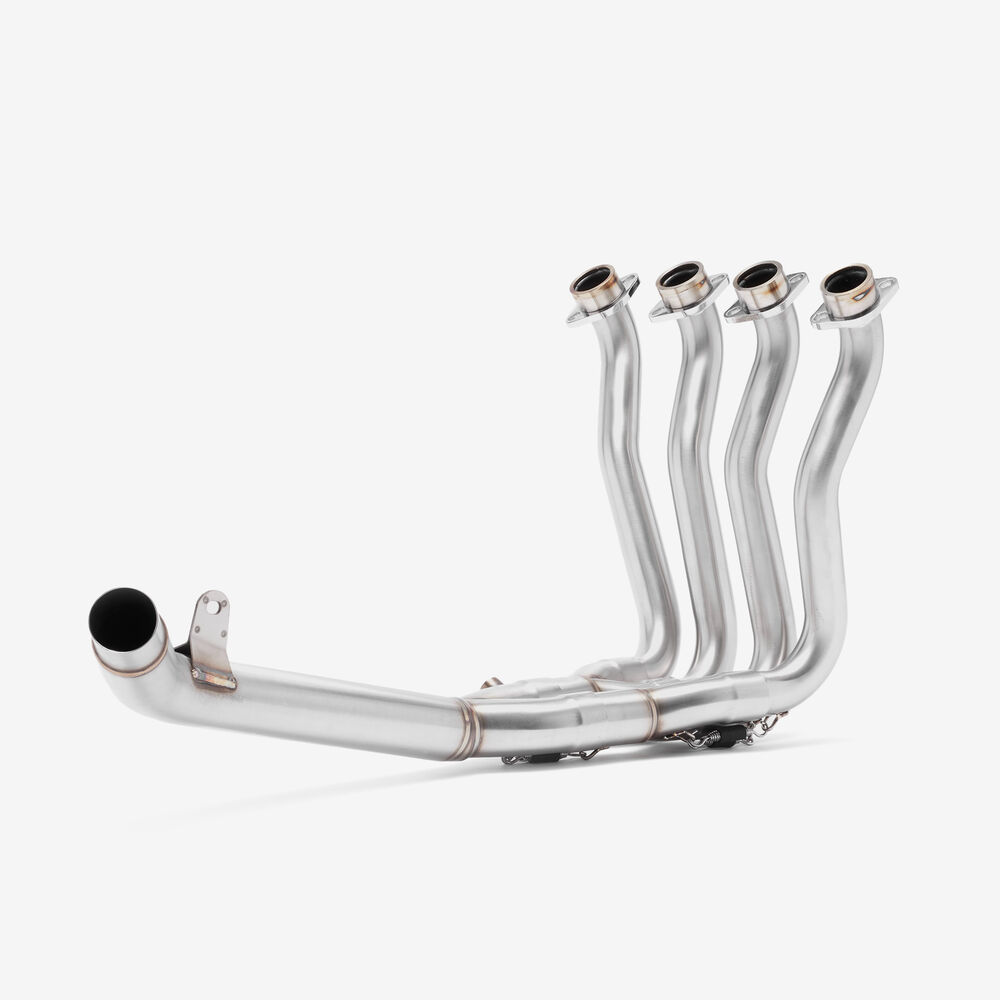

DWNPP091 Description Lextek Stainless Steel Header for Suzuki GSX-S 1000 (15-20)

Details

Lextek Downpipes have been meticulously engineered to meet rigorous standards, providing the quality you would expect from cost effective solutions to achieving the enhanced performance and sound you want for your Suzuki GSX-S 1000 (15-20).

Crafted from premium 304-grade stainless steel offering superior corrosion resistance and durability, utilising precision TIG welding further ensures that every joint is strong, secure, providing optimal exhaust gas flow. Reinforcing these features ability to withstand the test of time under the most demanding conditions, Lextek exhausts are used in motorsports of all levels across the globe.

Designed with you in mind, our downpipes are a direct replacement for the original equipment (OE) part, allowing for a seamless installation process.The exit point of the downpipe aligns perfectly with the OE component, ensuring compatibility with the Lextek range of Slip-on kits, as well as the OE silencer and any other aftermarket silencers you may wish to use.This means you can easily customize your bikes exhaust system to suit your preferences, whether your looking for a particular sound, performance characteristic, or aesthetic.

Lextek downpipes are performance free flowing exhausts designed for closed circuit use only.

Specifications

Lambda Sensor Port Thread Diameter: M12
Lambda Sensor Port Thread Pitch: 1.25mm
Classic Part: No
Features: Bare
Items included: Exhaust Header
Machine Type: Street Motorcycle
Manufacturer Warranty: Lifetime
Material: Stainless Steel
Performance Part: Yes
Placement on Vehicle: Front
Reference OE/OEM Number: 125100234
Type: Exhaust Header
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

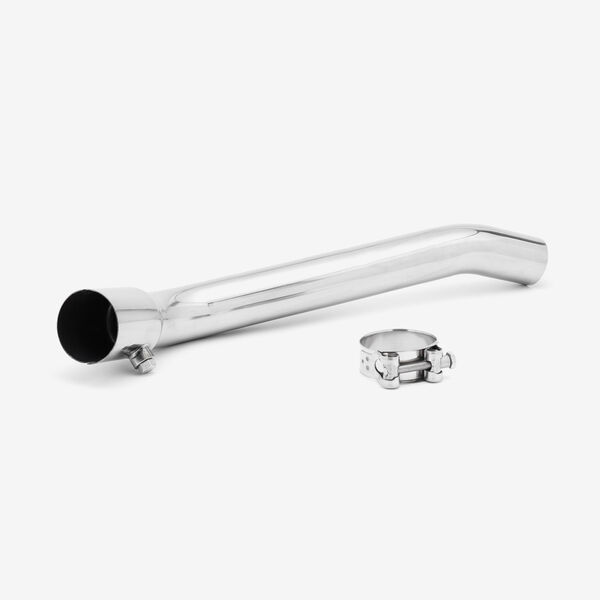

LNKPP107 Description Lextek Stainless Steel Link Pipe for Suzuki GSX-S 1000 F (15-20)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

IMPORTANT INFORMATION

This link pipe removes the OEM heat shield.

This link pipe is designed to work with our range of 51mm end cans

Specifications

Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP107
Manufacturer Warranty: Lifetime
Material: Stainless Steel
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100294
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

GSKEX015 Description Lextek Exhaust Gasket 45 x 36 x 4mm [Qty: 4]

The exhaust gasket in a motorcycle seals the connection between the exhaust manifold and the engine head, preventing exhaust gas leaks and ensuring proper exhaust flow. It plays a vital role in maintaining engine efficiency, performance, and noise reduction.

Details

Reduce exhaust leaks and ensure a tight seal with this high quality exhaust gasket

Specifications

Outside Diameter: 45mm
Inside Diameter: 36mm
Bolt Hole Quantity: 1
Brand: Lextek
Classic Part: No
Colour: Black
Items included: Gasket
Manufacturer Part Number: GSKEX015
Manufacturer Warranty: 12 Months
Material: Graphite
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 145200072
Type: Exhaust Manifold
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

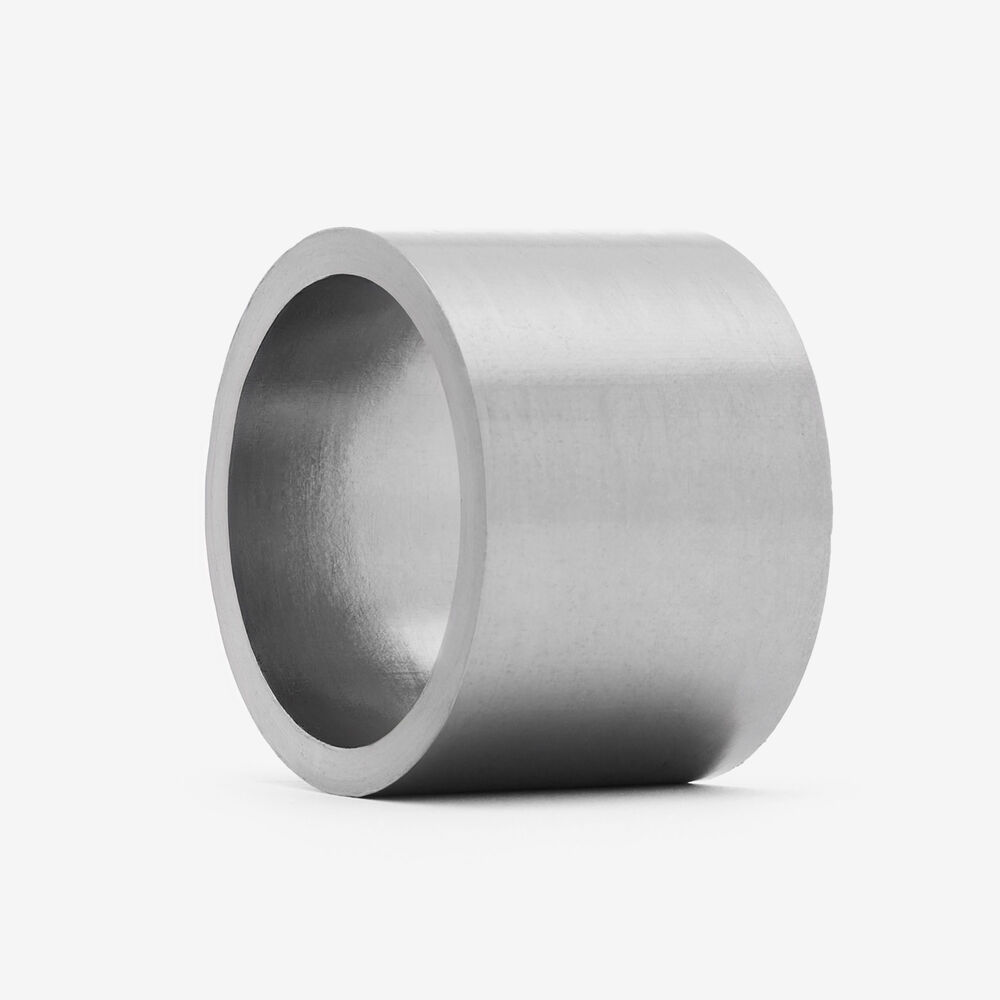

GSKEX054 Description Lextek Exhaust Connection Gasket 45 x 51 x 31mm

The exhaust gasket in a motorcycle seals the connection between the exhaust manifold and the engine head, preventing exhaust gas leaks and ensuring proper exhaust flow. It plays a vital role in maintaining engine efficiency, performance, and noise reduction.

Specifications

Inside Diameter: 45mm
Outside Diameter: 51mm
Length: 31mm
Bolt Hole Quantity: 1
Brand: Lextek
Classic Part: No
Colour: Black
Items included: Gasket
Manufacturer Part Number: GSKEX054
Manufacturer Warranty: 12 Months
Material: Graphite
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 145200026
Type: Exhaust Manifold
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

NUT015 Description Flanged Lock Nut M8

A nut on a motorcycle is a fastener with a threaded hole used in conjunction with a bolt or screw to secure various components. It is essential for maintaining the integrity and stability of the motorcycle’s assembled parts.

Details

Please note, unless specified, the colour and finish of this item may differ from the image shown.

IMPORTANT INFORMATION

Please note, unless specified, the colour and finish of this item may differ from the image shown.

Specifications

Thread size: 8mm
Nut height: 8.75mm
Head size: 13mm
Thread pitch: 1.25mm
Lock Mechanism: Metal Lock
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Nut
Machine Type: Street Motorcycle
Manufacturer Part Number: NUT015
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700059
Type: Nut
Unit Quantity: 1
Universal Fitment: No

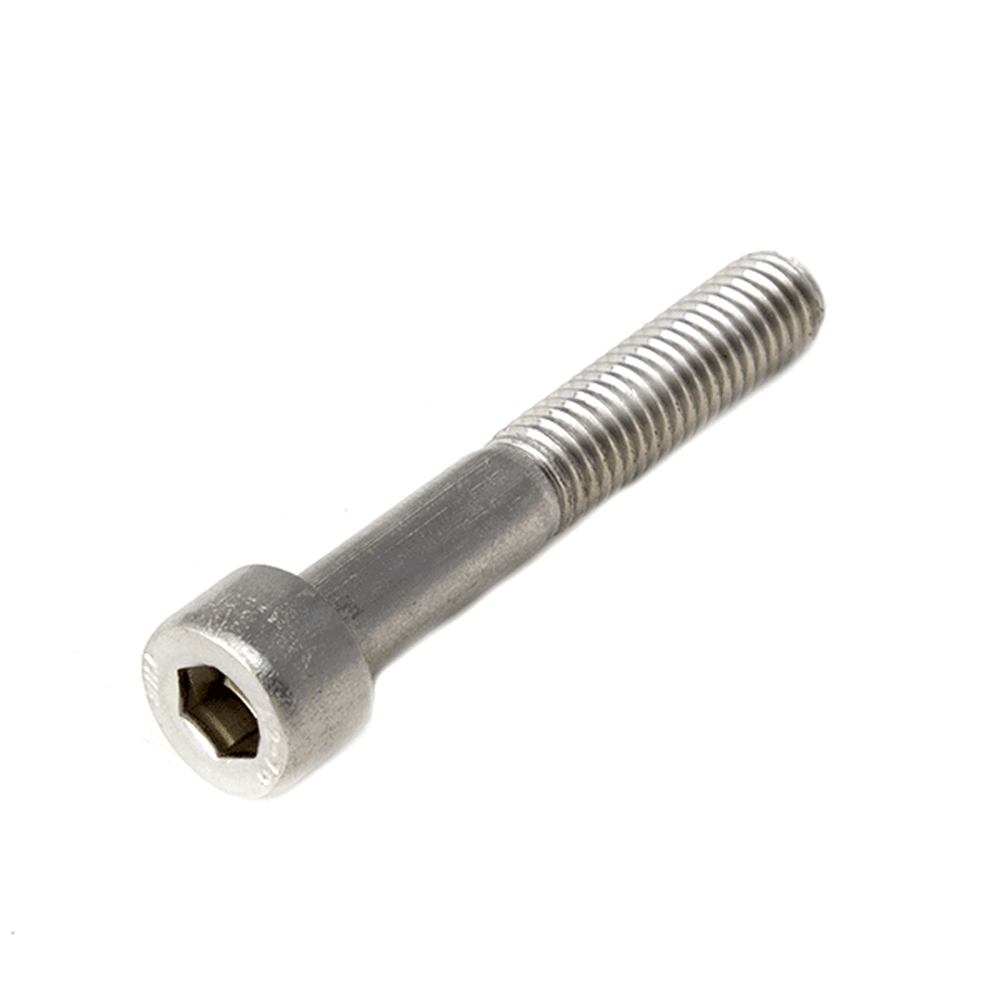

BLTA075 Description Cap Head Socket Allen Bolt Stainless Steel A2 M8 x 50mm

An Allen bolt, also known as a hex socket bolt, is a type of fastener characterized by a hexagonal socket in its head. It requires an Allen wrench (or hex key) for tightening or loosening. Commonly used in motorcycles, Allen bolts are preferred for their clean appearance and the ability to provide high torque without damaging the fastener.
