Contents

Contents

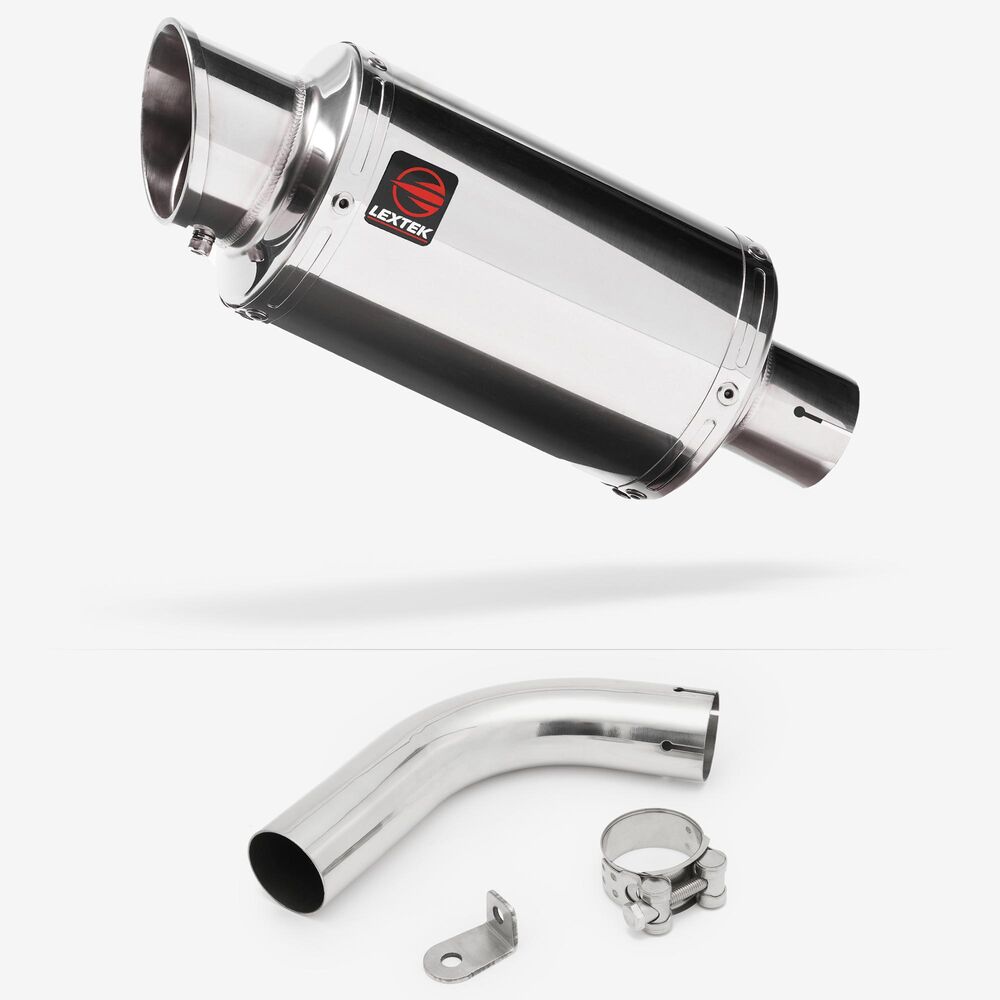

Lextek YP4 S/Steel Stubby Exhaust

Lextek Stainless Steel Link Pipe

YP4 Description Lextek Polished Stainless Steel YP4 Stubby Exhaust Silencer 200mm 51mm

Contents

Stainless Steel Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

Details

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe. Please search using make & model details for compatible pipes. Otherwise modification may be required.

This product does not meet the relevant noise or emission requirements for street or highway use.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

Specifications

Sleeve Length: 200mm
Length of Outer Cable: 340mm
Height: 120mm
Inlet Diameter: 51mm
Outlet Diameter: 73mm
Material: 304 Grade Stainless Steel
Weight: 1.770kg
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200023
Type: Silencer

LNKPP83 Description Lextek Stainless Steel Link Pipe for Honda CB1000R (08-17)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Specifications

Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP83
Manufacturer Warranty: Lifetime
Material: Stainless Steel
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100179
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

NUT147 Description Hex Nut Stainless Steel A2 M6 x 1mm for KD125-K, KD125-G, TD50Q-E4

A nut on a motorcycle is a fastener with a threaded hole used in conjunction with a bolt or screw to secure various components. It is essential for maintaining the integrity and stability of the motorcycle’s assembled parts.

Specifications

Thread size: 6mm
Nut height: 4.80mm
Head size: 10mm
Thread pitch: 1mm
Lock Mechanism: None
Thread Direction: Right
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Nut
Machine Type: Street Motorcycle
Manufacturer Part Number: NUT147
Manufacturer Warranty: 1 Year
Material: Stainless Steel
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700195
Type: Nut
Unit Quantity: 1
Universal Fitment: No

BLT250 Description Flanged Hex Bolt M6 x 50mm for HJ125-J, HJ125-K

A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

Specifications

Length of Outer Cable: 55mm
Head Height: 5mm
Head Size: 8mm
Thread Length: 22mm
Thread Diameter: M6
Thread Pitch: 1mm
Flange Diameter: 11mm
Shank Length: 28mm
Thread Length and Shank in Total: 50mm
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Bolt
Machine Type: Street Motorcycle
Manufacturer Part Number: BLT250
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 130900300
Type: Bolt
Unit Quantity: 1
Universal Fitment: No

WSH116 Description Washer Form A M6 Stainless Steel A2

A washer is a flat, typically circular metal or plastic component used in motorcycle assemblies. It is placed between a fastener (like a bolt or nut) and the surface it is fastening to.

Specifications

Brand: CMPO
Classic Part: No
Colour: Stainless Steel A2
Features: Easy Installation
Items included: Washer
Machine Type: Street Motorcycle
Manufacturer Part Number: WSH116
Manufacturer Warranty: 1 Year
Material: Stainless Steel
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700199
Type: Washer
Unit Quantity: 1
Universal Fitment: No
