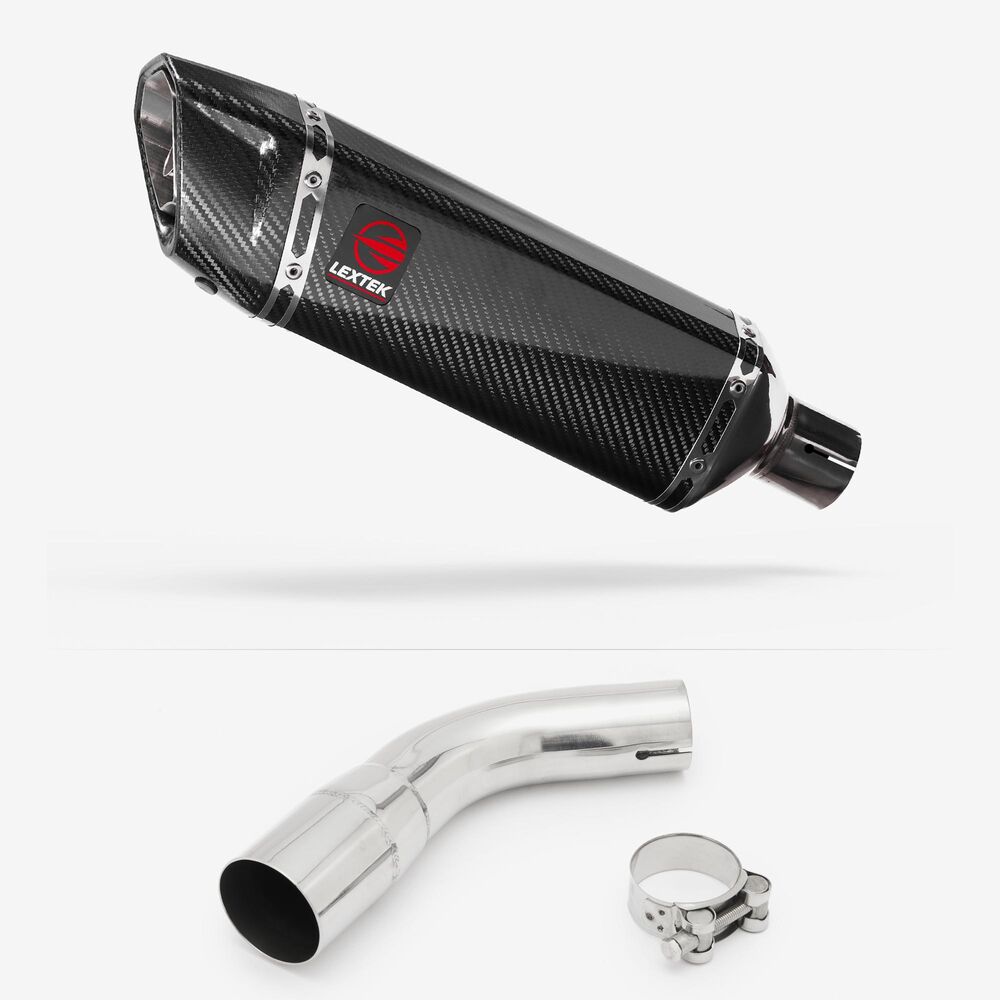

SP9C Description Lextek Gloss Carbon Fibre SP9C Exhaust Silencer 300mm 51mm

Contents

Full Carbon Fibre Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

52-55mm Exhaust Clamp

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe.  Please search using make & model details for compatible pipes.  Otherwise modification may be required.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

This product does not meet the relevant noise or emission requirements for street or highway use.

Specifications

Sleeve Length: 300mm
Length of Outer Cable: 465mm
Overall Height: 120mm
Overall Width: 105mm
Inlet size: 51mm
Outlet Width: 60mm
Outlet Height: 60mm
Material: 3K thermally shielded carbon fibre, 304 grade stainless steel
Weight: 2.10KG
Classic Part: No
Colour: Gloss Carbon Fibre Silencer
Features: Easy to Replace
Finish: Polished
Machine Type: Street Motorcycle
Manufacturer Warranty: Lifetime Warranty
Mounting Style: Slip-on
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125200213
Type: Silencer
Unit Type: Unit
Universal Fitment: No

LNKPP76 Description Lextek Stainless Steel Link Pipe for Suzuki SV650 (16-22)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Specifications

Inner Diameter (Downpipe End): 38.5mm
Outer Diameter (Silencer End): 51mm
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Warranty: Lifetime
Material: Stainless Steel
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100161
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

NUT015 Description Flanged Lock Nut M8

A nut on a motorcycle is a fastener with a threaded hole used in conjunction with a bolt or screw to secure various components. It is essential for maintaining the integrity and stability of the motorcycle’s assembled parts.

Details

Please note, unless specified, the colour and finish of this item may differ from the image shown.

IMPORTANT INFORMATION

Please note, unless specified, the colour and finish of this item may differ from the image shown.

Specifications

Thread size: 8mm
Nut height: 8.75mm
Head size: 13mm
Thread pitch: 1.25mm
Lock Mechanism: Metal Lock
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Nut
Machine Type: Street Motorcycle
Manufacturer Part Number: NUT015
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700059
Type: Nut
Unit Quantity: 1
Universal Fitment: No

BLTA076 Description Cap Head Socket Allen Bolt Stainless Steel A2 M8 x 55mm

An Allen bolt, also known as a hex socket bolt, is a type of fastener characterized by a hexagonal socket in its head. It requires an Allen wrench (or hex key) for tightening or loosening. Commonly used in motorcycles, Allen bolts are preferred for their clean appearance and the ability to provide high torque without damaging the fastener.

WSH117 Description Stainless Steel A2 Washer Form A M8 x 16mm

A washer is a flat, typically circular metal or plastic component used in motorcycle assemblies. It is placed between a fastener (like a bolt or nut) and the surface it is fastening to.

Specifications

Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Washer
Machine Type: Scooter
Manufacturer Part Number: WSH117
Manufacturer Warranty: 1 Year
Material: Stainless Steel
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700200
Type: Washer
Unit Quantity: 1
Universal Fitment: No

EXSPCR002 Description Lextek Exhaust Spacer 10mm

The exhaust spacer in a motorcycle provides the necessary gap between the exhaust components and the mounting surfaces, ensuring proper alignment and preventing vibrations or damage to the exhaust system.

Specifications

ID: 10.5mm
OD: 22mm
Length: 10mm
