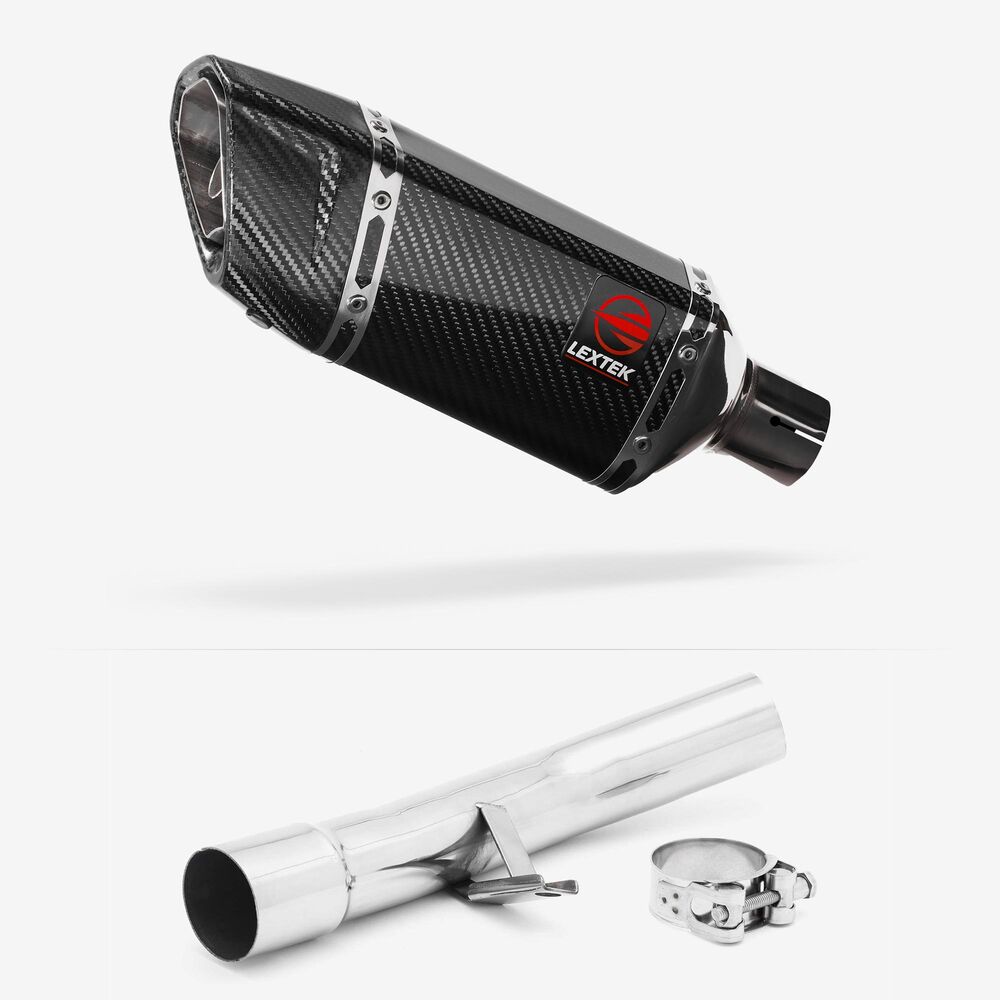

SP11C Description Lextek Carbon Fibre SP11C Exhaust Silencer 200mm 51mm

Contents

Full Carbon Fibre Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

52-55mm Exhaust Clamp

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe.  Please search using make & model details for compatible pipes.  Otherwise modification may be required.

This product does not meet the relevant noise or emission requirements for street or highway use.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

Specifications

Sleeve Length: 200mm
Length of Outer Cable: 305mm
Overall Height: 120mm
Overall Width: 105mm
Inlet size: 51mm
Outlet Width: 60mm
Outlet Height: 60mm
Material: 3K thermally shielded carbon fibre, 304 grade stainless steel
Weight: 1.65KG
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200209
Type: Silencer

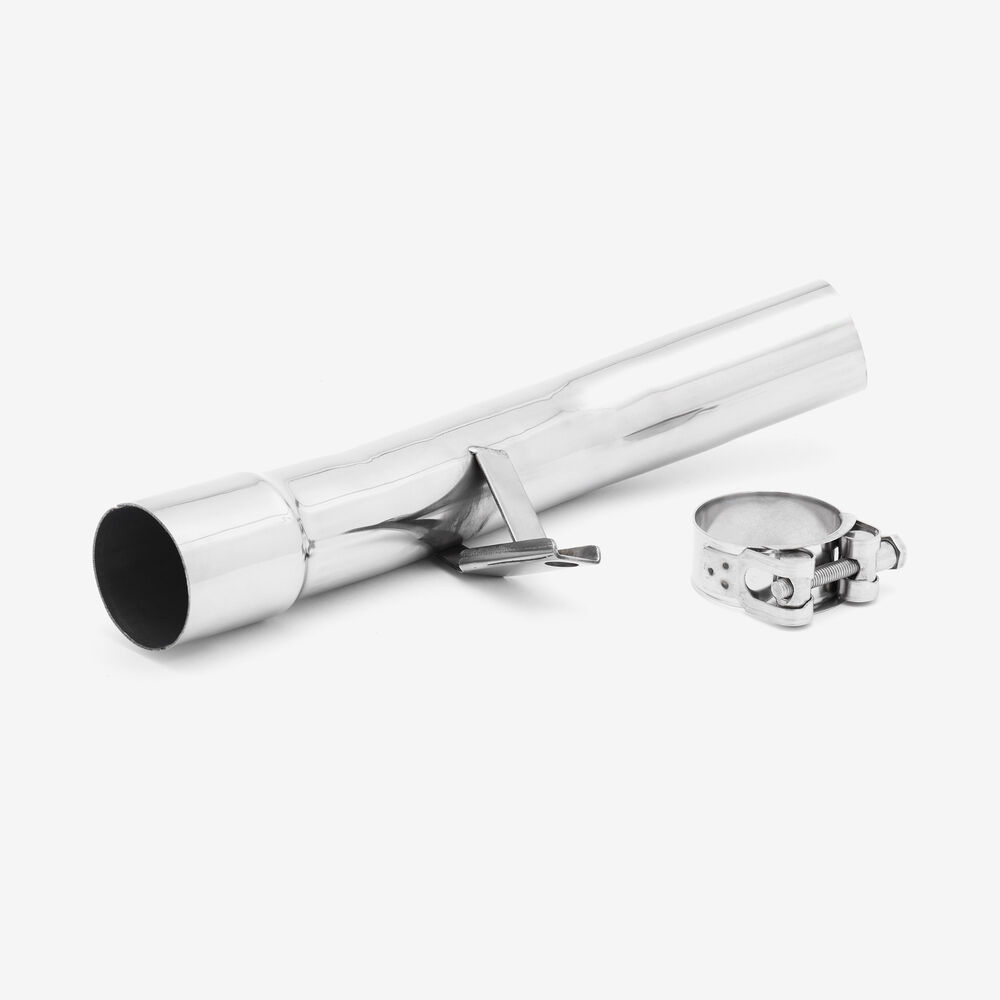

LNKPP012 Description Lextek Stainless Steel Link Pipe for Suzuki GSF650/GSF1250 (07-16) GSX650F (07-16) Wate

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Details

This stainless steel link pipe can be used in conjunction with our 51mm Lextek Performance Exhaust Silencers.

IMPORTANT INFORMATION

Where a catalytic converter is fitted as standard to a motorcycle this link pipe does not replace the catalytic converter.

This is not a de-cat pipe.

This link pipe is for the water cooled model produced from 2007, please check you have the correct model before purchase

Specifications

Material: #304 Grade Stainless Steel
Inner diameter (Downpipe End): 54mm
Outer Diameter (Silencer End): 51mm
Length: 355mm
Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP012
Manufacturer Warranty: Lifetime
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100022
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

NUT015 Description Flanged Lock Nut M8

A nut on a motorcycle is a fastener with a threaded hole used in conjunction with a bolt or screw to secure various components. It is essential for maintaining the integrity and stability of the motorcycle’s assembled parts.

Details

Please note, unless specified, the colour and finish of this item may differ from the image shown.

IMPORTANT INFORMATION

Please note, unless specified, the colour and finish of this item may differ from the image shown.

Specifications

Thread size: 8mm
Nut height: 8.75mm
Head size: 13mm
Thread pitch: 1.25mm
Lock Mechanism: Metal Lock
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Nut
Machine Type: Street Motorcycle
Manufacturer Part Number: NUT015
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700059
Type: Nut
Unit Quantity: 1
Universal Fitment: No

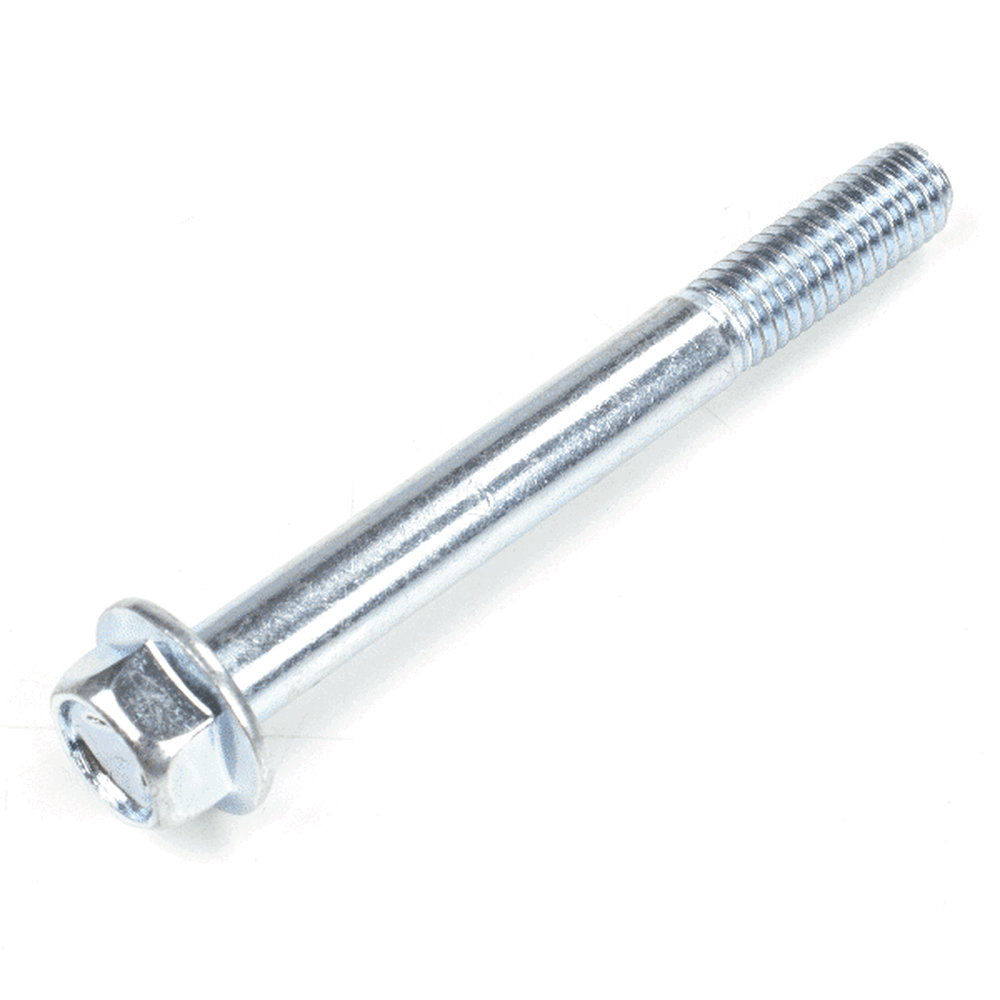

BLT013 Description Flanged Hex Bolt M8 x 75mm

A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

IMPORTANT INFORMATION

Unless specified the colour and finish of all nuts, bolts and screws may vary.

Bolt may be supplied as Bright Zinc Plate or Green Zinc Plate

Specifications

Length of Outer Cable: 78mm
Head Height: 8mm
Head Size: 9mm
Thread Length: 22mm
Thread Diameter: M8
Thread Pitch: 1.2mm
Flange Diameter: 16mm
Shank Length: 48mm
Thread Length and Shank in Total: 70mm

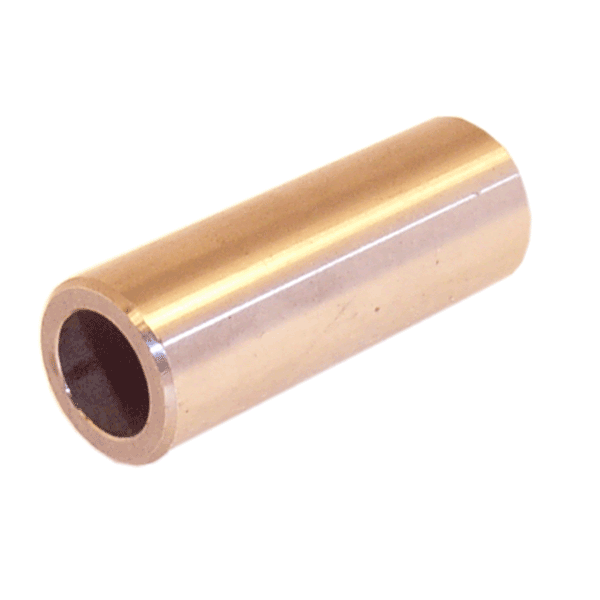

EXSPCR004 Description Lextek Exhaust Spacer 25mm

The exhaust spacer in a motorcycle provides the necessary gap between the exhaust components and the mounting surfaces, ensuring proper alignment and preventing vibrations or damage to the exhaust system.

Specifications

ID: 10.5mm
OD: 22mm
Length: 25mm

STDCC017 Description Centre Stand Cushion T5

The center stand cushion is a component designed to provide cushioning and reduce impact when the motorcycle's center stand is deployed or retracted. Typically made from rubber or a similar shock-absorbing material, the cushion is mounted on the frame or directly on the center stand. It helps to minimize noise, vibration, and potential damage to the stand or frame by absorbing some of the forces involved when the stand comes into contact with the ground or retracts. This component enhances the durability of the stand and contributes to smoother operation and better overall performance.
