Contents

Contents

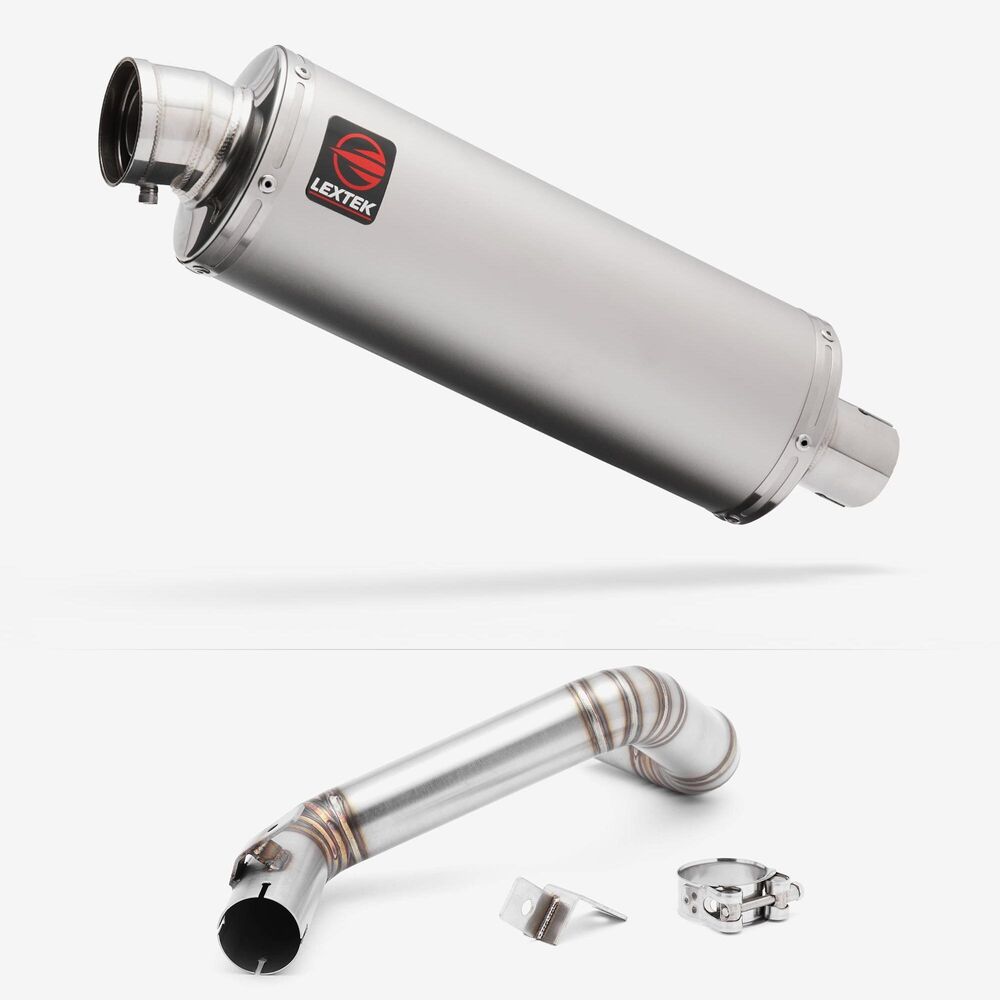

Lextek Matt S/Steel Silencer}

Lextek S/Steel Link Pipe}

Lextek Downpipe to Silencer Gasket}

Exhaust to Frame Bolt}

12mm Hex Bolt M8 28mm}

This silencer has a BSAU stamp and is road legal when using the baffle provided.

OP1 Description Lextek Matt Stainless Steel OP1 Oval Exhaust Silencer 350mm 51mm

Contents

Matt Stainless Steel Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe. Please search using make & model details for compatible pipes. Otherwise modification may be required.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

This product does not meet the relevant noise or emission requirements for street or highway use.

Specifications

Sleeve Length: 350mm
Length of Outer Cable: 490mm
Height: 130mm
Inlet Diameter: 51mm
Outlet Diameter: 60mm
Material: 304 Grade Stainless Steel
Weight: 2.030kg
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Matte
Machine Type: Scooter||Street Motorcycle
Manufacturer Warranty: Lifetime Warranty
Mounting Style: Bolt-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125202027
Type: Silencer
Unit Type: Unit
Universal Fitment: No

LNKPP048 Description Lextek Stainless Steel Link Pipe for KTM 125/200 Duke (11-16)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Specifications

Material: #304 Grade Stainless Steel
Inner diameter (Downpipe End): 43mm
Outer Diameter (Silencer End): 51mm
Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP048
Manufacturer Warranty: Lifetime
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100073
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

GSKEX076 Description Lextek Exhaust Connection Gasket 38 x 42 x 30mm

The exhaust gasket in a motorcycle seals the connection between the exhaust manifold and the engine head, preventing exhaust gas leaks and ensuring proper exhaust flow. It plays a vital role in maintaining engine efficiency, performance, and noise reduction.

Specifications

Inside Diameter: 38mm
Outside Diameter: 42mm
Length: 30mm
Bolt Hole Quantity: 1
Brand: Lextek
Classic Part: No
Colour: Black
Items included: Gasket
Manufacturer Part Number: GSKEX076
Manufacturer Warranty: 12 Months
Material: Graphite
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 145200052
Type: Exhaust Manifold
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

BLT010 Description Flanged Hex Bolt M8 x 30mm

A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

IMPORTANT INFORMATION

Unless specified the colour and finish of all nuts, bolts and screws may vary.

Specifications

Length of Outer Cable: 38mm
Head Height: 9mm
Head Size: 12mm
Thread Length: 30mm
Thread Diameter: M8
Thread Pitch: 1mm
Flange Diameter: 17mm
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Bolt
Machine Type: Street Motorcycle
Manufacturer Part Number: BLT010
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 130900003
Type: Bolt
Unit Quantity: 1
Universal Fitment: No

BLTA008 Description Allen Bolt M8 x 35mm

An Allen bolt, also known as a hex socket bolt, is a type of fastener characterized by a hexagonal socket in its head. It requires an Allen wrench (or hex key) for tightening or loosening. Commonly used in motorcycles, Allen bolts are preferred for their clean appearance and the ability to provide high torque without damaging the fastener.

Specifications

Thread Length: 35mm
Allen Key: 5mm
Head Diameter: 13.5mm
Head Height: 5mm
Head Type: Rounded (Bulbous)
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Bolt
Machine Type: Street Motorcycle
Manufacturer Part Number: BLTA008
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 130900064
Type: Bolt
Unit Quantity: 1
Universal Fitment: No
