Contents

Contents

Lextek S/Steel Silencer}

Lextek S/Steel Link Pipe}

Lextek Exhaust Spacer 35mm}

12mm Hex Flanged Bolt M8 65mm}

M8 Flanged Lock Nut 12mm}

The exhaust in this listing is designed to fit to your original system without the need for gaskets

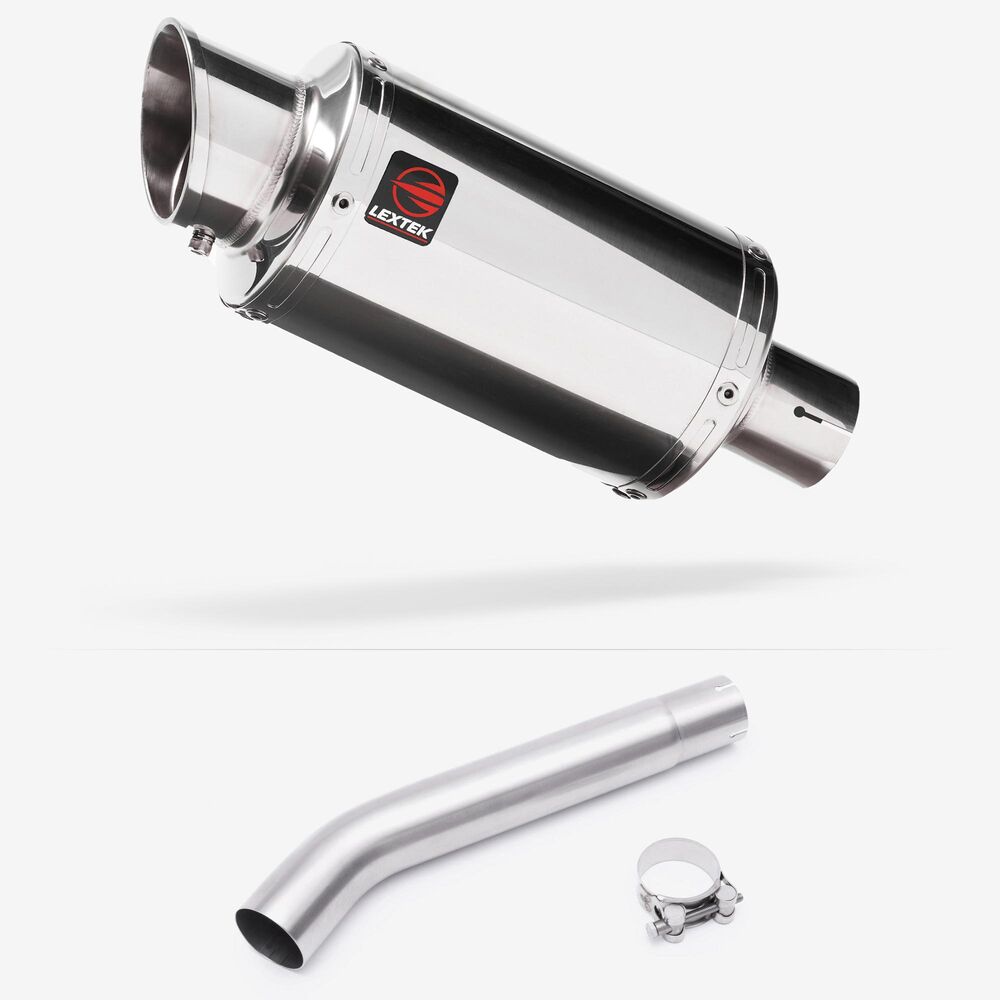

YP4 Description Lextek Polished Stainless Steel YP4 Stubby Exhaust Silencer 200mm 51mm

Contents

Stainless Steel Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

Details

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe. Please search using make & model details for compatible pipes. Otherwise modification may be required.

This product does not meet the relevant noise or emission requirements for street or highway use.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

Specifications

Sleeve Length: 200mm
Length of Outer Cable: 340mm
Height: 120mm
Inlet Diameter: 51mm
Outlet Diameter: 73mm
Material: 304 Grade Stainless Steel
Weight: 1.770kg
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200023
Type: Silencer

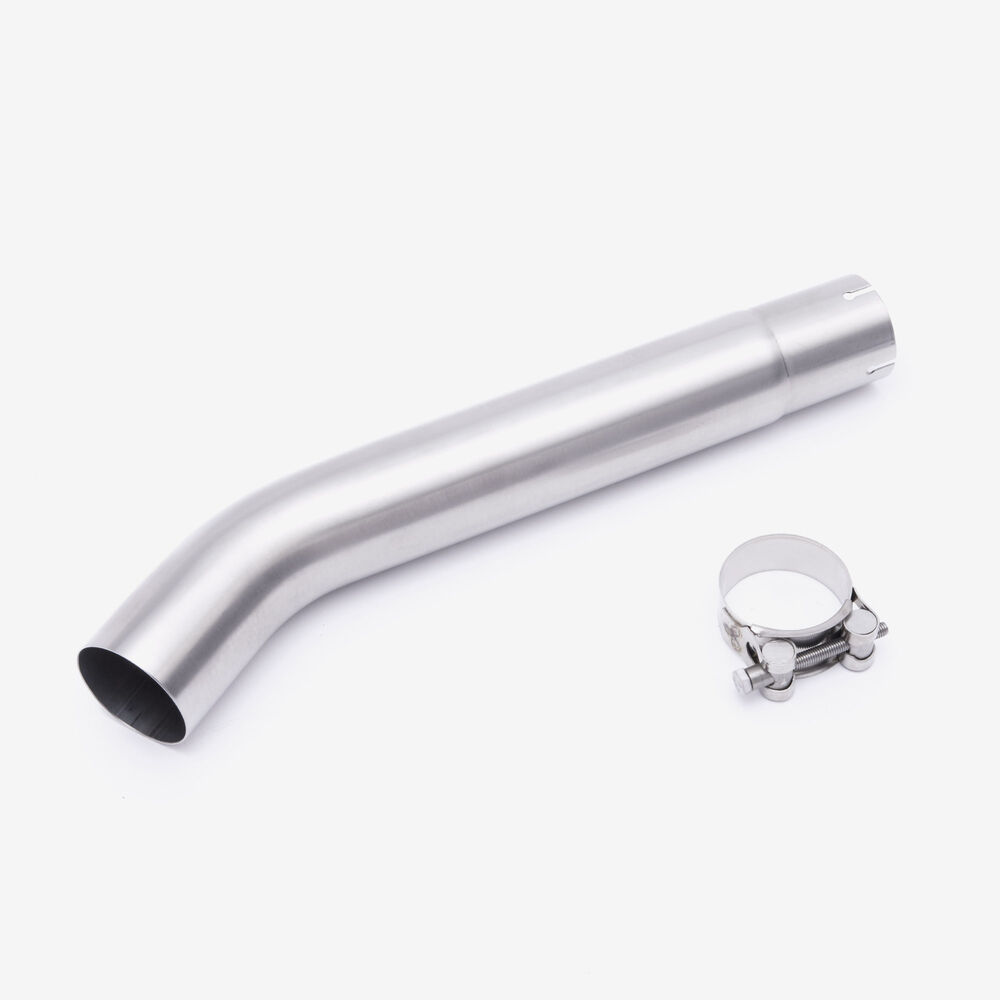

LNKPP154 Description Lextek Stainless Steel Link Pipes for Yamaha YZF600R Thunder Cat FZR600R (95-07)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Specifications

Material: #304 Grade Stainless Steel
Inner diameter (Downpipe End): 45mm
Outer Diameter (Silencer End): 51mm
Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP154
Manufacturer Warranty: Lifetime
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100094
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

NUT015 Description Flanged Lock Nut M8

A nut on a motorcycle is a fastener with a threaded hole used in conjunction with a bolt or screw to secure various components. It is essential for maintaining the integrity and stability of the motorcycle’s assembled parts.

Details

Please note, unless specified, the colour and finish of this item may differ from the image shown.

IMPORTANT INFORMATION

Please note, unless specified, the colour and finish of this item may differ from the image shown.

Specifications

Thread size: 8mm
Nut height: 8.75mm
Head size: 13mm
Thread pitch: 1.25mm
Lock Mechanism: Metal Lock
Brand: CMPO
Classic Part: No
Colour: Black
Features: Easy Installation
Items included: Nut
Machine Type: Street Motorcycle
Manufacturer Part Number: NUT015
Manufacturer Warranty: 1 Year
Performance Part: No
Placement on Vehicle: Front
Reference OE/OEM Number: 135700059
Type: Nut
Unit Quantity: 1
Universal Fitment: No

BLT552 Description Flanged Hex Bolt Stainless Steel A2 M8 x 50mm

A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

BLTA078 Description Cap Head Socket Allen Bolt Stainless Steel A2 M8 x 70mm

An Allen bolt, also known as a hex socket bolt, is a type of fastener characterized by a hexagonal socket in its head. It requires an Allen wrench (or hex key) for tightening or loosening. Commonly used in motorcycles, Allen bolts are preferred for their clean appearance and the ability to provide high torque without damaging the fastener.

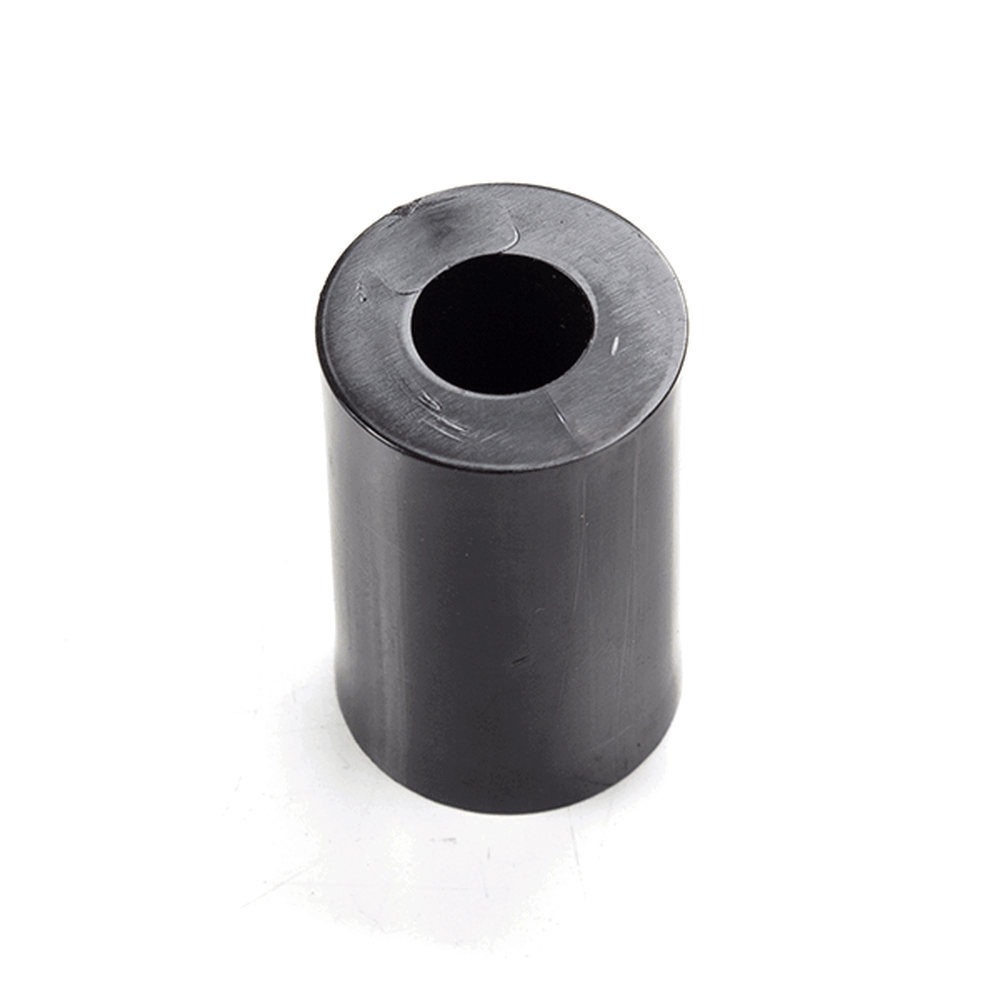

EXSPCR005 Description Lextek Exhaust Spacer 35mm

The exhaust spacer in a motorcycle provides the necessary gap between the exhaust components and the mounting surfaces, ensuring proper alignment and preventing vibrations or damage to the exhaust system.

Specifications

ID: 10.5mm
OD: 21mm
Length: 35mm
