Contents

Contents

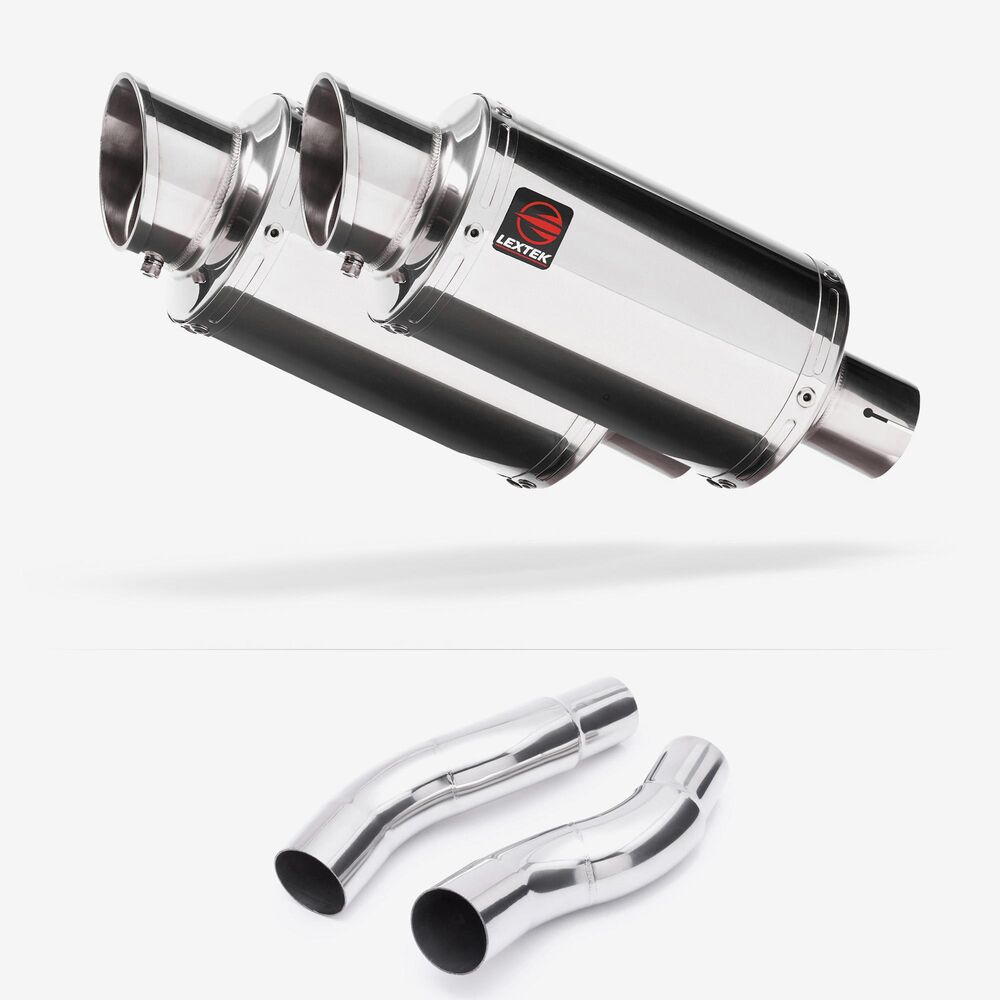

2 x Lextek S/steel Silencer}

2 x Lextek S/Steel Link Pipe}

2 x Lextek Downpipe to Silencer Gasket}

2 x Lextek Exhaust Spacer}

This product doesn’t allow the refitting of the right hand side exhaust heat shield

YP4L Description Lextek Polished Stainless Steel YP4L Stubby Exhaust Silencer 200mm 51mm (Left Hand)

Contents

Stainless Steel Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe. Please search using make & model details for compatible pipes. Otherwise modification may be required.

This product does not meet the relevant noise or emission requirements for street or highway use.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

Specifications

Sleeve Length: 200mm
Length: 340mm
Height: 120mm
Inlet Diameter: 51mm
Outlet Diameter: 73mm
Material: 304 Grade Stainless Steel
Weight: 1.770kg
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200275
Type: Silencer

YP4 Description Lextek Polished Stainless Steel YP4 Stubby Exhaust Silencer 200mm 51mm

Contents

Stainless Steel Silencer

Removable Baffle

Exhaust Strap

Exhaust Strap Rubber

Details

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

IMPORTANT INFORMATION

Although ‘universal’, this is only when used in conjunction with a suitable 51mm link-pipe or downpipe. Please search using make & model details for compatible pipes. Otherwise modification may be required.

This product does not meet the relevant noise or emission requirements for street or highway use.

The baffle which comes with this silencer must be secured with a lock washer or temporary threadlock to ensure it is held securely in place.

Specifications

Sleeve Length: 200mm
Length of Outer Cable: 340mm
Height: 120mm
Inlet Diameter: 51mm
Outlet Diameter: 73mm
Material: 304 Grade Stainless Steel
Weight: 1.770kg
Features: Easy to Replace
Mounting Style: Slip-On
Placement on Vehicle: Rear
Reference OE/OEM Number: 125200023
Type: Silencer

LNKPP038 Description Lextek Stainless Steel Link Pipes for Kawasaki Z1000/SX (14-19)

Lextek Link Pipes are unique to each model but are necessary to connect your OEM exhaust system to our range of Lextek Silencers to improve the look of your motorcycle whilst balancing price and performance. All our range of exhaust products is supplied with a Lifetime warranty.

Lextek strive to develop High Quality, Low-Cost products that exceed our customer's expectations.

Details

Where a catalytic converter is fitted as standard to a motorcycle this link pipe does not replace the catalytic converter. This is not a de-cat pipe.

FITTING: The exhaust heat shield will need to be removed in order to fit this link pipe.

Specifications

Material: #304 Grade Stainless Steel
Outer Diameter (Downpipe End): 45mm
Outer Diameter (Silencer End): 51mm
Brand: Lextek
Classic Part: No
Colour: Silver
Features: Easy to Replace
Finish: Silver
Machine Type: Street Motorcycle
Manufacturer Part Number: LNKPP038
Manufacturer Warranty: Lifetime
Mounting Style: Clamp-On
Performance Part: Yes
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 125100063
Type: Slip-on Exhaust System
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSL001 Description Lextek Exhaust Assembly Paste

The motorcycle exhaust silencer, also known as a muffler, is a critical component designed to reduce the noise generated by the engine's exhaust gases. It achieves this by channeling the exhaust flow through a series of internal baffles, perforated tubes, and sound-absorbing materials. These features work together to dampen the noise produced during combustion, helping to meet noise regulations and provide a quieter riding experience. Additionally, the exhaust silencer helps to optimize exhaust flow, contributing to the overall performance and efficiency of the engine by ensuring smooth expulsion of exhaust gases. Its design also often includes provisions for durability and resistance to high temperatures, making it an essential part of the motorcycle's exhaust system.

Features

Our Lextek Exhaust Paste is a high-quality sealant that will cope with temperatures up to 1100 degrees Celsius. The Lextek Exhaust Paste is ideal for sealing joints between two pipes, we do not recommend you use it as a replacement for a gasket (for example between the head and manifold). The Lextek Exhaust Paste will provide you with a leak-free seal ensuring your exhaust system performs exactly as it is designed to.

IMPORTANT INFORMATION

Avoid contact with Eyes, Mouth and Skin.

Store in a cool dry place.

Keep out of sunlight and store below 25 Degrees Celsius.

Keep out of reach of Children.

Use in a well ventilated area.

GSKEX080 Description Lextek Exhaust Connection Gasket 45 x 51 x 20mm [Qty: 2]

The exhaust gasket in a motorcycle seals the connection between the exhaust manifold and the engine head, preventing exhaust gas leaks and ensuring proper exhaust flow. It plays a vital role in maintaining engine efficiency, performance, and noise reduction.

Specifications

Inside Diameter: 45mm
Outside Diameter: 51mm
Length: 20mm
Bolt Hole Quantity: 1
Brand: Lextek
Classic Part: No
Colour: Black
Items included: Gasket
Manufacturer Part Number: GSKEX080
Manufacturer Warranty: 12 Months
Material: Graphite
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 145200056
Type: Exhaust Manifold
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

EXSPCR004 Description Lextek Exhaust Spacer 25mm [Qty: 2]

The exhaust spacer in a motorcycle provides the necessary gap between the exhaust components and the mounting surfaces, ensuring proper alignment and preventing vibrations or damage to the exhaust system.

Specifications

ID: 10.5mm
OD: 22mm
Length: 25mm
