PSTKV002
Gudgeon pin clips in a motorcycle secure the gudgeon pin (or piston pin) in place within the piston, preventing it from moving and ensuring proper connection between the piston and connecting rod.
Brand: CMPO
Classic Part: No
Cylinder Bore Diameter: N/A
Engine Type: 4-stroke
Item Thickness: N/A
Items included: Wrist Pin Clips
Machine Type: Scooter
Manufacturer Part Number: GPCLP005
Manufacturer Warranty: 1 year
Material: Steel
Performance Part: No
Pin Diameter: N/A
Piston Diameter: N/A
Reference OE/OEM Number: 121000058
Type: Wrist Pin Clips
The gudgeon pin in a motorcycle connects the piston to the connecting rod.
This is a replacement part for our Lextek Big Bore Cylinder Kit for 152QMI GY6 engines.
Length : 48mm
Inner Diameter: 10.5mm
Diameter: 15mm
Brand: CMPO
Classic Part: No
Cylinder Bore Diameter: 56 mm
Engine Type: 4-stroke
Item Thickness: 15 mm
Items included: Wrist Pin
Machine Type: Scooter
Manufacturer Part Number: GDP004
Manufacturer Warranty: 1 Year
Material: Steel
Mounting Style: Screw-In
Performance Part: No
Pin Diameter: 15 mm
Piston Diameter: 56 mm
Reference OE/OEM Number: 121000043
Type: Wrist Pin
Universal Fitment: No

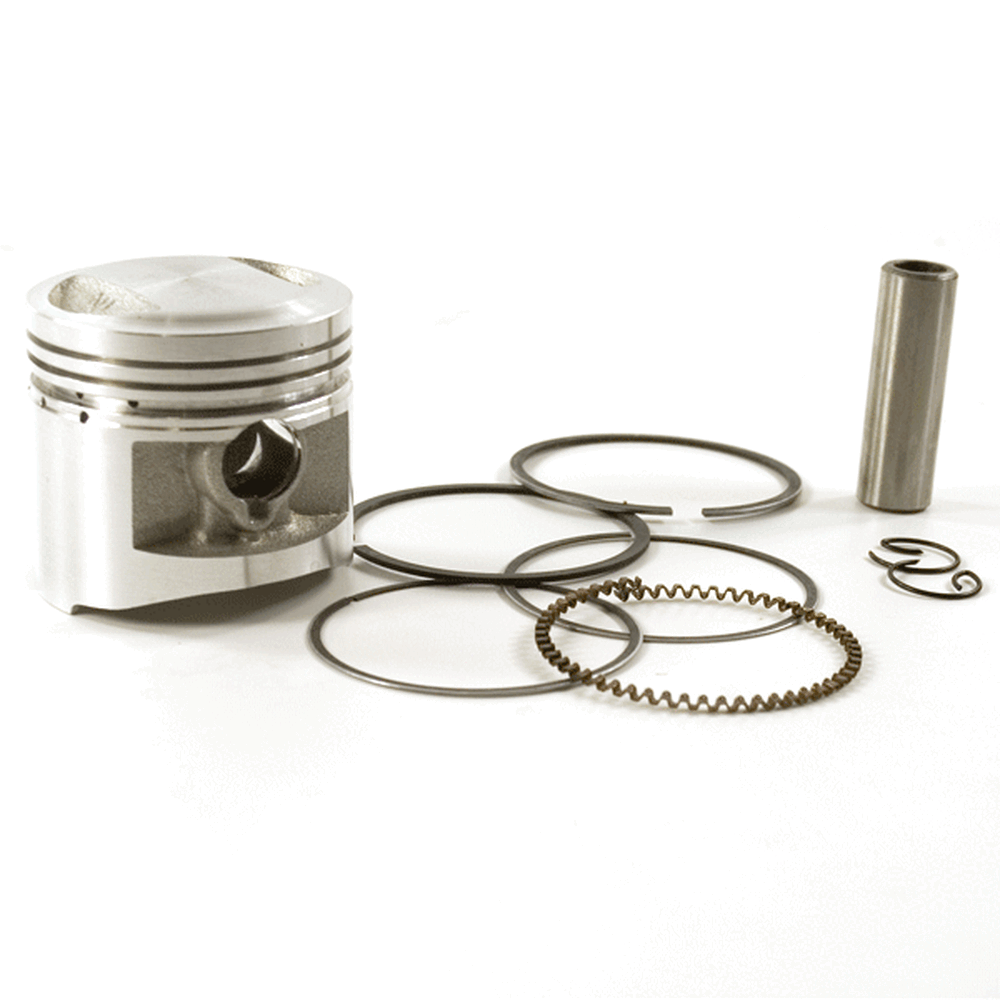

The piston in a motorcycle engine is a cylindrical component that moves up and down within the engine's cylinder. It plays a crucial role in the combustion process by transferring the force generated from burning fuel-air mixtures to the crankshaft, which ultimately drives the motorcycle.
Typically made from high-strength materials like aluminum or steel, pistons are designed to withstand high temperatures and pressures.
Piston Diameter: 56mm
Gudgeon Pin Diameter: 15mm
Height (Including Skirt): 55mm
Height (Excluding Skirt): 47mm
Classic Part: No
Cylinder Bore Diameter: 56 mm
Engine Type: 4-stroke
Item Thickness: 15 mm
Items included: Piston
Machine Type: Street Motorcycle
Manufacturer Warranty: 1 year
Material: Steel
Performance Part: No
Pin Diameter: 15 mm
Reference OE/OEM Number: 121000009
Type: Piston
Piston rings are critical components in a motorcycle engine, located on the outer surface of the piston. They serve several key functions:
Classic Part: No
Cylinder Bore Diameter: 56 mm
Engine Type: 4-stroke
Item Thickness: N/A
Items included: Piston Ring
Machine Type: Street Motorcycle
Manufacturer Warranty: 1 year
Material: Steel
Performance Part: No
Pin Diameter: N/A
Piston Diameter: 56 mm
Reference OE/OEM Number: 121000026
Type: Piston Ring
Manufacturer | Model | Diagram |
---|---|---|
AJS | CR3-125 | |
Baimo | Renegade 125 | |
Direct Bikes | 125cc Thunderbird E3 [DB125-9] | |
Haotian | HT125-4F | |
HT125-8 | ||
Hongdou | Urban [DZ125] | |
Huoniao | HN125-4F | |
HN125-8 | ||
Jinlun | XR 125 [JL125Y] | |
Kaisar | 125GY-6 | |
Courageous 125 [KS125GY-3A] | ||
Destiny 125 [KS125-3] | ||
KS125-23 | ||
Kinroad | Cyclone 125 [XT125-16] | |
Explorer 125 [XT125GY] | ||
Typhoon 125 [XT125-18] | ||
Lexmoto | Arizona 125 | View parts diagram |
Arrow 125 | ||
Vixen 125 | ||
XTR 125 | ||
Lifan | Arizona 125 [LF125-14F] | |
City X 125 [LF125-J] | ||
Earth Dragon 125 [LF125GY-3] | ||
Heritage | ||
King 125 | ||
Samurai 125 [LF125-30] | ||
Sprint | ||
Trailblazer [LF125GY-6] | ||
Others | RR7 | |
POR | APACHE 125 | |
Pioneer | Nevada 125 [XF125L-4B] | |
Torro 125 | ||
Shineray | XY125GY-5E | |
Skygo | Heritage | |
Sprint | ||
Titan | ||
Trailblazer | ||
Sukida | Commissioner [SK125-4] | |
Crosser [SK125GY-A] | ||
Patriot [SK125-5] | ||
Pharaoh [SK125-2] | ||
Superbyke | RBP 125 | |
RCC125 | ||
XGJAO | XGJ125-23 | |
Yuan | Renegade | |
Zing Bikes | Edge 125cc | |
King 125 | ||
Mirage 125cc | ||
Zongshen | Dakota | |
ZS125-30 | ||
