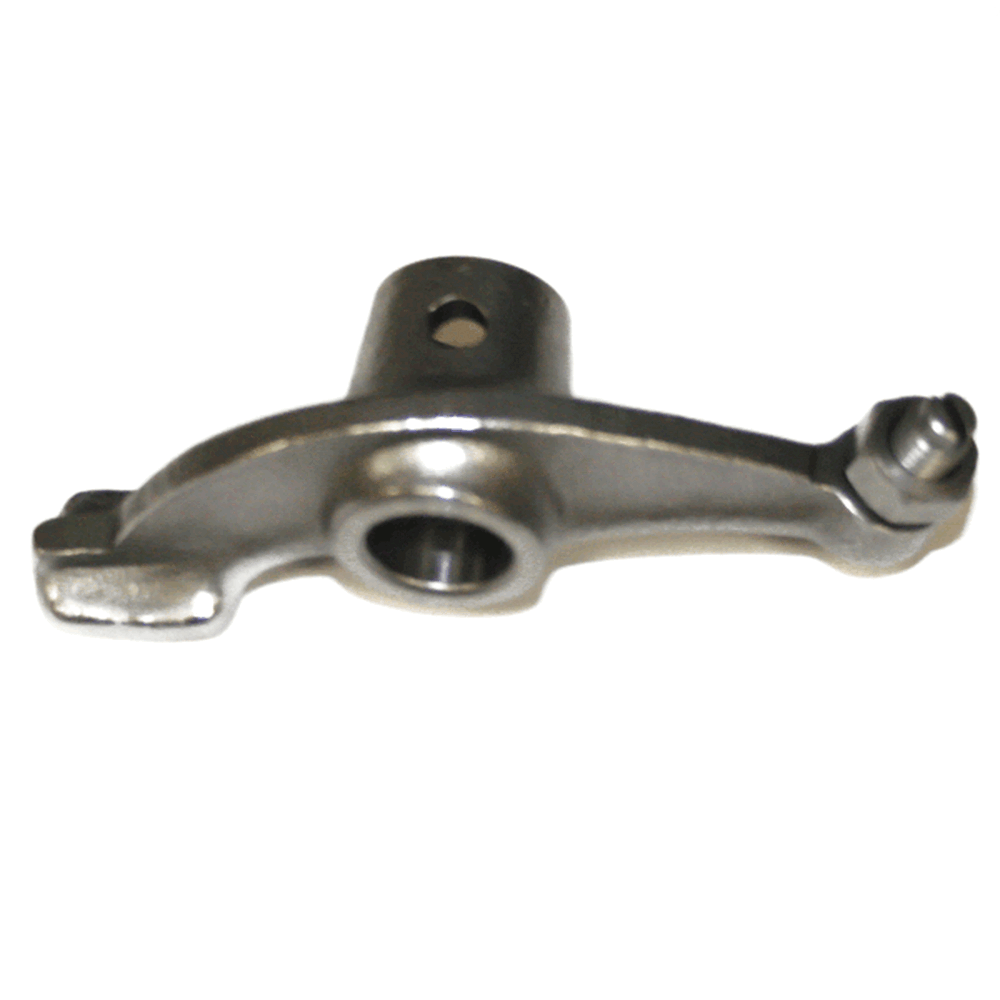

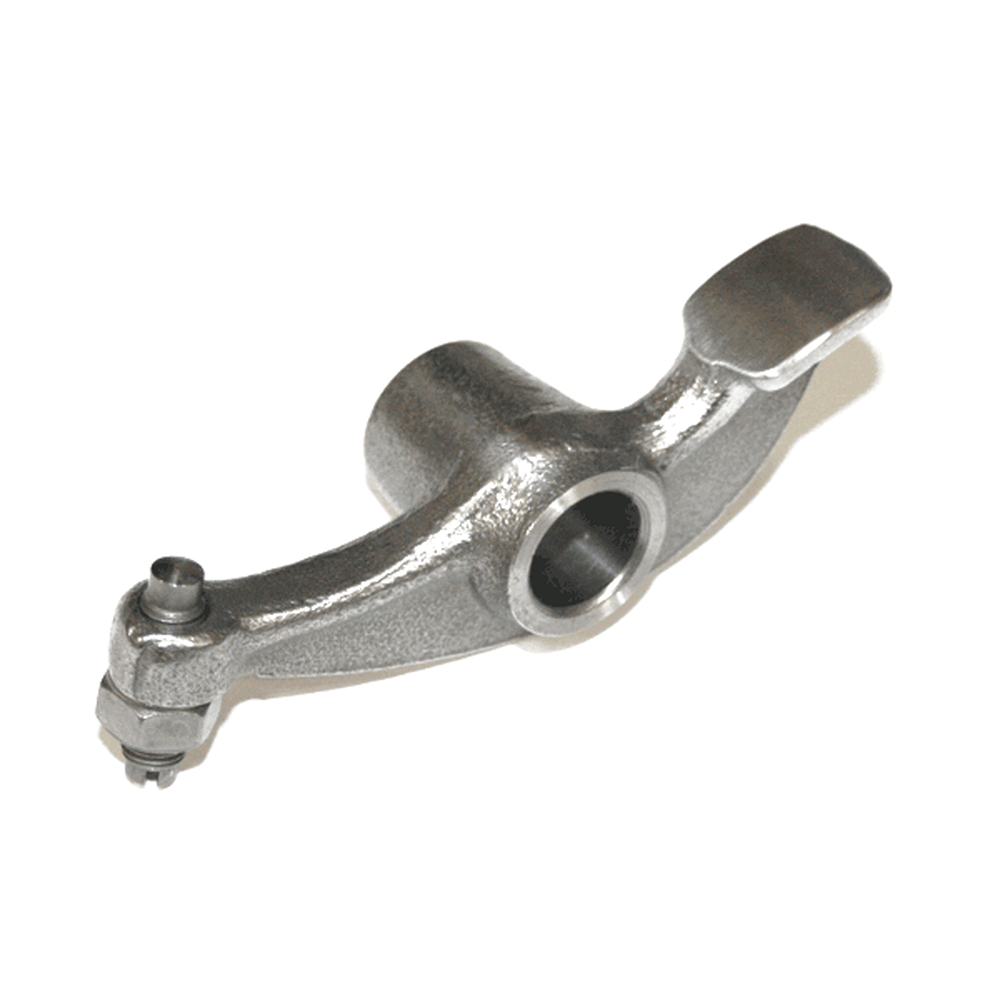

RKA004
The rocker arm is a pivotal component in a motorcycle’s engine valvetrain that transfers the motion from the camshaft to the engine's valves. It is typically a lever-like mechanism that pivots on a shaft or bearing, pushing the valve open and then allowing it to close as the camshaft rotates. By converting the rotational motion of the camshaft into the linear motion needed to operate the valves, the rocker arm plays a critical role in regulating the engine’s air-fuel intake and exhaust.
Manufacturer | Model | Diagram |
---|---|---|
Dafier | DFE125-8A | |
Direct Bikes | 125cc Enduro S E3 [DB125GY-2B] | |
125cc Hurricane E3 [DB125R] | ||
Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram |
Adrenaline 125 [XFLM125GY-2B] | View parts diagram | |
Adrenaline Exile 125 [XF125GY-B-E4] | ||
Lowride 125 [DFE125L] | ||
Street 125 [DFE125-8A] | ||
Valiant 125 EFI [XF125R-E4] | View parts diagram | |
Valiant 125 [XF125R] | View parts diagram | |
Mash | Seventy Five 125 [SEVENTY FIVE 125] | |
Mutt | FAT SABBATH [FATSABBATH] | |
Pulse | Adrenaline 125 [XF125GY-2B] | View parts diagram |
Qingqi | Sport | |
SFM | Roadster [SFM125-8A] | |
ZX125 | ||
ZZ125 | ||
Sinnis | Apache 125 | |
Apache SMR [QM125GY-G] | ||
Blade 125 [QM125GY(OFF ROAD)] | ||
Bomber 125 [QM125-2X-EB] | ||
Cafe 125 [QM125-2X] | ||
Max II 125cc [QM125-2V] | ||
Retrostar 125 [QM125-2X-R] | ||
Scrambler [QM125-2X-E] | ||
Stealth 125 [QM125-2D] | ||
Trackstar 125 [QM125GY-2D] | ||
Vista [QM125-2C] | ||
Superbyke | RMR 125 [RMR125] | |
RSR125 | ||
Suzuki | EN125-2 | |
EN125-2A | ||
GSX125 | ||
UM | Scrambler Classic 125 [UM125-SC] | View parts diagram |
Zennco | Bullet | |
