RKASM001

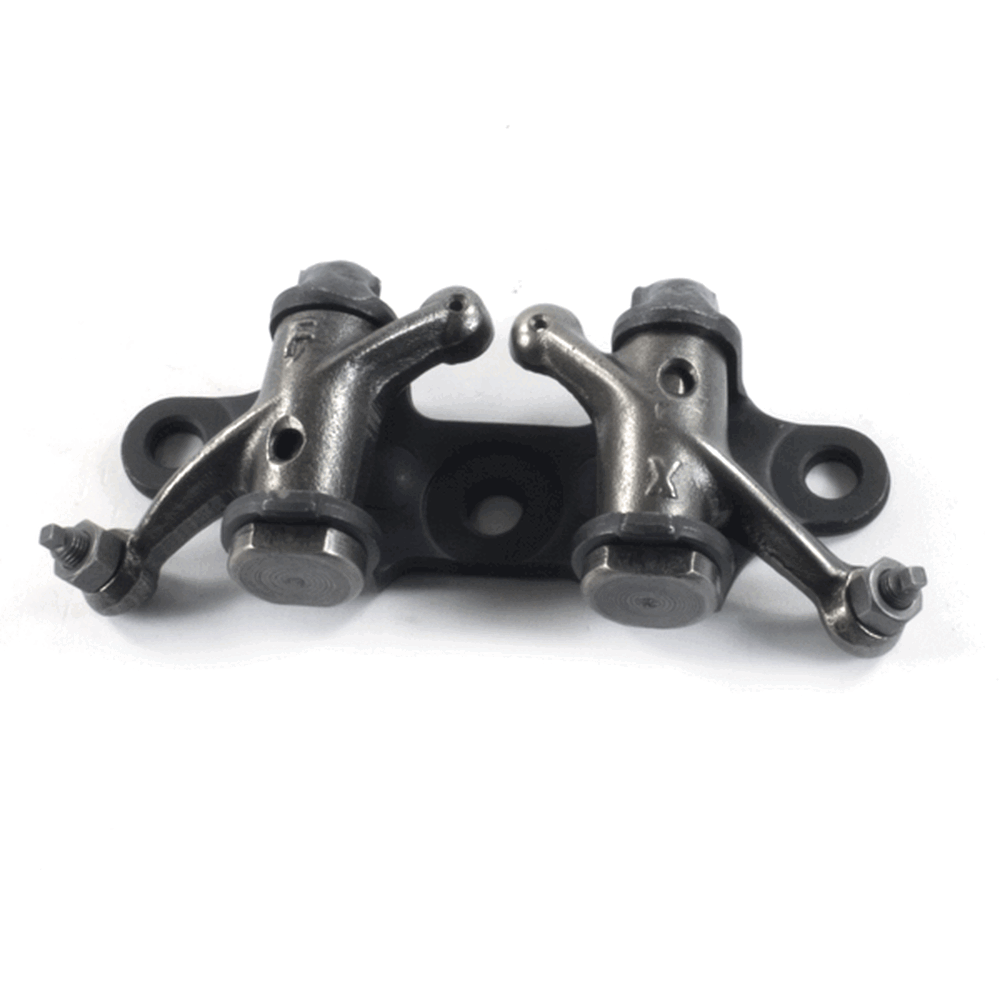

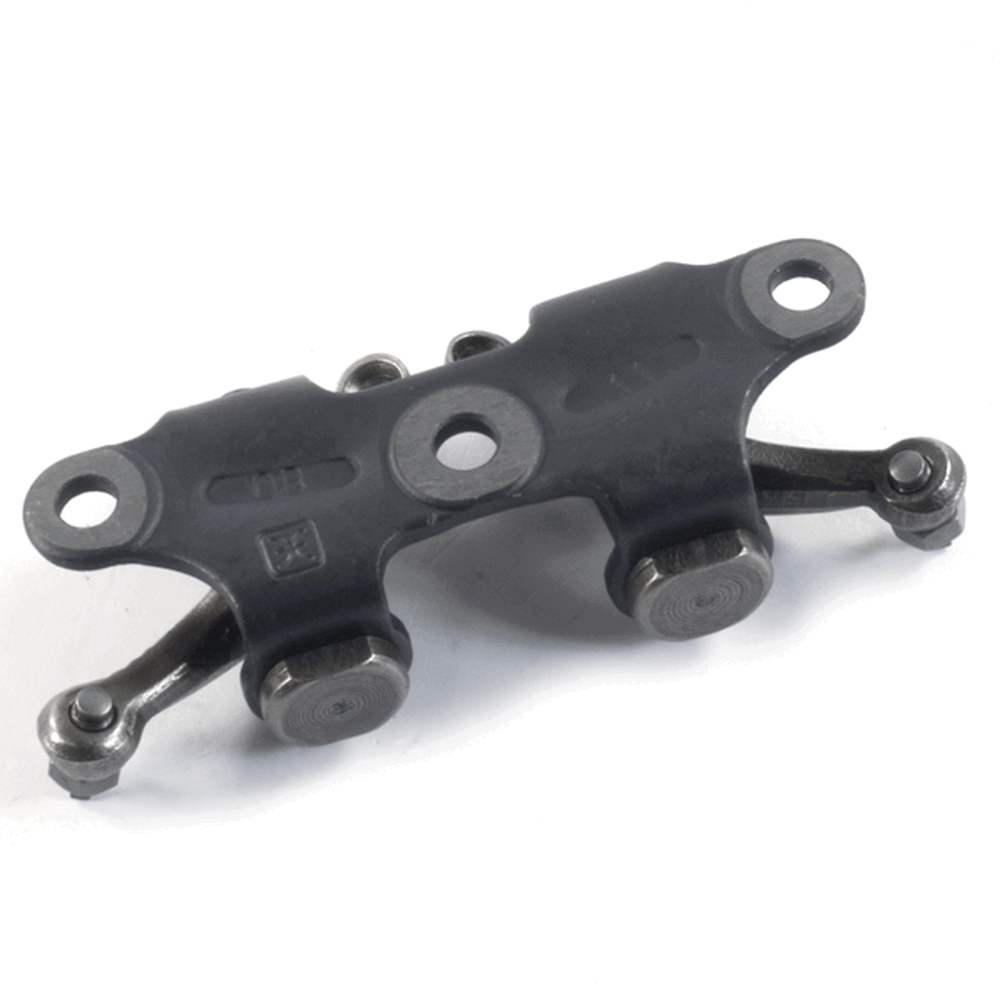

The rocker arm assembly is a crucial component of a motorcycle’s valvetrain, responsible for transferring motion from the camshaft to the engine's valves. It consists of rocker arms mounted on a shaft or supports, which pivot to push the valves open and closed as the camshaft rotates. The assembly ensures precise timing and movement of the valves, which is essential for proper engine operation and performance.
Manufacturer | Model | Diagram |
---|---|---|
AJS | CR3-125 | |
Baimo | Renegade 125 | |
Better | BT125-20 | |
Direct Bikes | 125cc Nevada E3 [DB125L-4B] | |
125cc Thunderbird E3 [DB125-9] | ||
Haotian | HT125-4F | |
HT125-8 | ||
Hongdou | Urban [DZ125] | |
Huoniao | HN125-4F | |
HN125-8 | ||
Jinlun | XR 125 [JL125Y] | |
Kaisar | 125GY-6 | |
Courageous 125 [KS125GY-3A] | ||
Destiny 125 [KS125-3] | ||
KS125-23 | ||
Kinroad | Cyclone 125 [XT125-16] | |
Explorer 125 [XT125GY] | ||
Typhoon 125 [XT125-18] | ||
Lexmoto | Arizona 125 | View parts diagram |
Arrow 125 | ||
Ranger 125 [ZS125-50] | View parts diagram | |
Vixen 125 | ||
XTR 125 | ||
Lifan | Arizona 125 [LF125-14F] | |
City X 125 [LF125-J] | ||
Earth Dragon 125 [LF125GY-3] | ||
Heritage | ||
King 125 | ||
Samurai 125 [LF125-30] | ||
Sprint | ||
Trailblazer [LF125GY-6] | ||
Others | RR7 | |
POR | APACHE 125 | |
Pioneer | Nevada 125 [XF125L-4B] | |
Torro 125 | ||
Shineray | XY125GY-5E | |
Skygo | Heritage | |
Sprint | ||
Titan | ||
Trailblazer | ||
Skyjet | SJ125-26 | |
SJ125-27 | ||
Sukida | Commissioner [SK125-4] | |
Crosser [SK125GY-A] | ||
Patriot [SK125-5] | ||
Pharaoh [SK125-2] | ||
Superbyke | RBP 125 | |
RCC125 | ||
RSP125 | ||
XGJAO | XGJ125-23 | |
XGJ125-26 | ||
XGJ125-27 | ||
Yuan | Renegade | |
Zhongyu | ZY125-2 | |
Zing Bikes | Edge 125cc | |
King 125 | ||
Mirage 125cc | ||
Zongshen | Dakota | |
Pursuit | ||
ZS125-30 | ||
ZS125-50 | ||
