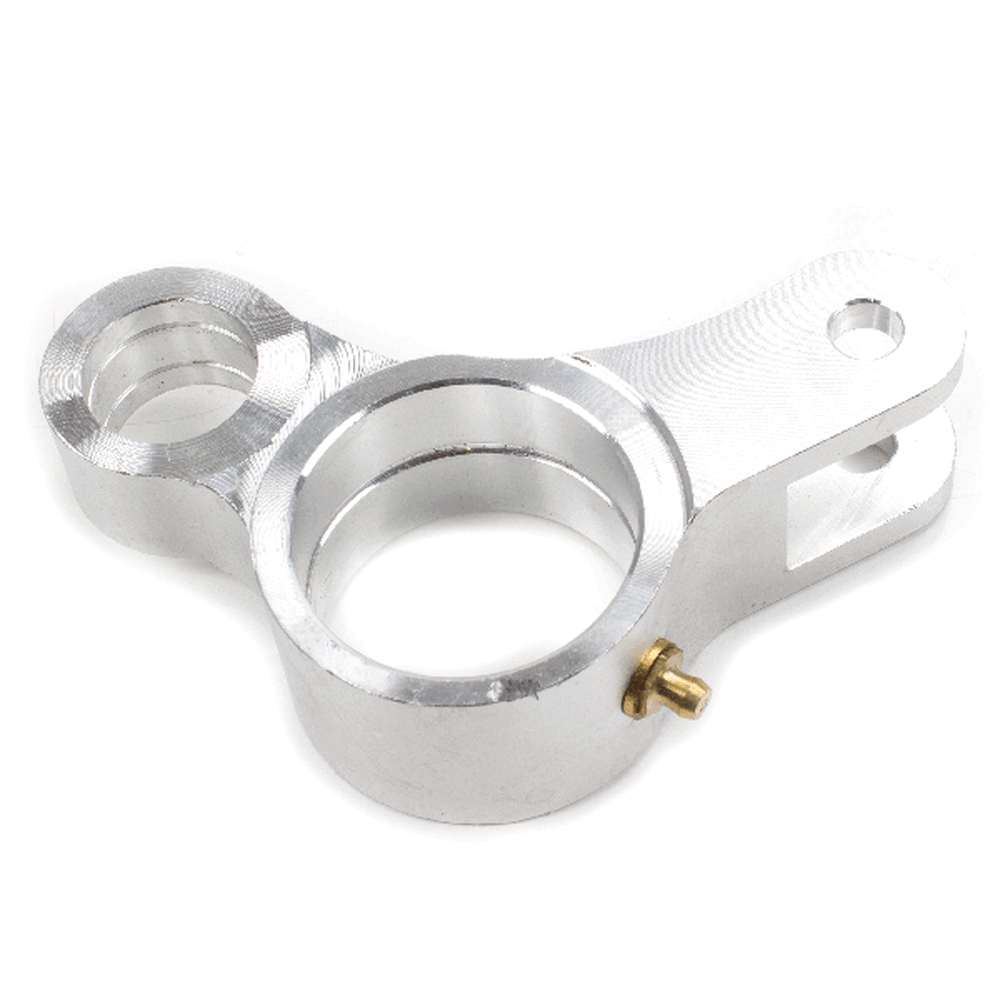

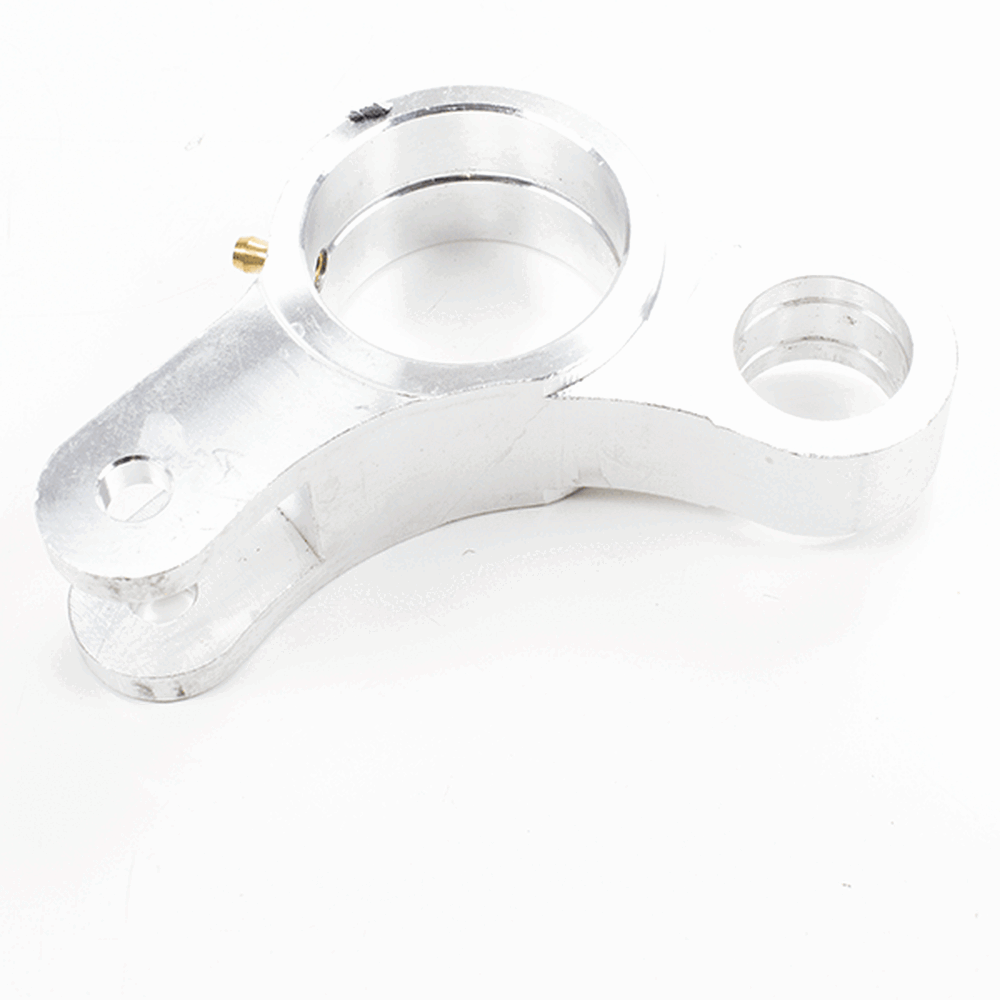

SHKL002
The rear shock linkage is a component of a motorcycle's rear suspension system that connects the rear shock absorber to the swingarm and frame. It typically consists of a series of levers, arms, and pivot points designed to transfer forces and adjust the suspension’s behavior. The linkage helps to control the rear suspension's movement, providing smoother ride quality and better handling by optimizing the shock absorber's performance.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 125cc Enduro S E3 [DB125GY-2B] | |

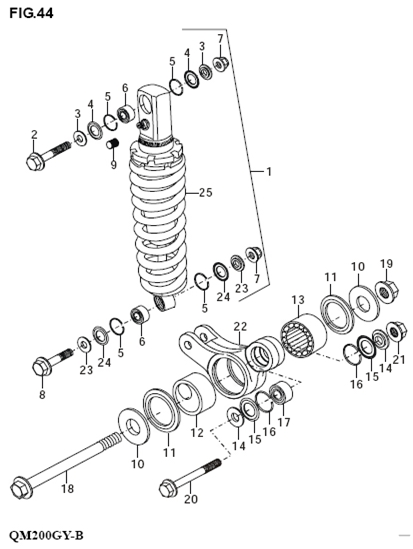

Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram |
Adrenaline 125 [XFLM125GY-2B] | View parts diagram | |
Pulse | Adrenaline 125 [XF125GY-2B] | View parts diagram |
Adrenaline 250 [XF250GY] | ||
Sinnis | Apache 125 | |
Apache 250 [QM250GY-D] | ||
Blade 125 [QM125GY(OFF ROAD)] | ||
Superbyke | RMR 125 [RMR125] | |
