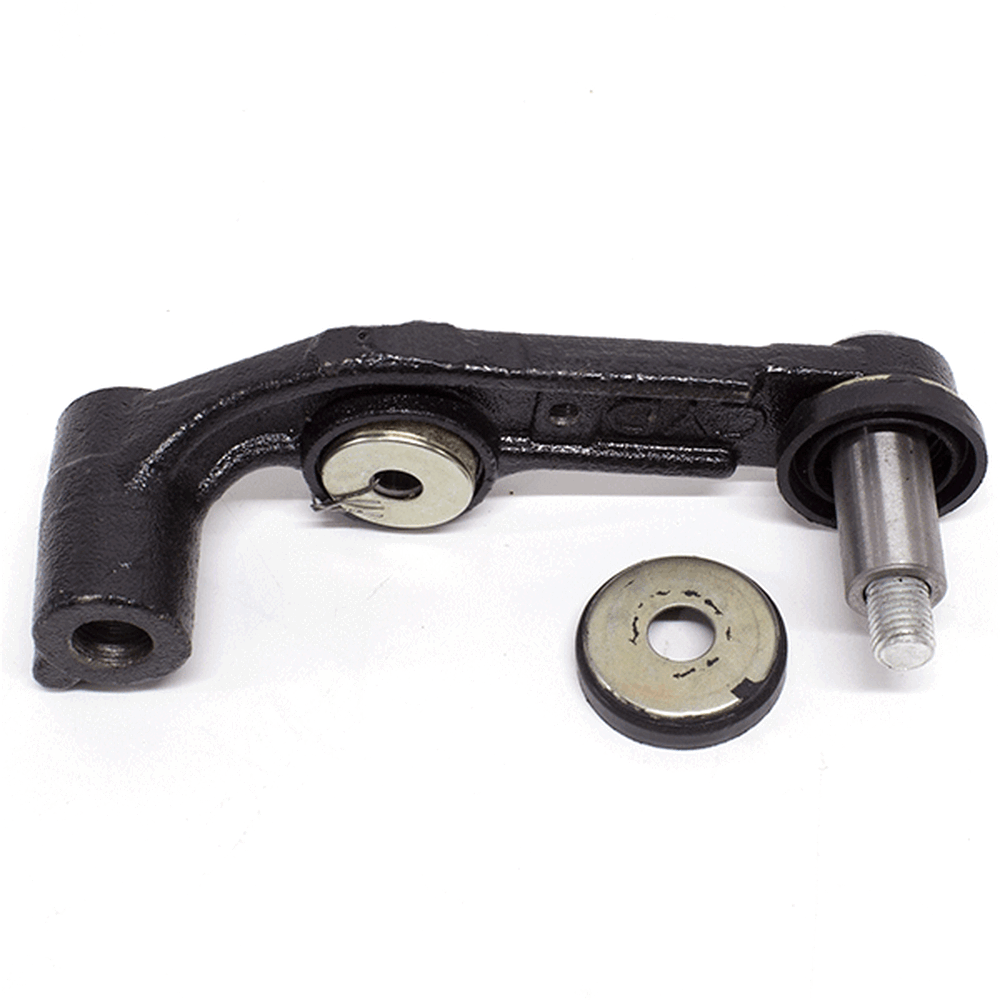

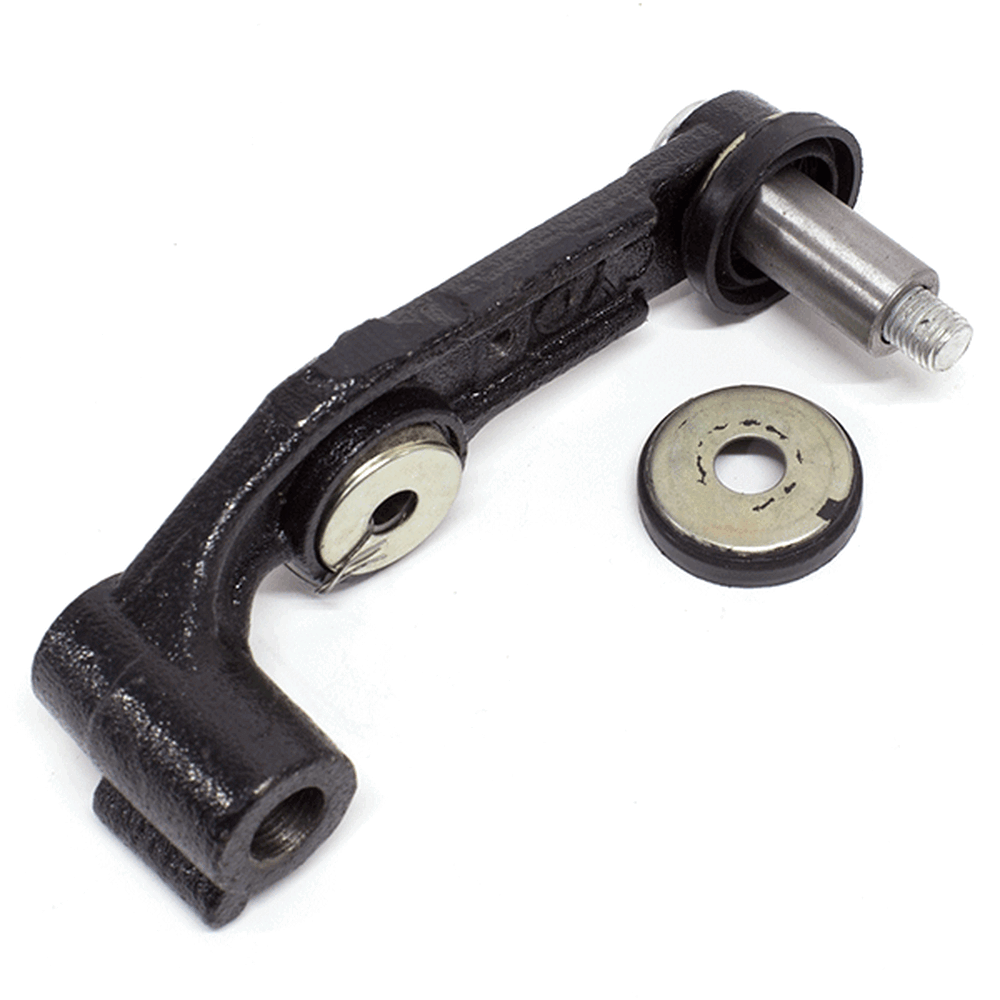

SHKL022
The rear shock linkage is a component of a motorcycle's rear suspension system that connects the rear shock absorber to the swingarm and frame. It typically consists of a series of levers, arms, and pivot points designed to transfer forces and adjust the suspension’s behavior. The linkage helps to control the rear suspension's movement, providing smoother ride quality and better handling by optimizing the shock absorber's performance.
Manufacturer | Model | Diagram |
---|---|---|
AJS | Modena 50 [ZN50QT-27] | |
Modena 125 [ZN125T-27] | ||
Direct Bikes | 50cc Tommy E3 [DB50QT-E] | |
125cc Classic | ||
125cc Tommy E3 | ||
Jinlun | 125cc Tommy Scooter E3 | |
Lexmoto | Firenze 125 | |
Milano 50 [FT50QT-27] | View parts diagram | |
Milano 125 EFI [FT125T-27-E4] | View parts diagram | |
Milano 125 [FT125T-27] | View parts diagram | |
Tommy 50 [ZN50QT-E] | ||
Tommy 125 E3 | ||
Valencia 50 [ZN50QT-K] | View parts diagram | |
Valencia 125 [ZN125T-K] | View parts diagram | |
Verona 125 [WY125T-41] | View parts diagram | |
Sinnis | Spirit 125 [ZN125T-E-S] | |
Tamoretti | Retro 50 | |
Retro 125 E3 | ||
Yiying | Tommy 125 [YY125T-19] | |
Znen | Firenze 125 [ZN125T-F] | |
Tommy 125 E3 [ZN125T-E] | ||
ZN50QT-E | ||
