SPCB023

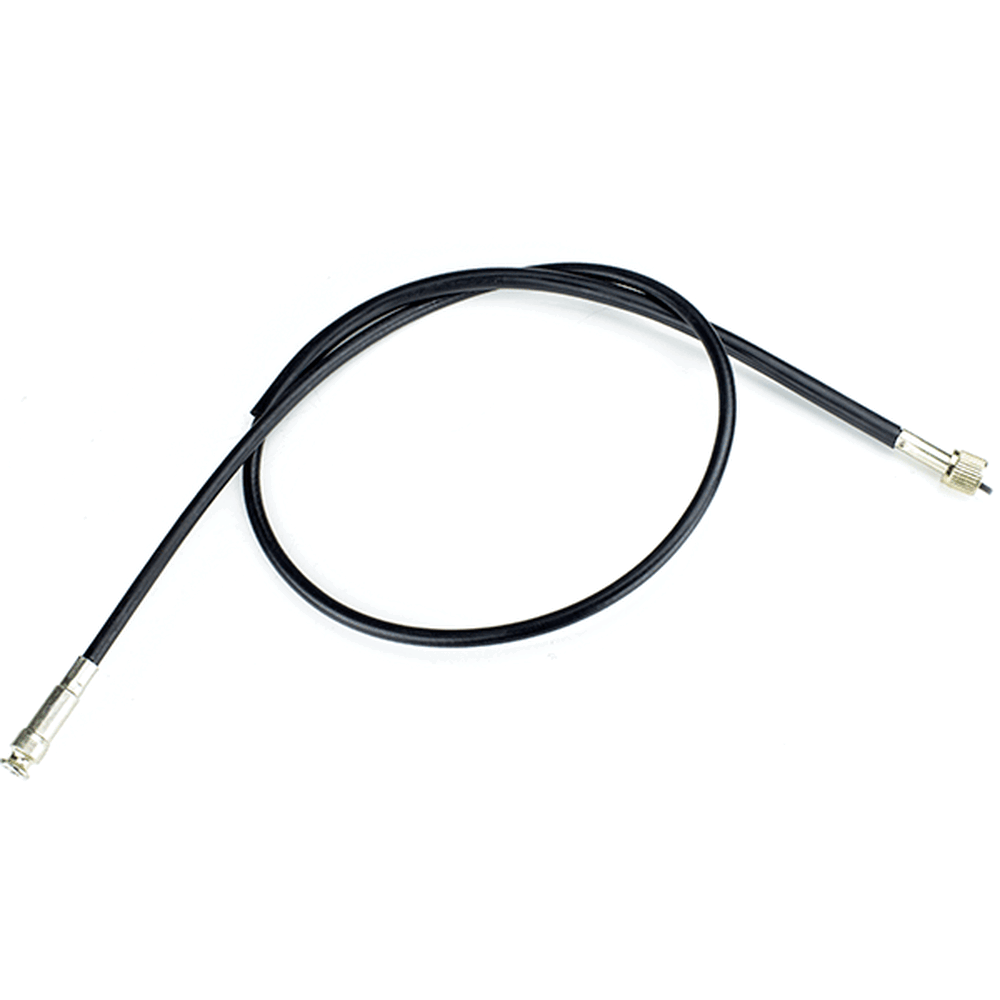

The speedo cable is a flexible, often metal, cable that transmits rotational motion from the motorcycle's front wheel or transmission to the speedometer. It consists of a core that rotates inside a protective sheath, which is connected at one end to the speedometer drive and at the other end to the speedometer itself. As the wheel or transmission turns, the cable rotates and transfers this motion to the speedometer, enabling it to display the motorcycle's speed accurately. Proper maintenance and alignment of the speedo cable are crucial for reliable and accurate speed readings.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 125cc Cruiser | |
125cc Cruiser E3 [DB125T-7] | ||
Jinlun | 125cc Cruiser Scooter [JL125T-12A] | |
Lexmoto | FMX 125 EFI [WY125T-108-E4] | View parts diagram |
FMX 125 [WY125T-108] | View parts diagram | |
Gladiator 125 | View parts diagram | |
Pulse | Strider 125 [SB125T-23A] | |
Rhon | Phantom [LH50QT-9] | |
Sanben | Gladiator 125 (06/07) [SB125T-23] | |
SB125T-23B | ||
Wangye | WY125T-23A | |
WY125T-23B | ||
Xingyue | Cobra 125 [LLX125T-11] | |
