SPCB028

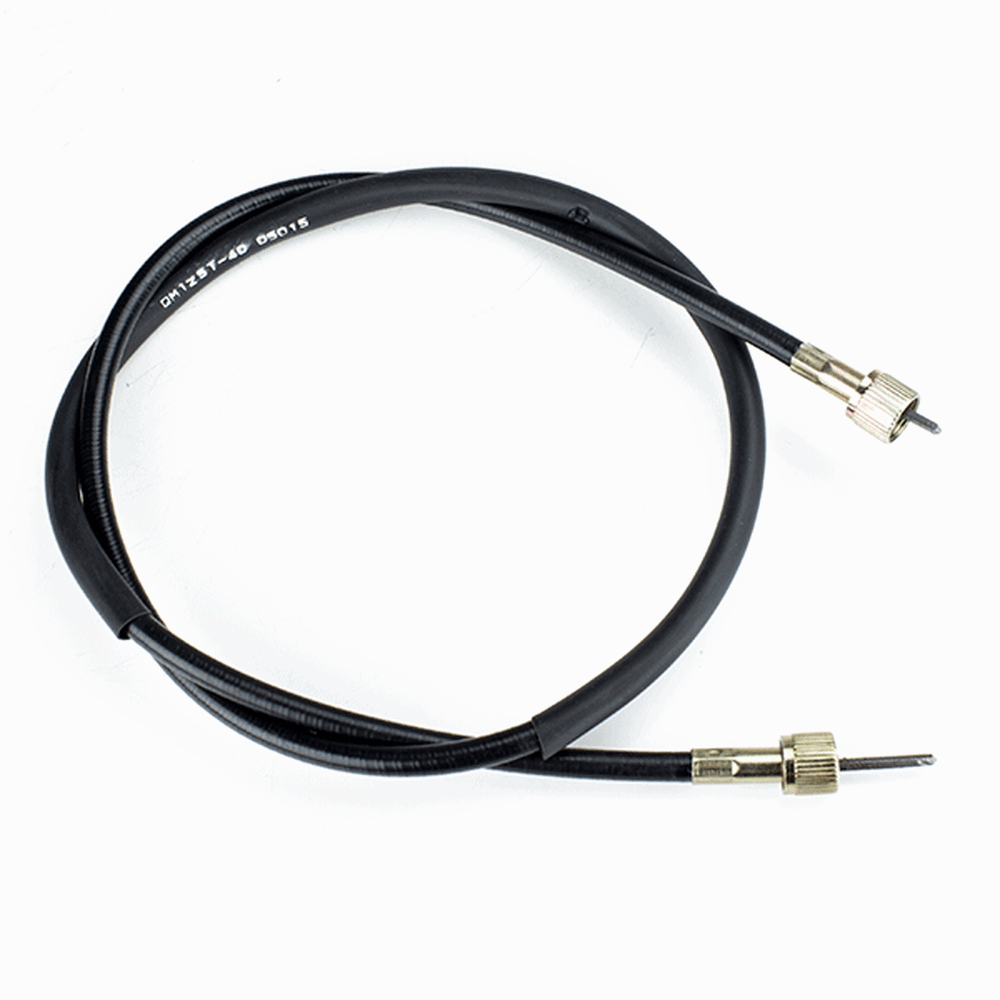

The speedo cable is a flexible, often metal, cable that transmits rotational motion from the motorcycle's front wheel or transmission to the speedometer. It consists of a core that rotates inside a protective sheath, which is connected at one end to the speedometer drive and at the other end to the speedometer itself. As the wheel or transmission turns, the cable rotates and transfers this motion to the speedometer, enabling it to display the motorcycle's speed accurately. Proper maintenance and alignment of the speedo cable are crucial for reliable and accurate speed readings.
Manufacturer | Model | Diagram |
---|---|---|
Huatian | HT50QT-16 | |
JMSTAR | JSD50QT-13 | |
Lexmoto | FMR 50 [WY50QT-58R] | |
FMR 125 EFI [WY125T-74R-E4] | View parts diagram | |
FMR 125 [WY125T-74R] | View parts diagram | |
Tornado 50 | ||
Tornado 125 | ||
Zoom II 125 | ||
Lintex | HT50QT-16 | |
Pulse | Lightspeed 2 50 [WY50QT-58] | |
Lightspeed 2 125 [WY125T-74] | ||
Rhythm 50 [SB50QT-16] | ||
Qingqi | Sport | |
Sanben | Tornado 50 [SB50QT-16(B08)] | |
Tornado 125 (06/07) [SB125-B08] | ||
Tornado 125 [SB125T-21(B08)] | ||
Zoom 125 (06/07) [SB125-B09] | ||
Zoom II 50 (2T) [SB50QT-16(B10)@] | ||
Zoom II 125 [SB125T-21(B10)] | ||
Sinnis | Stealth 125 [QM125-2D] | |
Sukida | Sportman 2 [SK125T-21-SM] | |
Superbyke | Powerband 50 | |
RSR125 | ||
Wangye | WY50QT-16 | |
WY50QT-16(B08) | ||
WY125-B08 | ||
WY125-B09 | ||
WY125T-21(B08) | ||
WY125T-21(B10) | ||
Zennco | Matrix | |
