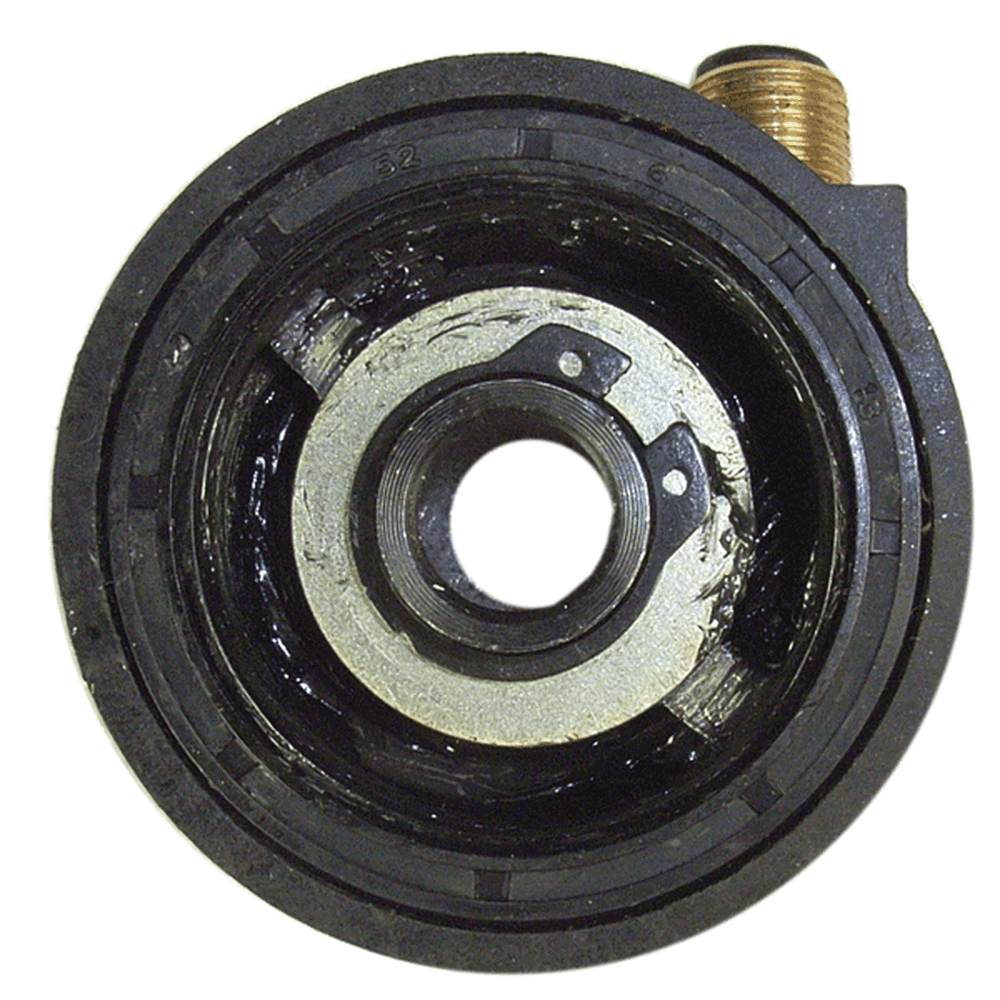

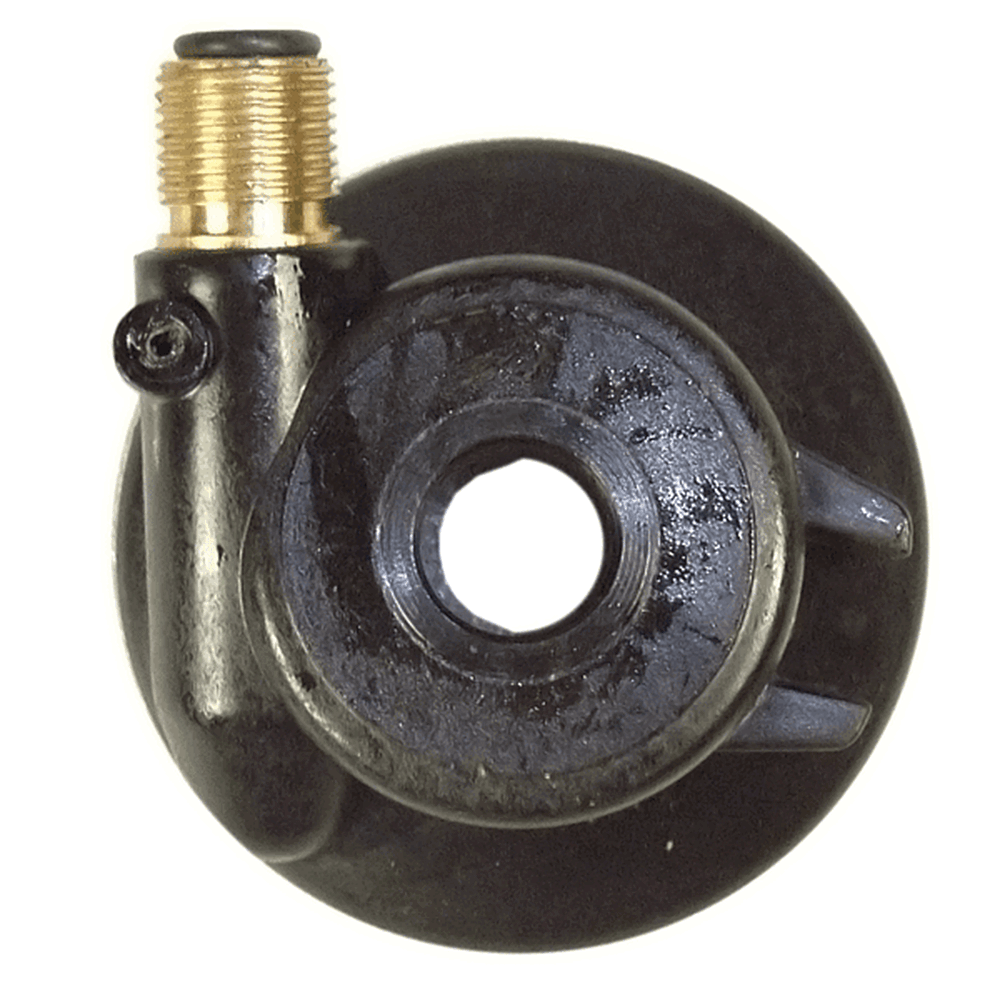

SPD012

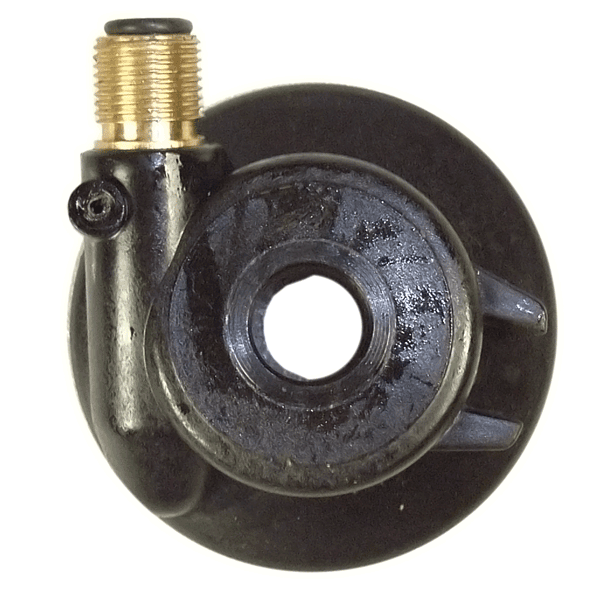

The speedo drive, also known as the speedometer drive, is a mechanical or electronic component that transmits rotational motion from the motorcycle's front wheel or transmission to the speedometer. It typically consists of a gear or sensor that is connected to the wheel hub or the transmission output shaft. As the wheel turns, the speedo drive converts this motion into a signal or movement that is sent to the speedometer, allowing it to display the motorcycle’s current speed. Proper functioning of the speedo drive is crucial for accurate speed readings and overall reliable performance of the motorcycle’s instrumentation.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 50cc Ninja E3 [DB50QT-15B] | |
50cc Scorpion E3 [DB50QT-32A] | ||
50cc Viper E3 [DB50QT-32] | ||
125cc Scorpion E3 [DB125T-32A] | ||
125cc Spyder E3 [DB125T-22] | ||
Generic | CRACKER (2T) | |
Lexmoto | FM 50 [WY50QT-111] | View parts diagram |
FMR 50 [WY50QT-58R] | ||
FMR 125 EFI [WY125T-74R-E4] | View parts diagram | |
FMR 125 [WY125T-74R] | View parts diagram | |
Flash 50 | ||
Tornado 50 | ||
Tornado 125 | ||
Zoom II 125 | ||
Longjia | LJ50QT-K (2T) | |
Pulse | Lightspeed 2 50 [WY50QT-58] | |
Lightspeed 2 125 [WY125T-74] | ||
Phantom 50 [ZN50QT-32A] | ||
Phantom 125 [ZN125T-32A] | ||
Rhythm 50 [SB50QT-16] | ||
Sanben | Tornado 50 [SB50QT-16(B08)] | |
Tornado 125 (06/07) [SB125-B08] | ||
Tornado 125 [SB125T-21(B08)] | ||
Zoom 125 (06/07) [SB125-B09] | ||
Zoom II 50 (2T) [SB50QT-16(B10)@] | ||
Zoom II 125 [SB125T-21(B10)] | ||
Sinnis | Harrier 125 [ZN125T-22(SINNIS)] | |
Superbyke | Powerband 50 | |
Wangye | WY50QT-16 | |
WY50QT-16(B08) | ||
WY125-B08 | ||
WY125-B09 | ||
WY125T-21(B08) | ||
WY125T-21(B10) | ||
Zennco | Matrix | |
Znen | Flash 50 [ZN50QT-15A] | |
ZN125T-22 | ||
