SPND042"Another great Axle"
The wheel spindle, also known as the wheel axle, is a critical component that supports and secures the motorcycle wheel to the fork or swingarm. It passes through the center of the wheel hub and is mounted to the motorcycle's frame or suspension components. The spindle allows the wheel to rotate smoothly while maintaining proper alignment and stability. It is typically made from high-strength materials like steel or aluminum to withstand the stresses and loads experienced during riding. Proper installation and maintenance of the wheel spindle are essential for safe and efficient motorcycle operation.

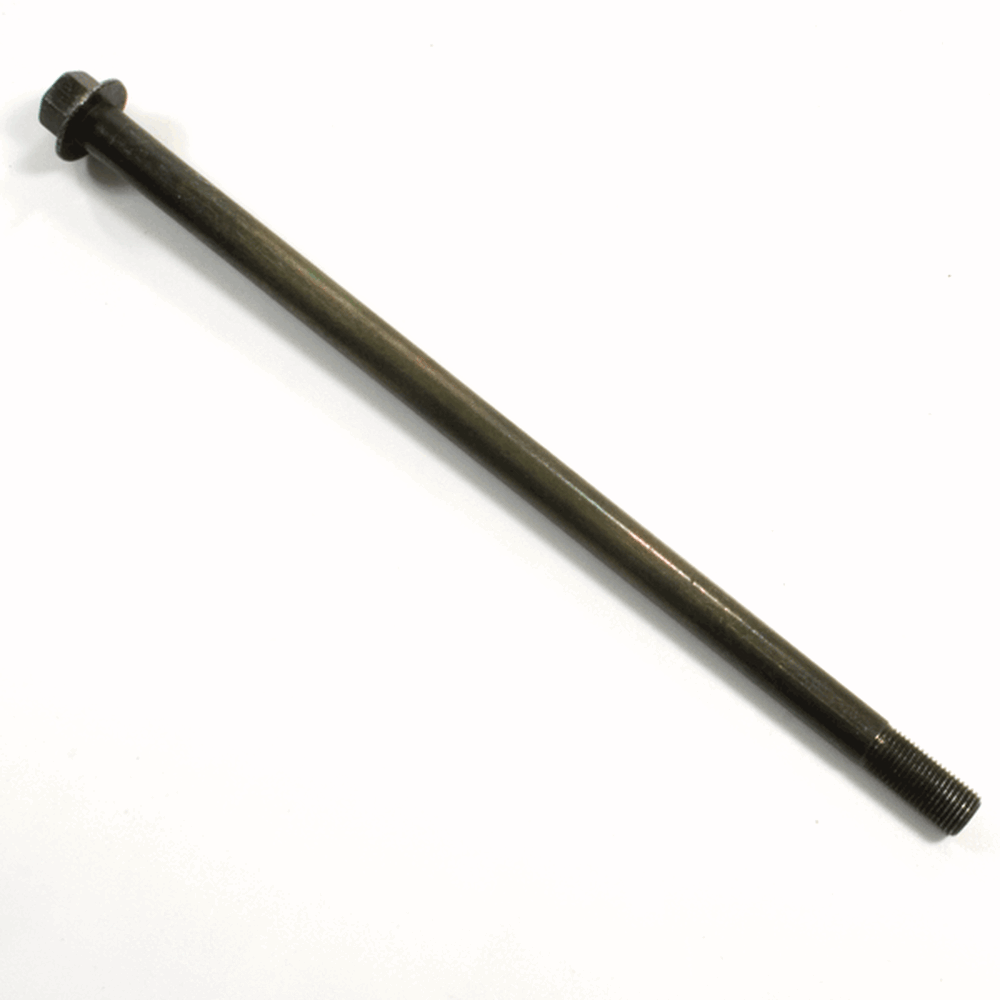

Please note the colour of the bolt may differ from the image.
| Manufacturer | Model | Diagram |
|---|---|---|
| AJS | Modena 50 [ZN50QT-27] | |
| Modena 125 [ZN125T-27] | ||
| Direct Bikes | 50cc Tommy E3 [DB50QT-E] | |
| 125cc Classic | ||
| 125cc Tommy E3 | ||
| Jinlun | 125cc Tommy Scooter E3 | |
| Jonway | Adventure 125 [YY125T-12] | |
| Lexmoto | FMX 125 [WY125T-108] | View parts diagram |
| Firenze 125 | ||
| Lowride 125 [DFE125L] | ||
| Milano 50 [FT50QT-27] | View parts diagram | |
| Milano 125 EFI [FT125T-27-E4] | View parts diagram | |
| Milano 125 [FT125T-27] | View parts diagram | |
| Tommy 50 [ZN50QT-E] | ||
| Tommy 125 E3 | ||
| Valencia 50 [ZN50QT-K] | View parts diagram | |
| Valencia 125 [ZN125T-K] | View parts diagram | |
| Verona 125 [WY125T-41] | View parts diagram | |
| Lifan | LF125T-6 | |
| Pulse | Vijo 125 [HT125T-9] | |
| Sinnis | Spirit 125 [ZN125T-E-S] | |
| Vista [QM125-2C] | ||
| Skygo | Commander | |
| Superbyke | SMAX 125 | |
| Tamoretti | Retro 50 | |
| Retro 125 E3 | ||
| Znen | Firenze 125 [ZN125T-F] | |
| Tommy 125 E3 [ZN125T-E] | ||
| ZN50QT-E | ||
