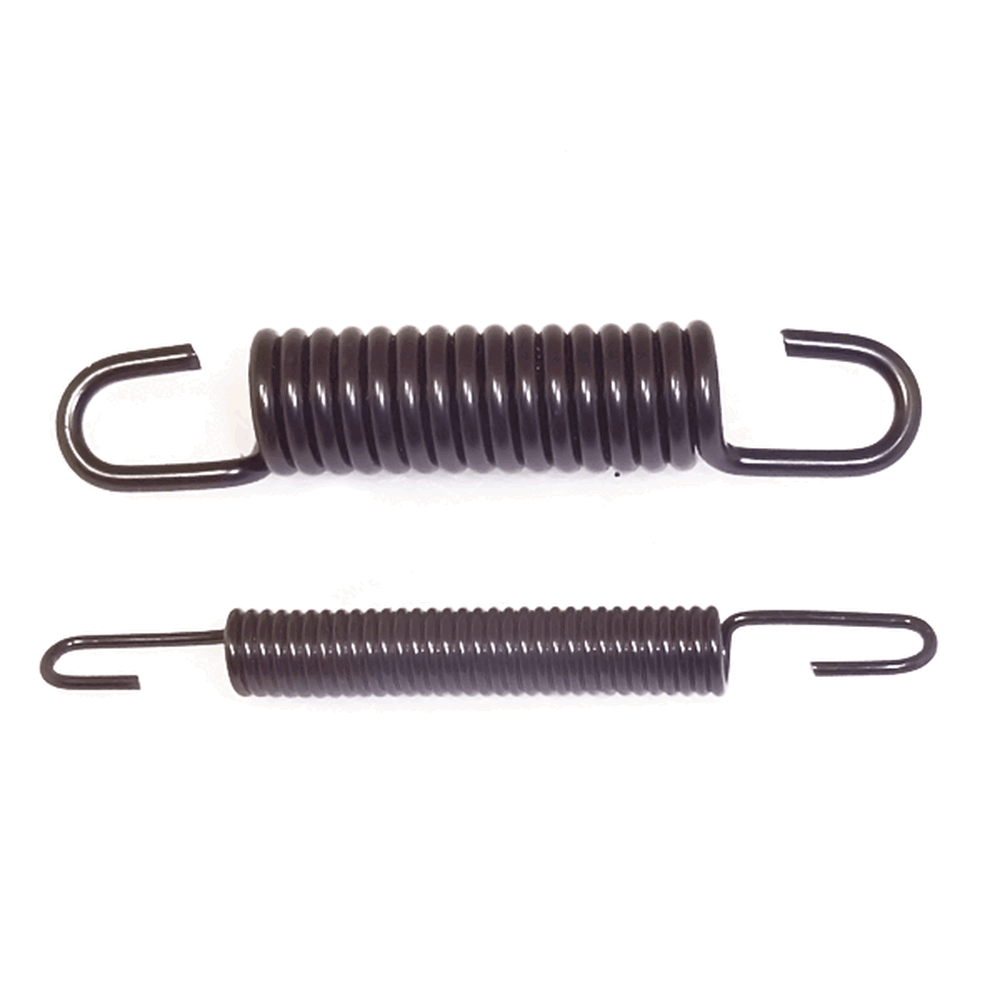

SPNG014
In drum brakes, the spring helps return the brake shoes or pads to their resting position after the brake lever or pedal is released, ensuring that the brakes disengage completely.
Manufacturer | Model | Diagram |
---|---|---|
Baotian | Tommy 50 [BT49QT-11] | |
Direct Bikes | 50cc Retro | |
50cc Scorpion E3 [DB50QT-32A] | ||
50cc Sports | ||
50cc Viper E3 [DB50QT-32] | ||
125cc Cruiser E3 [DB125T-7H] | ||
125cc Scorpion E3 [DB125T-32A] | ||
125cc Viper E3 [DB125T-32] | ||
Keeway | HURRICANE 50 (2T) | |

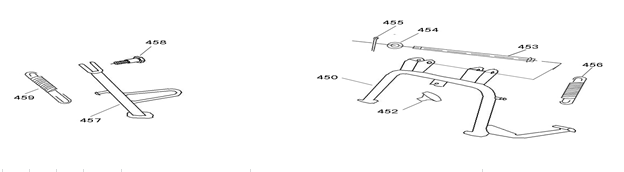

Lexmoto | FMS 125 [ZN125T-7H] | View parts diagram |
Tommy 50 | ||
Pulse | Phantom 50 [ZN50QT-32A] | |
Phantom 125 [ZN125T-32A] | ||
Recto | Retro | |
Sinnis | Shuttle 125 [ZN125T-7H(SINNIS)] | |
Znen | Speedy Streetfighter | |
Tommy 50 [ZN50QT-A] | ||
ZN50QT-11 | ||
