SPNG054

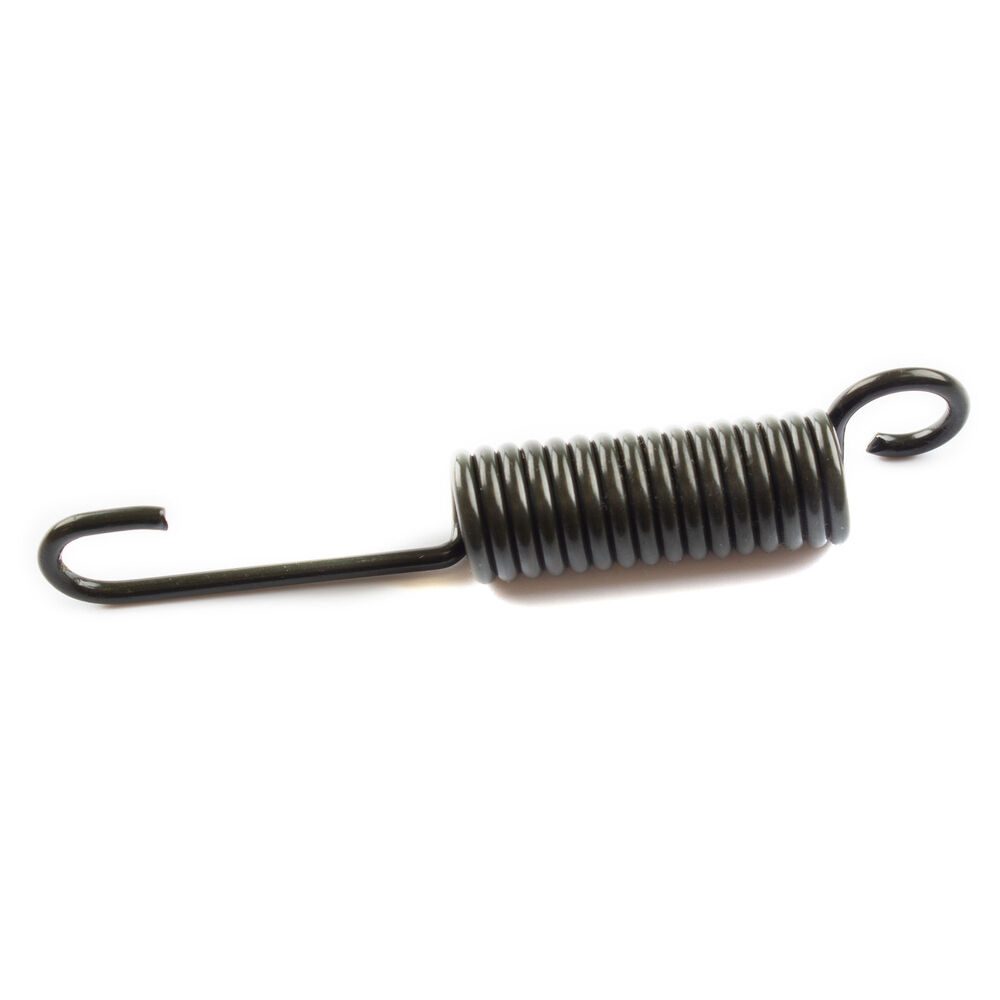

In drum brakes, the spring helps return the brake shoes or pads to their resting position after the brake lever or pedal is released, ensuring that the brakes disengage completely.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 125cc Cruiser | |
Jinlun | 125cc Cruiser Scooter [JL125T-12A] | |
Lexmoto | FMR 50 [WY50QT-58R] | |
FMR 125 EFI [WY125T-74R-E4] | View parts diagram | |
FMR 125 [WY125T-74R] | View parts diagram | |
Gladiator 125 | View parts diagram | |
Tornado 50 | ||
Vienna 50 [WY50QT-110] | View parts diagram | |
Vienna 125 EFI [WY125T-121-E4] | View parts diagram | |
Vienna 125 [WY125T-121] | View parts diagram | |
Pulse | Lightspeed 2 50 [WY50QT-58] | |
Lightspeed 2 125 [WY125T-74] | ||
Strider 125 [SB125T-23A] | ||
Sanben | Gladiator 125 (06/07) [SB125T-23] | |
SB125T-23B | ||
Tornado 50 [SB50QT-16(B08)] | ||
Wangye | WY50QT-16(B08) | |
WY125T-23A | ||
WY125T-23B | ||
