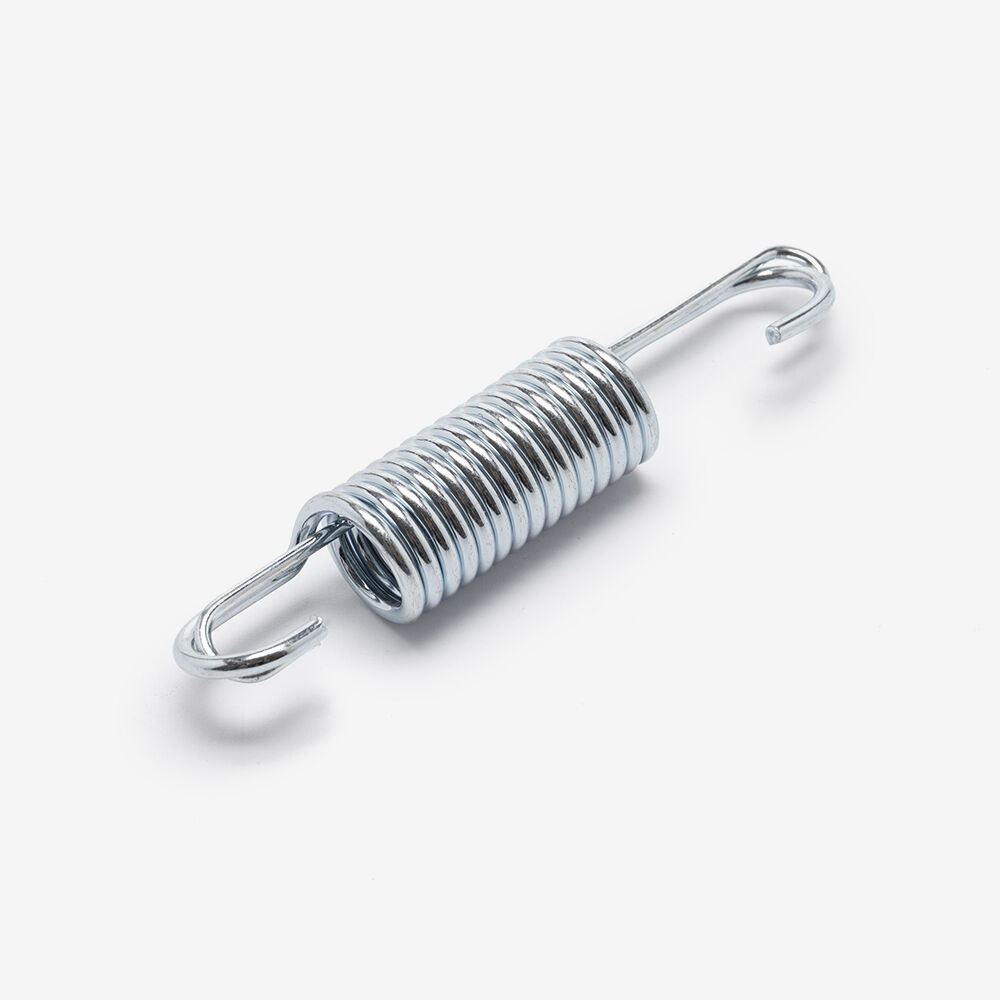

SPNG287
In drum brakes, the spring helps return the brake shoes or pads to their resting position after the brake lever or pedal is released, ensuring that the brakes disengage completely.
Manufacturer | Model | Diagram |
---|---|---|
Talaria | MX5 (Sting Pro) [TL5500] | View parts diagram |
Sting Offroad [TL3000] | View parts diagram | |
Sting R Road Legal [TL50] | View parts diagram | |
Sting R [TL60] | View parts diagram | |
Sting R [TL4000] | View parts diagram | |
Sting Road Legal [TL45] | View parts diagram | |
X3 MX [TL2500] | View parts diagram | |
X3 Road Legal [TL25] | View parts diagram | |
