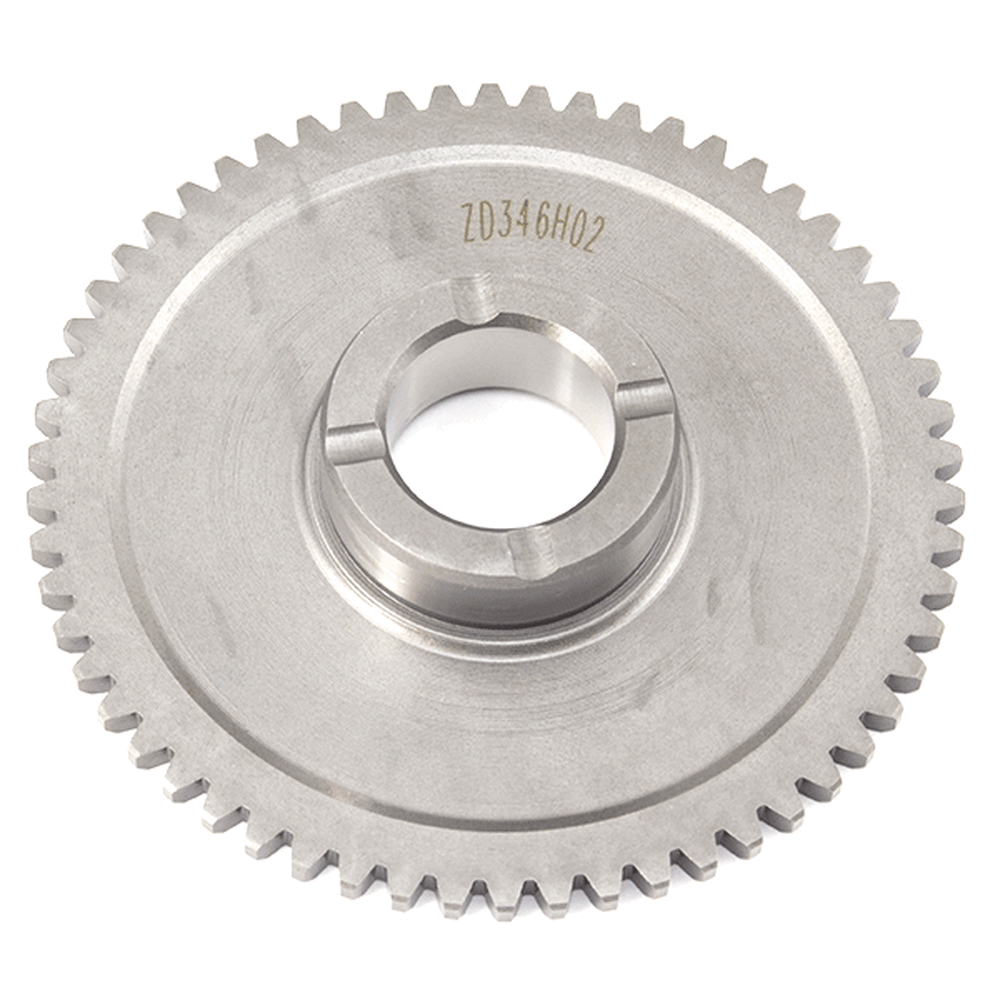

STC020
The starter clutch, also known as the one-way clutch or starter drive, is a component in a motorcycle's starting system that allows the starter motor to crank the engine and then disengages once the engine starts. It consists of a set of gears or rollers that engage with the engine's flywheel or crankshaft to turn the engine over. Once the engine starts and reaches a certain speed, the starter clutch disengages to prevent the starter motor from turning with the engine. This component ensures smooth engine start-up and prevents potential damage to the starter motor.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
LS-Z Euro 5 [ZS125-39-E5] | View parts diagram | |
LXR 125 Euro 5 [SY125-10-E5] | View parts diagram | |
LXR 125 [SY125-10] | View parts diagram | |
LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
LXR SE 125 [SY125-10-SE] | View parts diagram | |
LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
RSS 125 Euro 5 [TR125-3-E5] | View parts diagram | |
RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
Tempest 125 Euro 5 [LJ125-9A-E5] | ||
Tempest 125 [LJ125-9A] | View parts diagram | |
Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
Mitt | MITT 125 GP 2 [MITT125GP2] | |
MITT 125 GP [MITT125GP] | ||
Romet | SCMB 125 [SCMB125] | |
Z-One S 125 [ZONES125] | ||
Z-One T 125 [ZONET125] | ||
Sinnis | RSX 125 [ZS125-80] | |
Terrain T125 [ZS125-86(T125)] | ||
Taro | TR125-3 | |
Zongshen | ZS125-39 | |
